What is a “slot loading” design in Heim joints?

A slot loading design, or “loader slot,” features a specific notch machined into the housing or race to allow the ball to be inserted and then rotated into position. This construction allows for a high-strength, metal-on-metal fit without deforming the housing during assembly. It is the preferred choice for heavy-duty industrial and agricultural applications requiring maximum radial load capacity.

What is a “self-lubricating” rod end?

A self-lubricating rod end is a maintenance-free joint that uses a low-friction liner—typically PTFE (Teflon)—between the ball and the race. This eliminates the need for external grease. As the joint moves, a microscopic film of PTFE is transferred to the ball, providing a continuous, slick surface that resists debris and operates efficiently from -65°F to +325°F.

2-piece vs. 3-piece rod ends: which design is better?

The primary difference between 2-piece and 3-piece rod ends is the presence of a separate race. 2-piece joints are swaged directly around the ball and are typically used in industrial or budget applications. 3-piece joints utilize a separate race, allowing for tighter tolerances and the inclusion of a PTFE liner, making them the superior choice for high-performance racing and steering.

Single shear vs. double shear mounting explained

Single shear and double shear refer to how the mounting bolt is supported. In single shear, the bolt is supported on one side only, creating a bending force on the fastener. In double shear, the joint is captured between two brackets, supporting the bolt on both sides. Double shear is the gold standard for safety because it eliminates bolt bending and effectively doubles the shear strength.

Understanding articulation and spherical bearing motion

Articulation in a rod end refers to the ball’s ability to rotate and tilt within the housing. While standard bearings only allow for rotation on a single plane, a spherical bearing allows for three degrees of freedom. This multi-axis motion is what prevents a suspension link from binding as the axle moves through its vertical and torsional travel.

The engineer’s guide to right-hand (RH) and left-hand (LH) threads

Right-Hand (RH) and Left-Hand (LH) threads are used on opposite ends of a suspension link to create a “turnbuckle” effect. This allows the user to adjust the link length by simply rotating the center tube, without removing the rod ends from the vehicle. This is the standard method for adjusting toe, centering steering wheels, and setting pinion angles.

Anatomy of a rod end: understanding the housing, ball, and race

Rod end bearing anatomy diagram showing housing ball and race

A high-performance rod end consists of three primary components: a threaded housing (the body), a spherical ball, and an internal race. In 3-piece designs, a PTFE liner is often bonded to the race. The quality of these materials—such as 4130 Chromoly for the housing and 52100 steel for the ball—determines the joint’s total load capacity and fatigue life.

Heim joint vs. Rod end vs. Rose joint: clearing the confusion

Infographic comparing Heim Joint, Rod End, and Rose Joint bearings. Shows simplified rod-end bearing diagrams, origin (USA, UK, ISO/ANSI), common usage, component labels (ball, race, shank), key function, and typical industrial applications.

There is no mechanical difference between a Heim joint, a Rose joint, and a rod end; they all refer to a spherical bearing housed in a threaded shank. The terms are largely regional: “Heim joint” is the standard term in North America, “Rose joint” is preferred in the UK and Europe, and “rod end” is the universal engineering designation used in technical catalogs.

Understanding misalignment angle and why it matters

The misalignment angle is the total degree of tilt a rod end ball can achieve before its shank or the mounting bolt interferes with the housing. This limit determines how much suspension articulation your vehicle can handle before the joint “binds,” which can lead to snapped bolts or cracked housings in long-travel setups.

What exactly is a Heim joint?

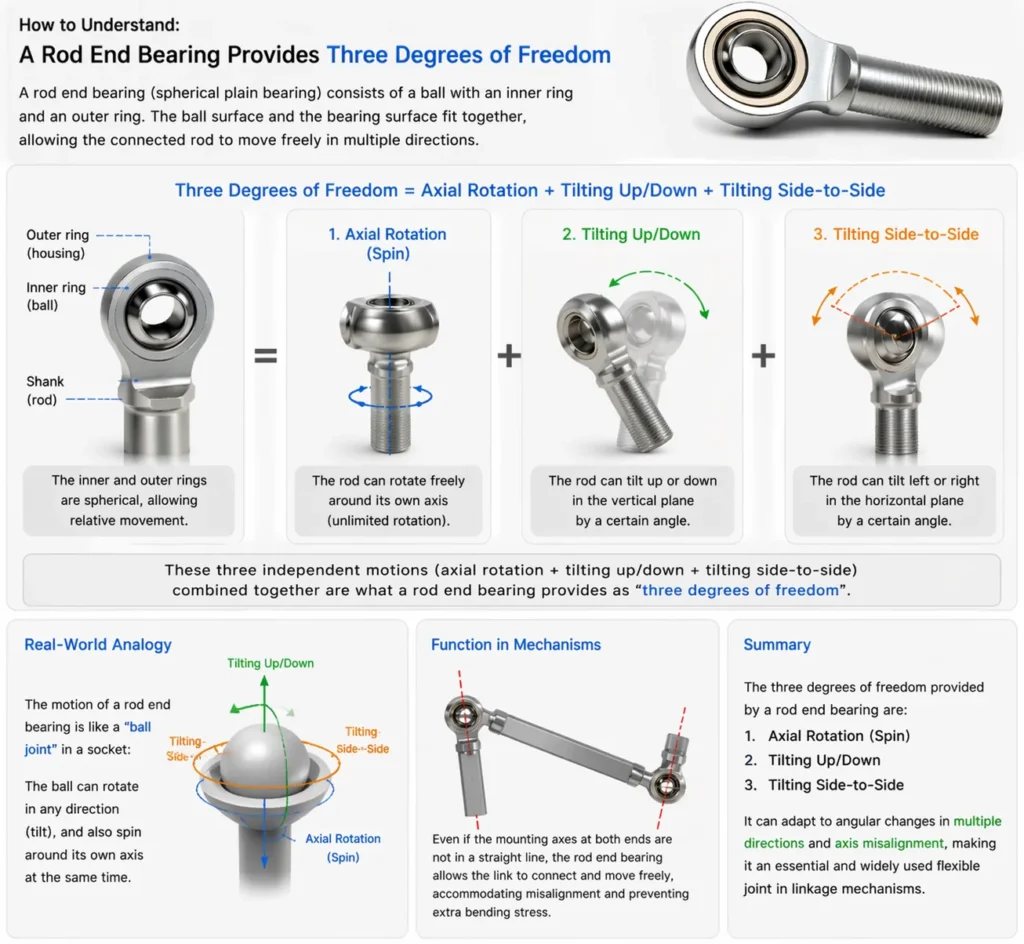

Diagram showing how a rod end bearing provides three degrees of freedom

A Heim joint, or spherical rod end, is a specialized mechanical joint that allows for controlled rotational movement and angular misalignment across multiple planes. Originally developed for aircraft control systems, it consists of a spherical ball captured within a housing, providing a low-friction, zero-deflection pivot point for suspension, steering, and industrial linkages.

How Radius Rods Are Made?

radius-rod-factory-feature-14

Radius rod quality is determined long before it ships — by material grade, tube production method, CNC bore tolerance, and welding technique. Here’s what those manufacturing decisions actually mean.
