Factory Direct Manufacturer

UTV Radius Rods & Radius Rod Kits Manufacturer

OEM Replacement & Custom Radius Rod Solutions for Polaris RZR, Can-Am Maverick X3 & More. Factory-direct supply — stronger than OEM, trusted by off-road brands worldwide.

Years Manufacturing

0 +

Stronger Than OEM

0 %

Models In-Stock

In-Stock · Ready to Ship

Shop Radius Rod Kits by Model

Select your UTV model below. All kits are direct-fit replacements — bolt-on installation, no modification required.

Don’t see your model? Request a custom radius rod kit →

Can-Am

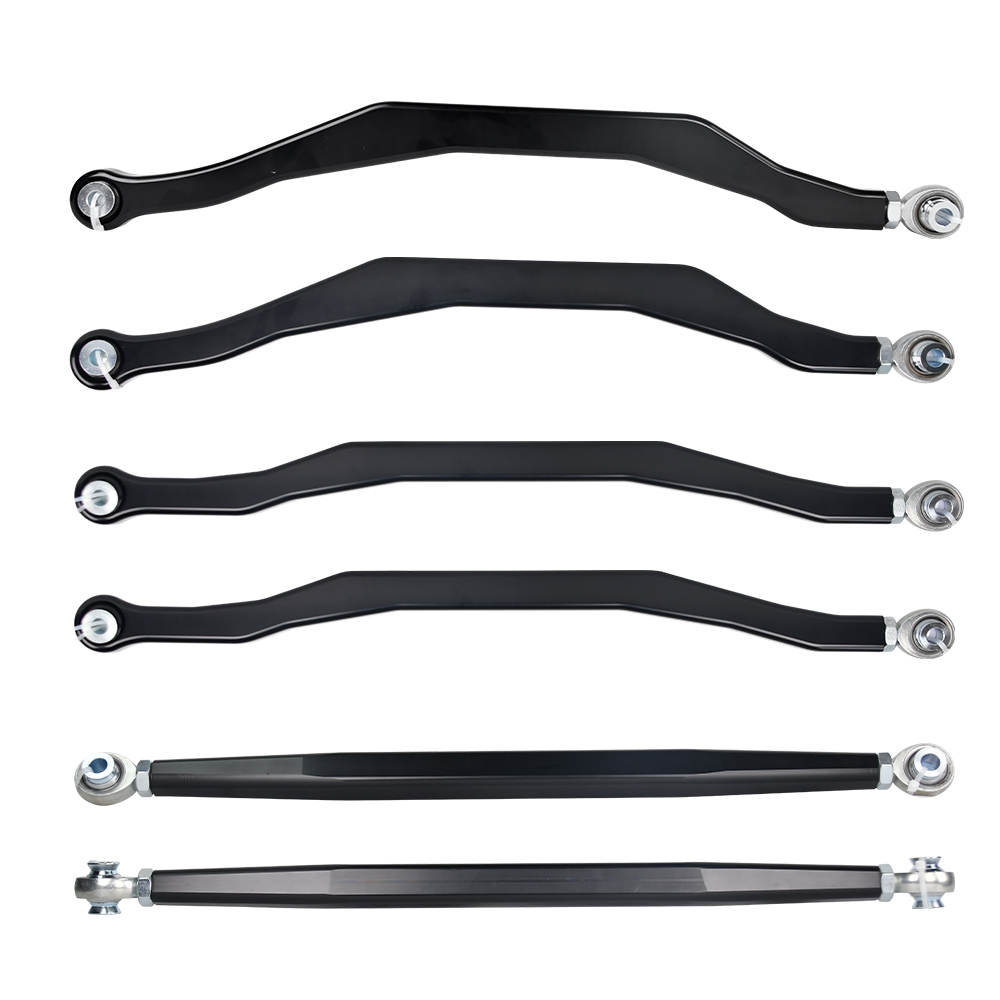

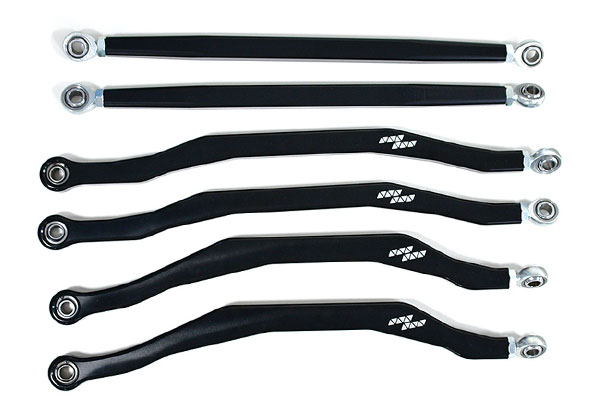

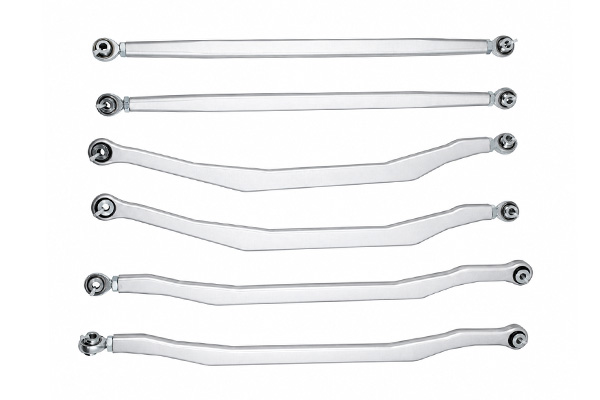

Maverick X3 Radius Rod Kit — 72"

Can-Am

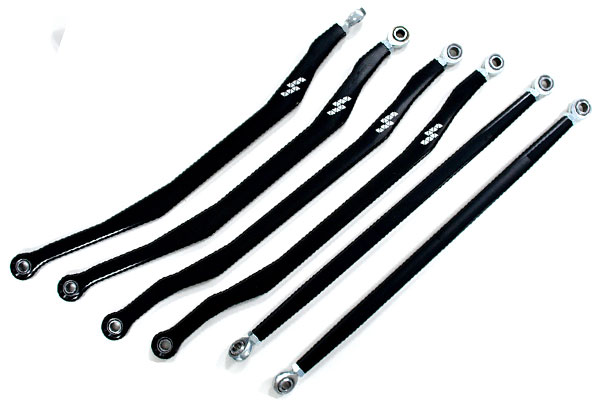

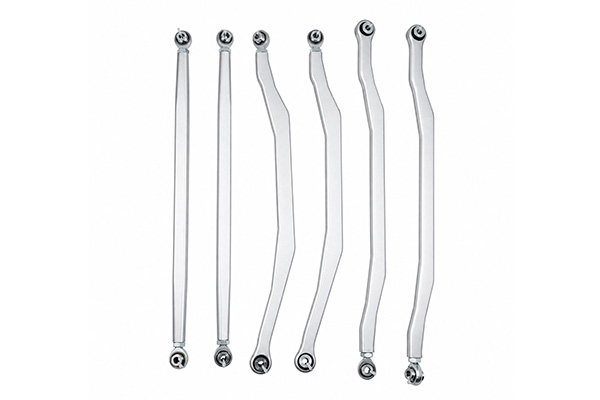

Maverick X3 Radius Rod Kit — 64"

polaris

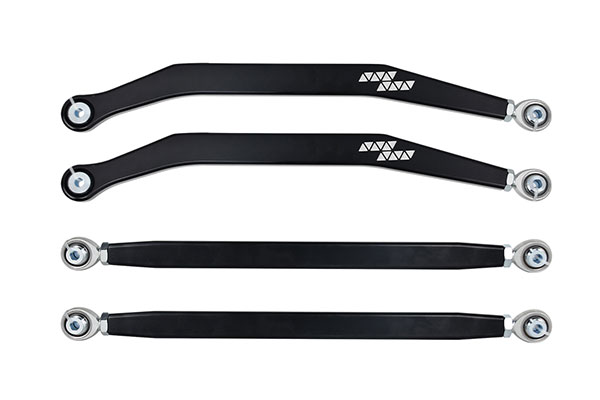

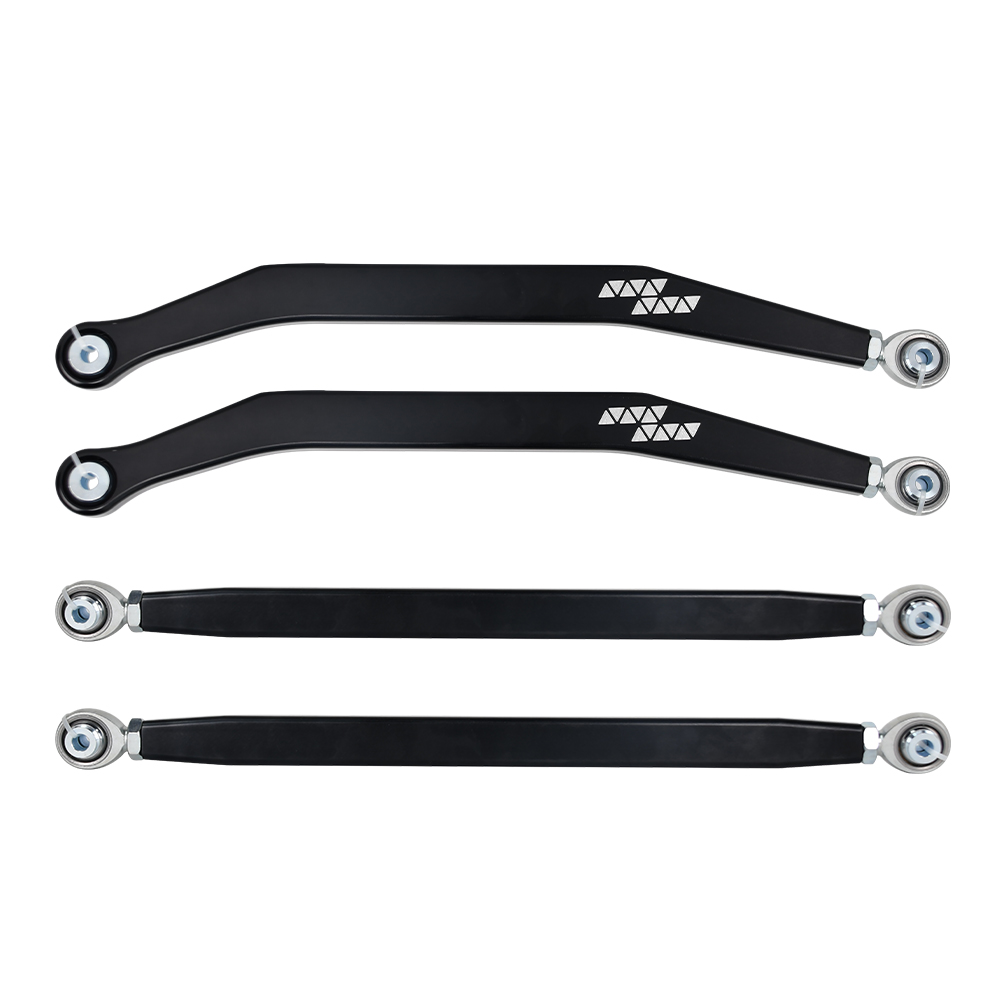

RZR XP 1000 Radius Rod Kit

polaris

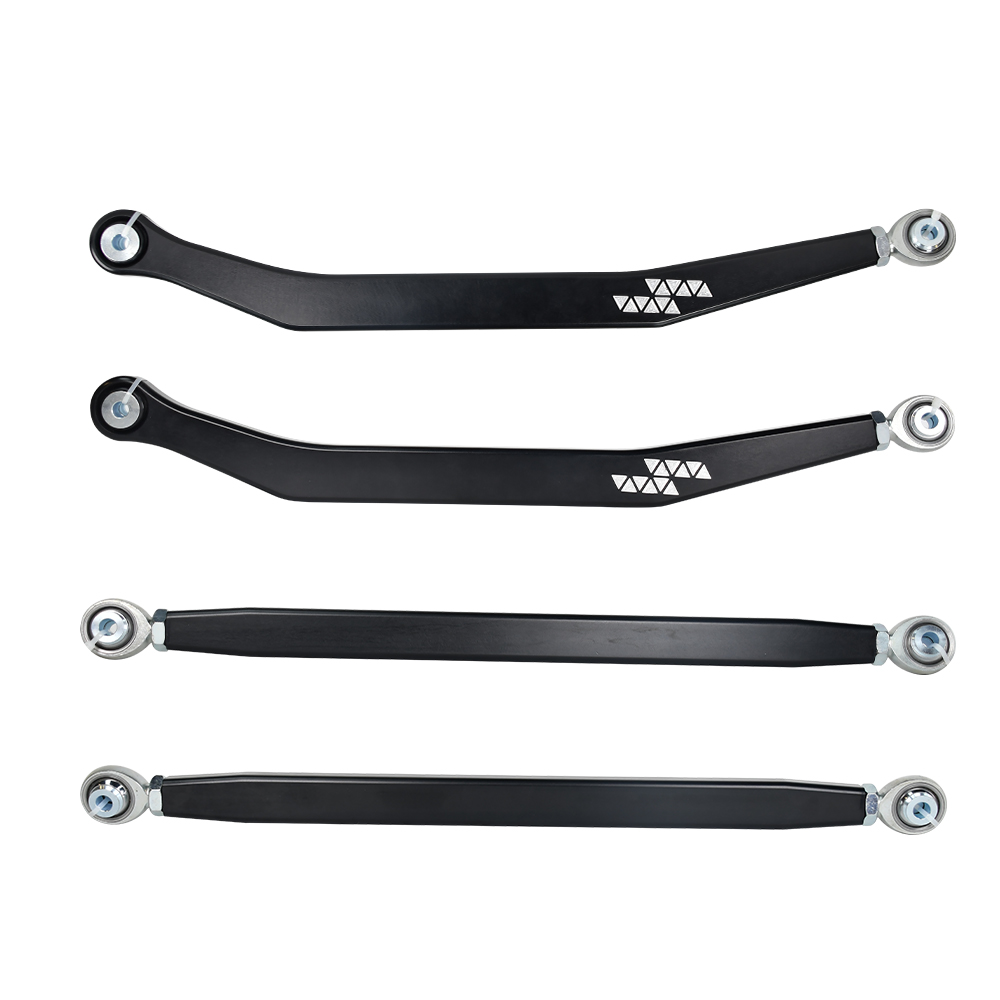

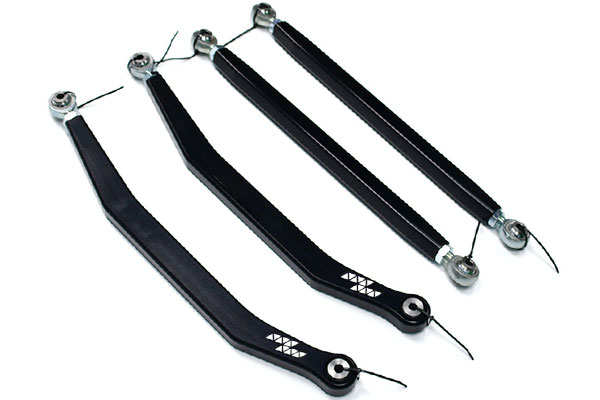

RZR PRO XP Radius Rod Kit

polaris

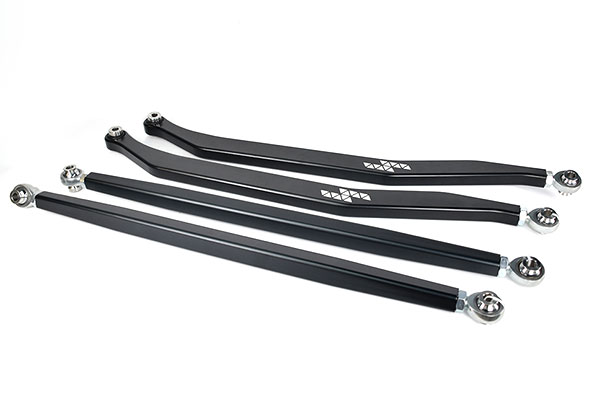

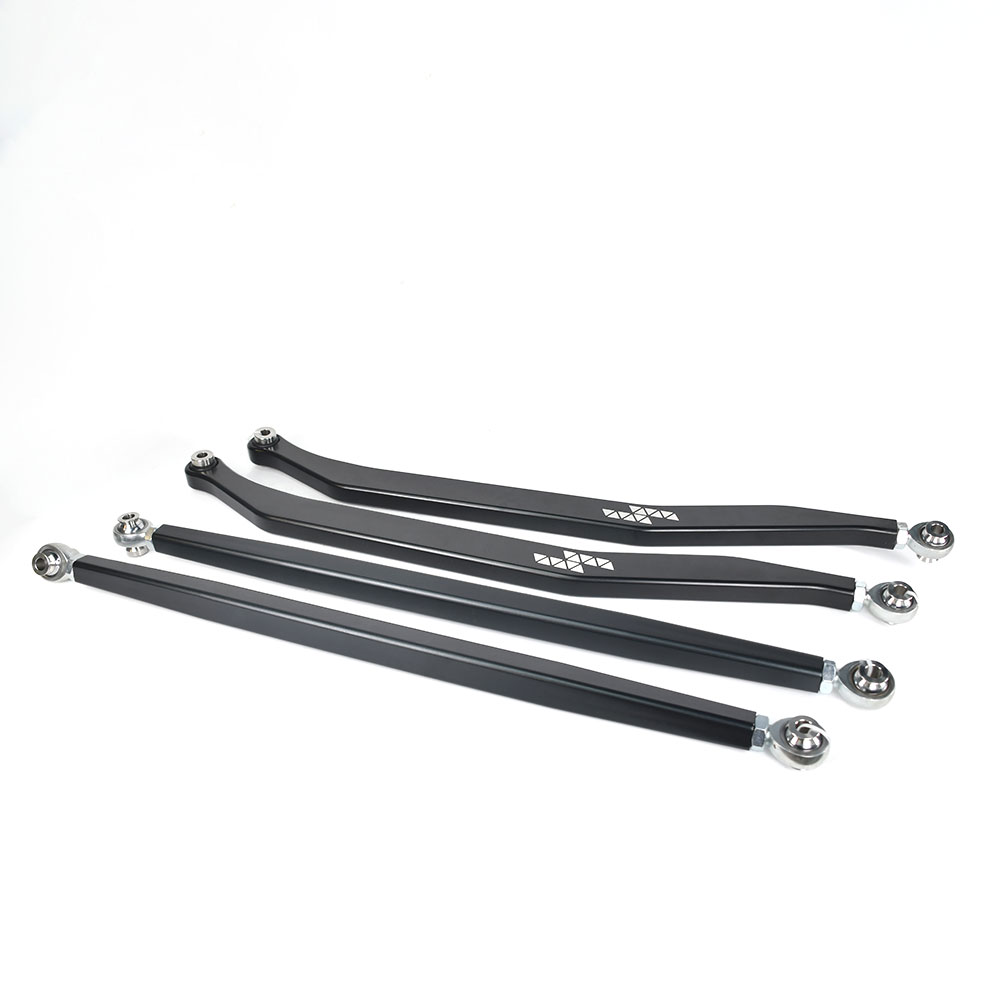

RZR Turbo S Radius Rod Kit

Technical Guide

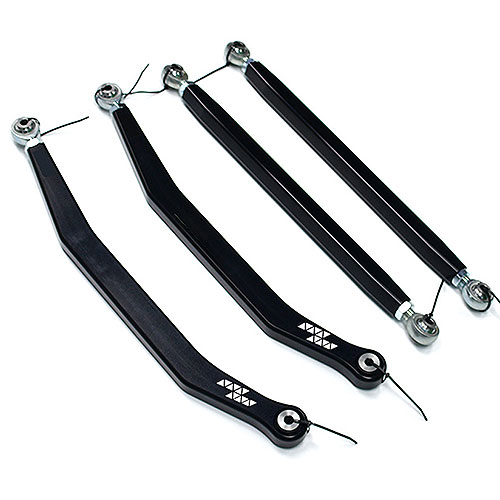

What Are Radius Rods on a UTV?

Radius rods are critical rear suspension components on UTVs. They connect the chassis to the rear hub assembly, helping maintain wheel alignment, control axle movement, and stabilize the vehicle during off-road driving.When radius rods bend or fail under aggressive off-road conditions, they directly affect rear wheel alignment and overall vehicle control. Upgrading to heavy-duty radius rods improves strength, durability, and vehicle stability across trail riding, desert terrain, and racing environments.

Maintains Rear Wheel Alignment

Keeps your rear wheels properly positioned for stable handling and even tire wear.

Controls Axle Movement

Limits fore-aft movement of the rear axle during suspension travel and braking.

Stabilizes Under Impact

Absorbs and transfers forces from rocks, jumps, and rough terrain to protect the chassis.

Why It Matters

Why Upgrade? Why Choose SYZ?

OEM radius rods are engineered for general use — not for the demands of aggressive off-road riding. Here’s the difference.

OEM Limitations

Limited strength under heavy loads

Factory rods are designed for everyday use — they bend and fail under aggressive conditions like desert racing or rock crawling.

Accelerated wear in rough terrain

Stock bushings and end joints wear out faster when subjected to repeated impacts and heavy off-road use.

Reduced rear stability at high speed

Flex in OEM rods causes rear-end instability during high-speed desert and trail runs.

SYZ Advantage

Stronger than OEM — guaranteed

Billet aluminum and chromoly steel options provide higher tensile strength than factory components, without bending or failure.

Factory direct — no dealer markup

Buy directly from the manufacturer. No middlemen, no inflated prices. Same supply chain trusted by OEM and aftermarket brands.

Custom solutions for any platform

Engineering support available for OEM, aftermarket brands, and bulk orders. Any UTV model. Any specification.

Side by Side

OEM Radius Rods vs SYZ Heavy-Duty

The real difference isn’t the brand name on the box. It’s what the rod is made of, how it’s built, and whether it holds when you hit something hard.

Feature

OEM Radius Rods

SYZMachine Radius Rods

Construction

Hollow thin-walled tubing — bends under lateral load

Solid billet machined / heavy-wall construction — resists bending and deformation

Material

Commercial grade steel or low-spec aluminum extrusion

Aircraft-grade 7075-T6 billet aluminum or 4130 Chromoly steel

Yield Strength

Low (Prone to permanent bending under impact)

High (Resists deformation)

End Joints

Sealed rubber bushings — non-serviceable, degrades and fails over time

SYZ JMX or XM Series heim joints — precision alignment, fully replaceable, matched to application

Geometry

Straight OEM profile — limited ground clearance

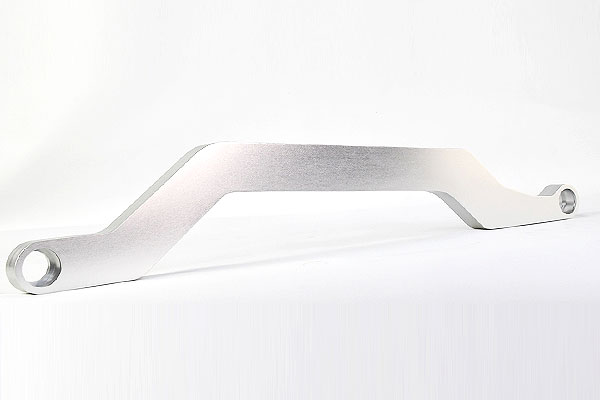

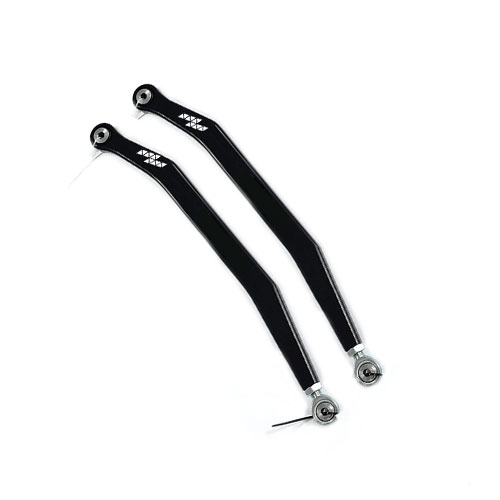

High-clearance design available — better obstacle clearance, maintains OEM geometry

Surface Finish

Basic paint or bare aluminum — chips, corrodes

Type II and Type III hard anodize — durable, corrosion resistant, color options

Serviceability

Replace entire assembly when joints wear — expensive

Replace rod ends only — field-serviceable, lower long-term cost

Custom Options

Fixed spec — no customization possible

Any length, material, finish, thread spec — engineered to your requirements

SYZ Machine has manufactured precision suspension components for over 26 years. Our radius rod production capability spans the full spectrum — from standard OEM replacements to fully engineered custom designs for racing and performance applications.

Whether you need 10 sets for a performance brand launch or 5,000 sets for OEM supply, our factory supports your requirements with consistent quality and reliable lead times.

What We Can Do For You

Materials Options

Surface Treatment

Design Types

Thread & End Options

Production Volume

Applications

B2B Manufacturing

Radius Rod Manufacturing Capabilities

We manufacture any high-performance radius rod to your specification. Below is what our factory can produce.

Technical Specifications

Product Specifications

Standard specifications for SYZ high-clearance radius rod kits. Custom material, finish, and configuration available for OEM orders.

Parameter

Specification

Body Material

7075-T6 Billet Aluminum / 4130 Chromoly Steel (option)

Construction

Solid billet machined — Resists bending under lateral load.

End Joints

SYZ JMX Series (3-piece construction, performance & higher-load builds) / SYZ XM Series (lader slot design, OEM replacement) / Spherical bushing (option)

Thread Spec

Metric or Imperial — matched to OEM spec per vehicle model

Surface Finish

Type II Anodize / Polishing / Type II Anodize (optional)

Color Options

Black anodize / Clear anodize / Custom color (OEM orders)

Design Type

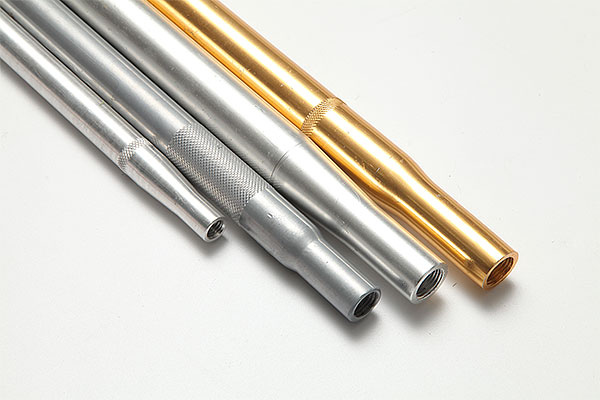

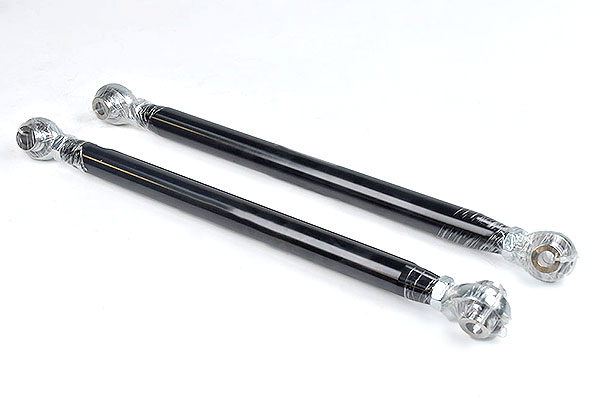

Standard OEM replacement / High clearance / Swedge-end / Tubed

Kit Contents

Radius Rods + Rod ends + Hardware (complete bolt-on kit)

Packaging

Individual poly bag + branded carton box

Logo / Branding

Customer logo available for qty over 10 sets

Lead Time — In-Stock

Ships within 1–3 business days

Lead Time — Custom

Sample: 7–14 days · Bulk production: 25–35 days

From Your Drawing to Bulk Production

A clear, fast process for OEM brands, aftermarket companies, and bulk buyers. Here’s exactly what happens after you reach out.

Submit Drawing or Sample

Send your technical drawing (DXF/PDF/STEP), a physical sample, or detailed measurements. No drawing? Our team can work from a reference OEM part.

Engineering Review

We review specs, recommend material grade and design optimizations, and issue a detailed quotation with all technical parameters confirmed in writing.

Prototyping & Approval

1–3 sample units produced for your physical inspection and fitment testing. Design revisions supported at no extra charge until you approve.

Bulk Production

Full production run with 100% QC inspection, QC report, custom packaging, and branded labeling. Stable capacity for consistent repeat orders.

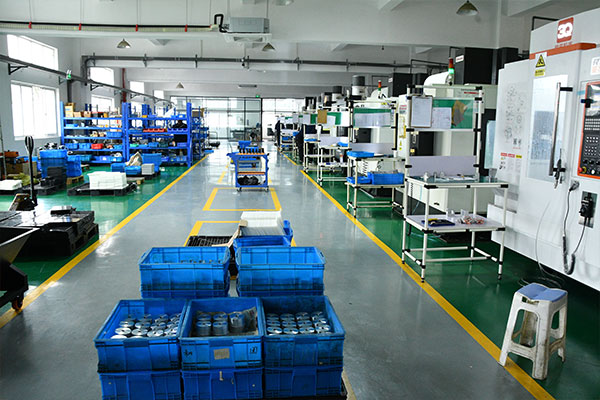

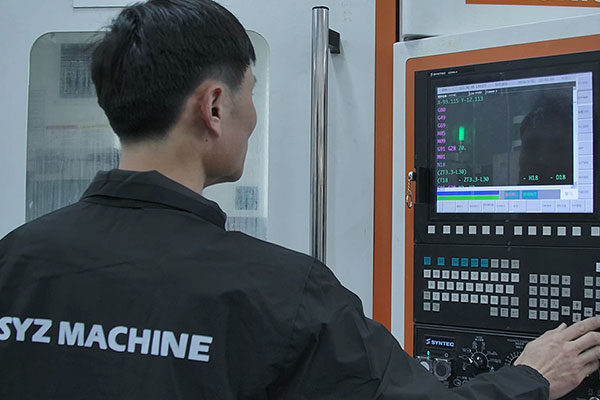

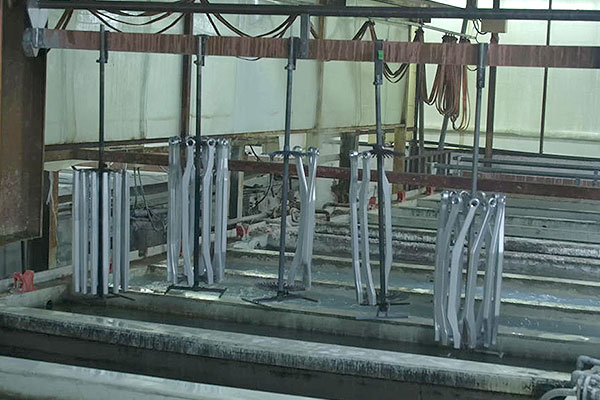

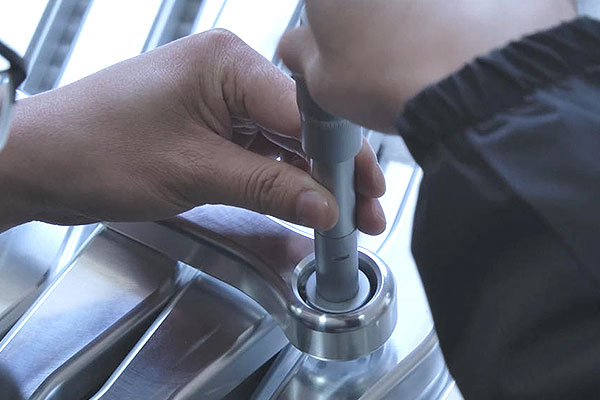

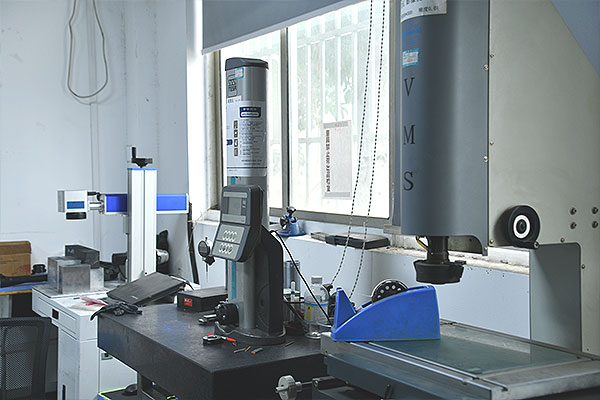

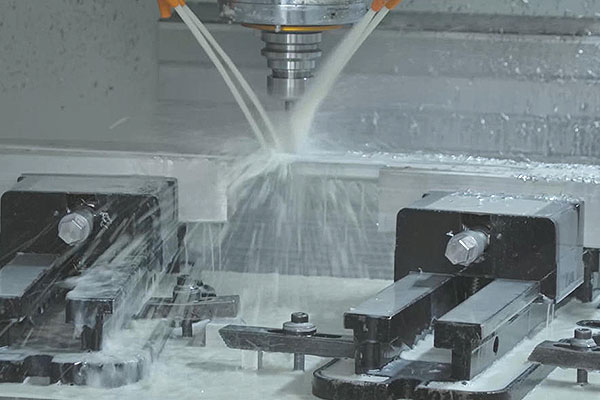

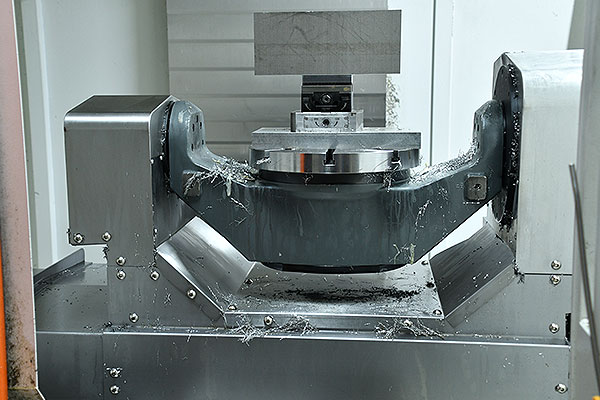

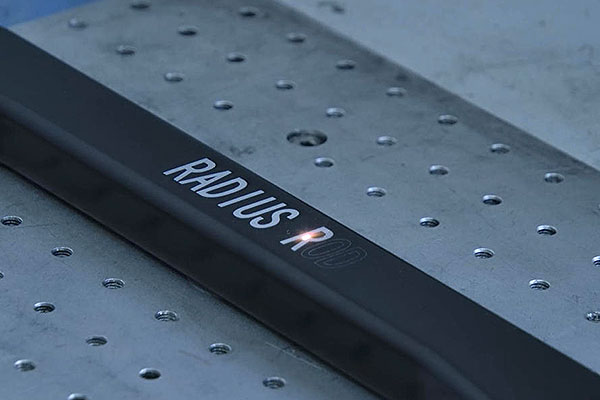

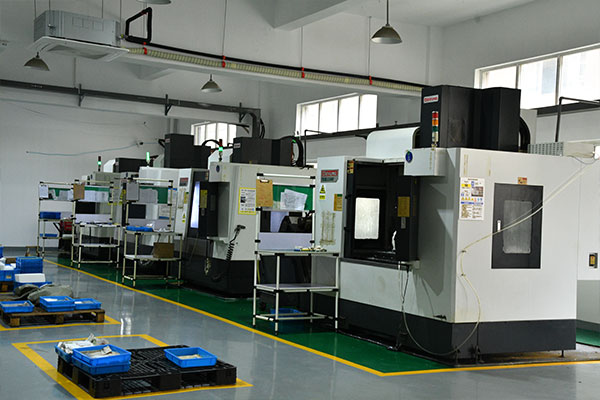

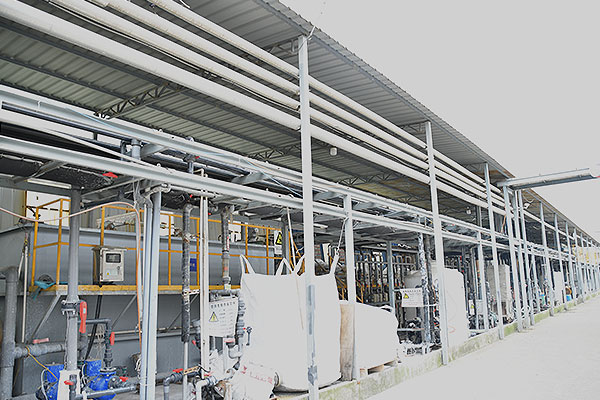

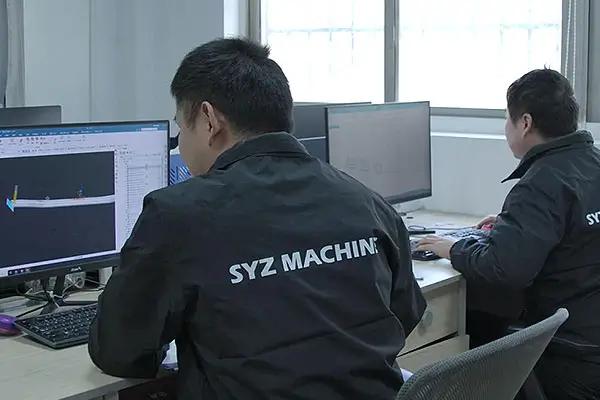

See the Factory
Not Just the Product.

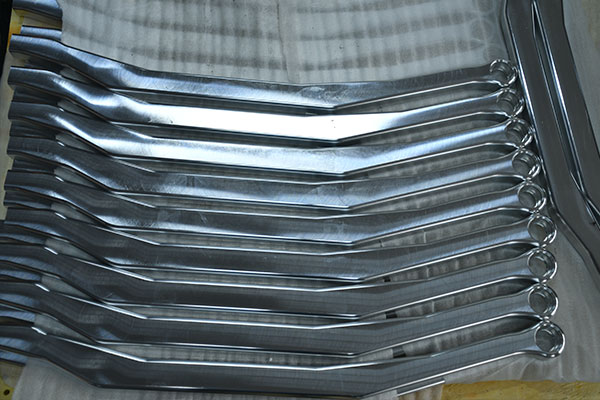

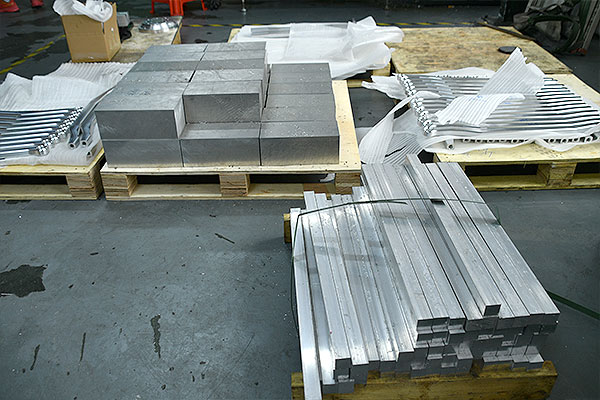

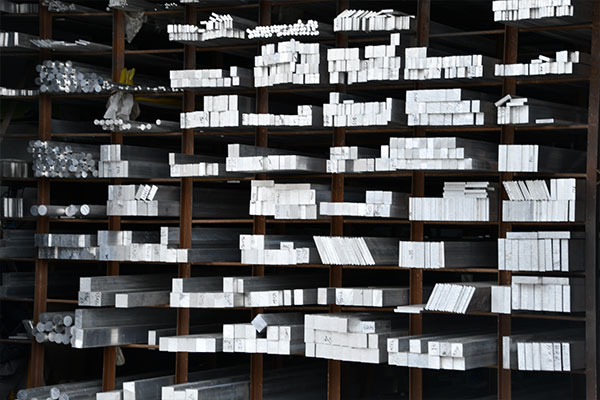

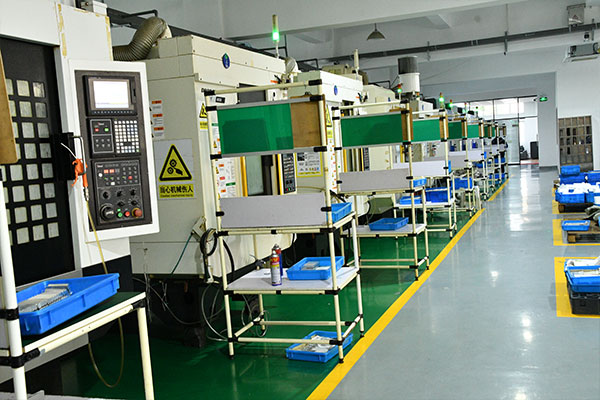

Every radius rod that ships from SYZ starts as a billet of raw material and goes through our CNC machining floor, anodizing line, and QC inspection before it reaches you. This is what “factory direct” actually looks like.

Factory Footage

Custom OEM Workflow

Custom OEM Solutions

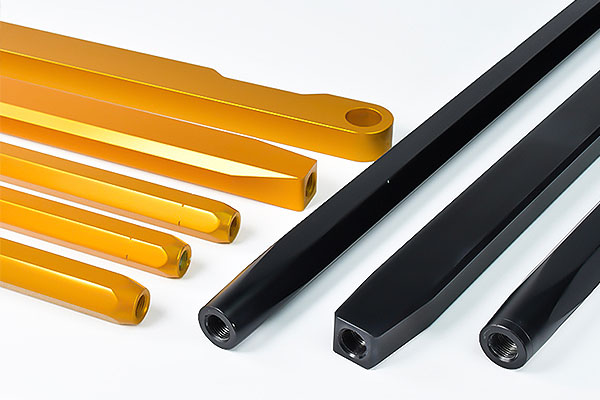

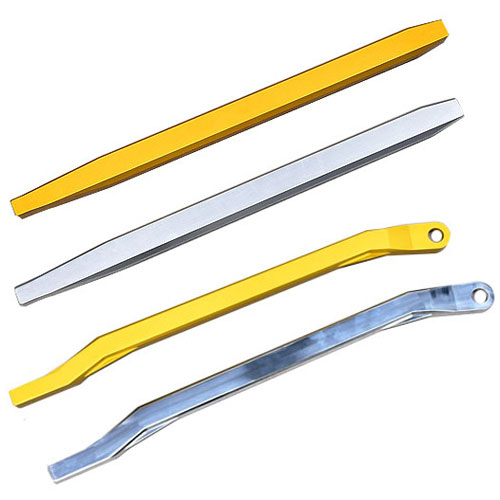

Custom Radius Rod Solutions for OEM & Aftermarket

If your model isn’t listed, or you need a custom design, we manufacture radius rods to any specification — based on your technical drawing, physical sample, or engineering brief. Our manufacturing standards consistently exceed OEM quality requirements.

Engineering support is available throughout the design, material selection, and production process. From prototype to full production run, we deliver consistent quality with reliable lead times.

Every Component. One Source.

Most suppliers assemble radius rod kits from parts sourced across multiple vendors. SYZ manufactures every component in-house — rod ends, spacers, bearings, and plates. One factory. One quality standard. One point of contact.

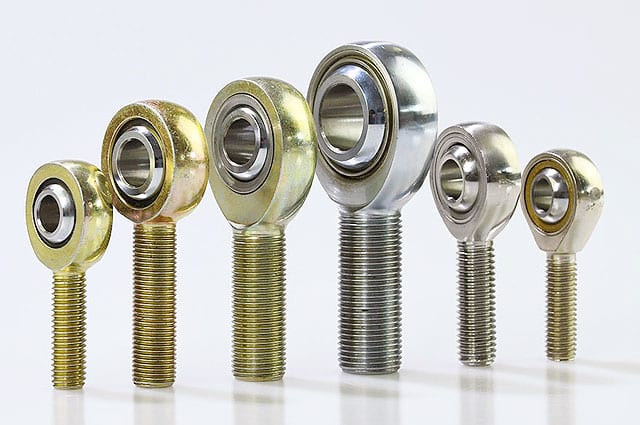

JMX Series

JMX Series — 3-piece rod end. Greater structural strength, preferred for performance builds and higher-load applications.

Both series: metric & imperial thread · precision-ground · fully replaceable

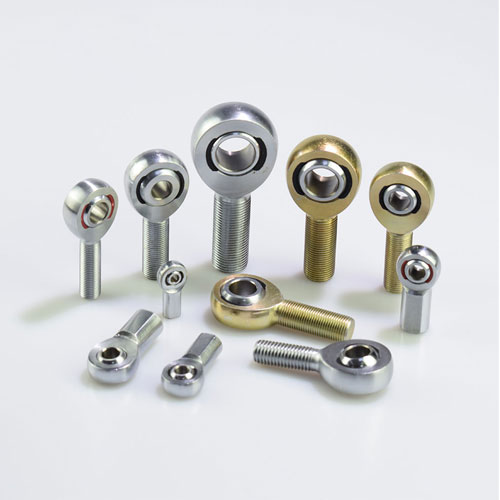

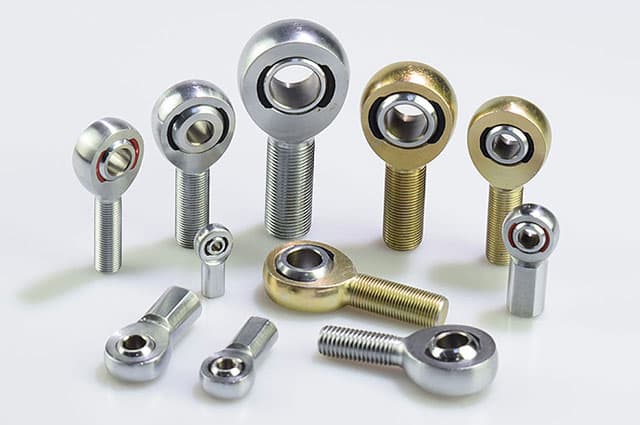

XM Series

XM Series — lader slot design. Compact, efficient construction suited for standard OEM replacement applications.

Both series: metric & imperial thread · precision-ground · fully replaceable

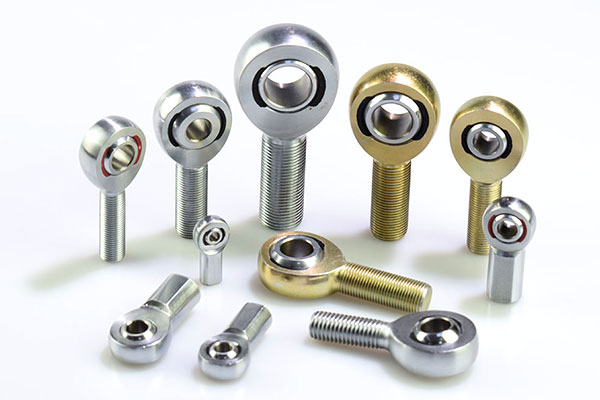

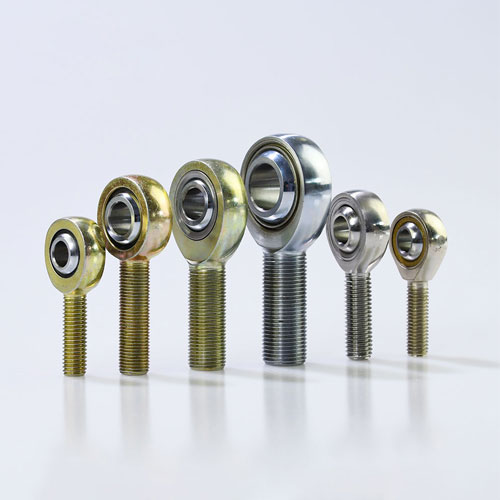

SYZ JMX & XM Series Heim Joints & Rod Ends

The end joint is where a radius rod fails first. SYZ radius rod kits are equipped with our own rod end series — both manufactured in-house, precision-ground, and rated for off-road dynamic loads. The XM Series uses a lader slot design suited for standard OEM replacement applications. The JMX Series is a 3-piece construction, offering greater structural strength for performance and higher-load builds.

Because both series are SYZ in-house products, replacement rod ends are available directly from us — your customers replace only the worn end, not the entire rod assembly.

Two designs, matched to application

XM lader slot design for OEM replacement applications. JMX 3-piece construction for performance and higher-load builds. The right end joint for each application — both from the same factory.

Precision-ground ball and race — zero play

Eliminates the slop and vague steering feel that comes with low-tolerance budget rod ends.

Fully replaceable — not sealed-for-life

Replace only the worn rod end, not the entire assembly. Field-serviceable, lower long-term cost.

SYZ Signature Component — Made In-House

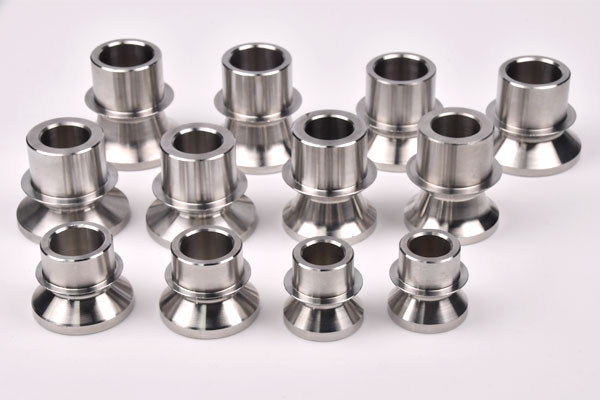

Rod End Spacers

Precision-machined spacers that ensure correct joint alignment and eliminate lateral play at the mounting point. When a spacer is sourced separately, dimensional inconsistency creates slop. Ours are machined to match the joint — same factory, exact tolerance.

Material: Chromoly / Stainless Steel / Aluminum / Steel / Titanium
Custom dimensions available

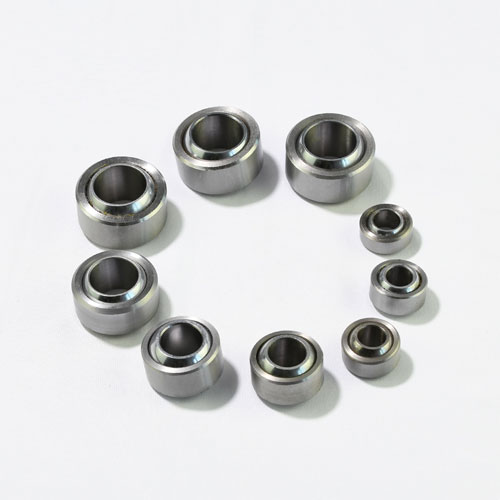

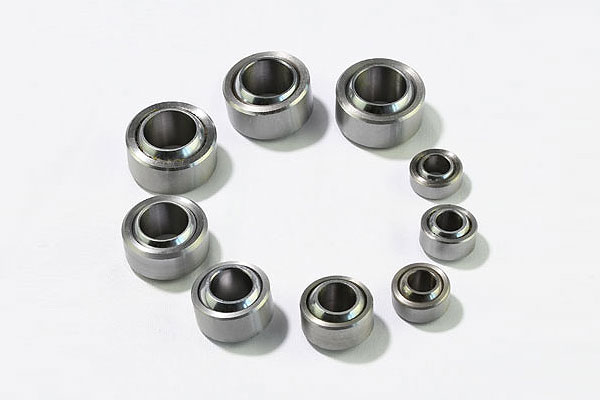

Spherical Plain Bearings

Used across radius rod assemblies, steering components, and suspension linkages. Self-lubricating PTFE-lined versions for maintenance-free operation, or steel-on-steel for maximum load capacity. The same bearing spec runs through our rod ends and the housing they mount into.

PTFE-lined / Steel-on-steel · Metric & Imperial bore sizes

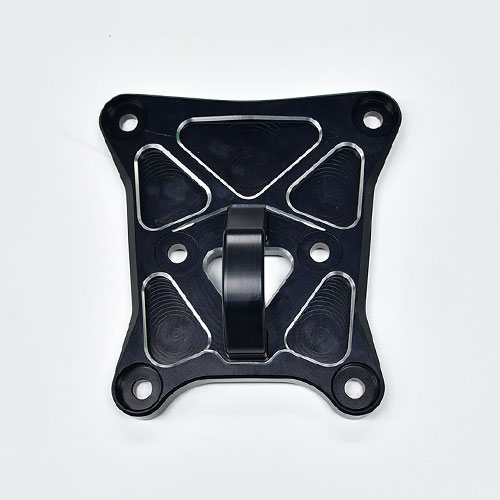

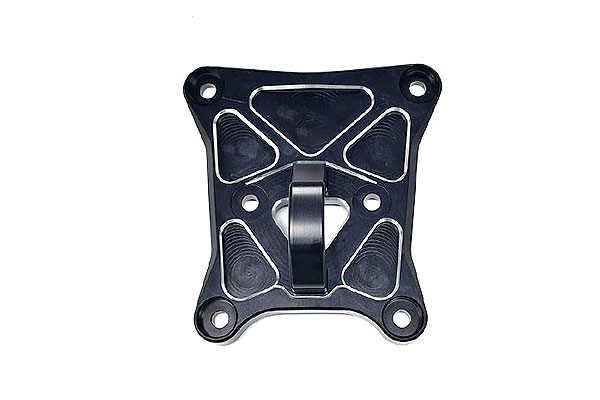

Radius Rod Plates

The chassis mounting plate is often overlooked — but a weak or ill-fitting plate undermines the entire radius rod assembly. SYZ manufactures billet radius rod plates in-house, matched to the chassis geometry and the rod end dimensions of the kit. No fitment compromise, no separate sourcing.

Billet aluminum / Steel · CNC machined to chassis spec

Need a complete suspension component package?

Radius rods + rod ends + spacers + plates — all sourced from one factory. Simplify your supply chain.

Integrated Supply Chain

Applications

Applications & Compatible Vehicles

Our radius rods are designed for the following UTV platforms and off-road applications. Custom solutions available for any unlisted model.

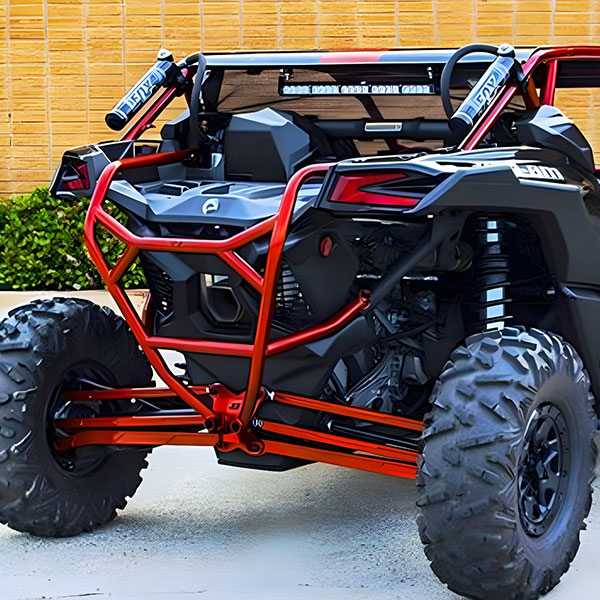

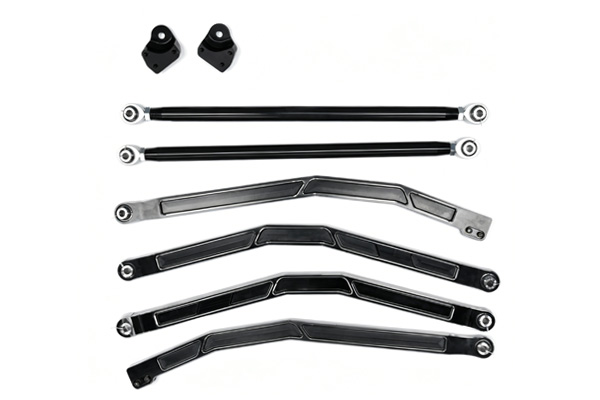

Can-Am Maverick X3 Series

In-stock kits for 64″ and 72″ width configurations. Designed for the Maverick X3 platform’s long-travel suspension and high-power drivetrain in desert, dunes, and trail environments.

Polaris RZR Series

In-stock kits for XP 1000, PRO XP, and Turbo S platforms. Built to replace and outperform factory rods under the increased loads and chassis flex typical of high-performance RZR riding.

Other UTV & ATV Platforms

We produce custom radius rods for any unlisted UTV or ATV platform based on drawings or physical samples. Also applicable to custom off-road builds, rock crawlers, and performance vehicles.

Radius Rods FAQ

Common questions from buyers, procurement teams, and riders.

What is a radius rod and what does it do on a UTV?

A radius rod is a critical rear suspension link on UTVs. It connects the chassis to the rear hub assembly to maintain wheel alignment, control fore-aft axle movement, and stabilize the vehicle under off-road stress. When OEM radius rods bend or fail, it directly impacts handling, tire wear, and vehicle safety.

Are these kits direct replacements for OEM radius rods?

Yes. All in-stock kits are engineered as direct bolt-on replacements using OEM mounting points and thread specifications — no vehicle modification required. The rod geometry maintains factory suspension alignment while the solid billet construction and upgraded end joints provide a significant strength advantage over standard OEM components.

What materials are used in your radius rods?

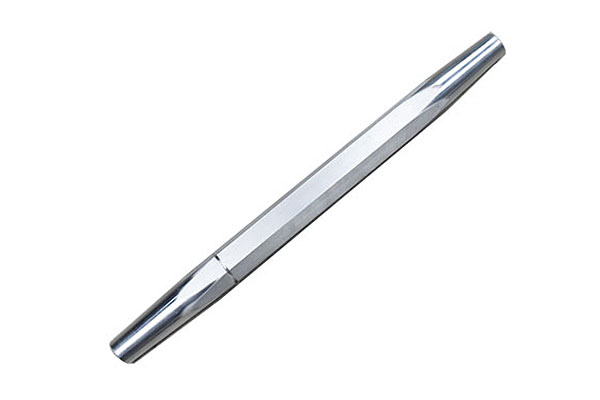

In-stock kits are manufactured from 7075-T6 billet aluminum — machined from solid stock, not formed from hollow tubing. For custom orders, material options include 6061-T6 aluminum, 7075-T6 billet aluminum, 4130 chromoly steel, and stainless steel, selected based on load requirements, weight targets, and application type.

Can I order a single set, or is there a minimum order quantity?

Single-set retail orders are fully supported for all in-stock kits. Custom and OEM radius rod projects may require a minimum quantity depending on the design complexity and production setup — contact us for details.

Are your radius rods suitable for racing or high-performance use?

Yes. Our radius rods are designed for trail riding, desert racing, dune use, and competition environments. For performance and racing applications, we offer 4130 chromoly steel construction for maximum strength under repeated high-impact loads, and high-clearance geometry designs for builds where ground clearance is a priority. These are separate options — material choice and geometry are specified independently based on your application requirements.

Do you supply OEM brands and aftermarket companies?

Yes. In addition to retail orders, we supply OEM manufacturers, aftermarket performance brands, and bulk wholesale buyers. Factory-direct supply with stable capacity, engineering support, and private label options are all available.

What's the difference between JMX and XM series rod ends used in the kits?

The difference is structural. XM Series uses a lader slot design — a single-body construction that is compact and well-suited for standard OEM replacement applications. JMX Series is a 3-piece rod end design, which provides greater structural strength and is the preferred choice for performance builds and higher-load applications. Both series are manufactured in-house by SYZ, precision-ground, and fully replaceable as standalone components — so when the rod end wears, you replace only the end, not the entire rod assembly.

What colors and finish options are available?

In-stock kits are available in Black anodize and Clear anodize. Custom orders support a wide range of surface treatments including colored anodizing, powder coating, zinc plating, and hard chrome upon request.

Applications

Get Started

Looking for Radius Rod Solutions?

Choose an in-stock kit for fast retail delivery, or contact us for custom OEM and bulk manufacturing solutions. Factory direct — no middlemen.

OEM & bulk orders welcome · Engineering support included · Fast worldwide shipping
