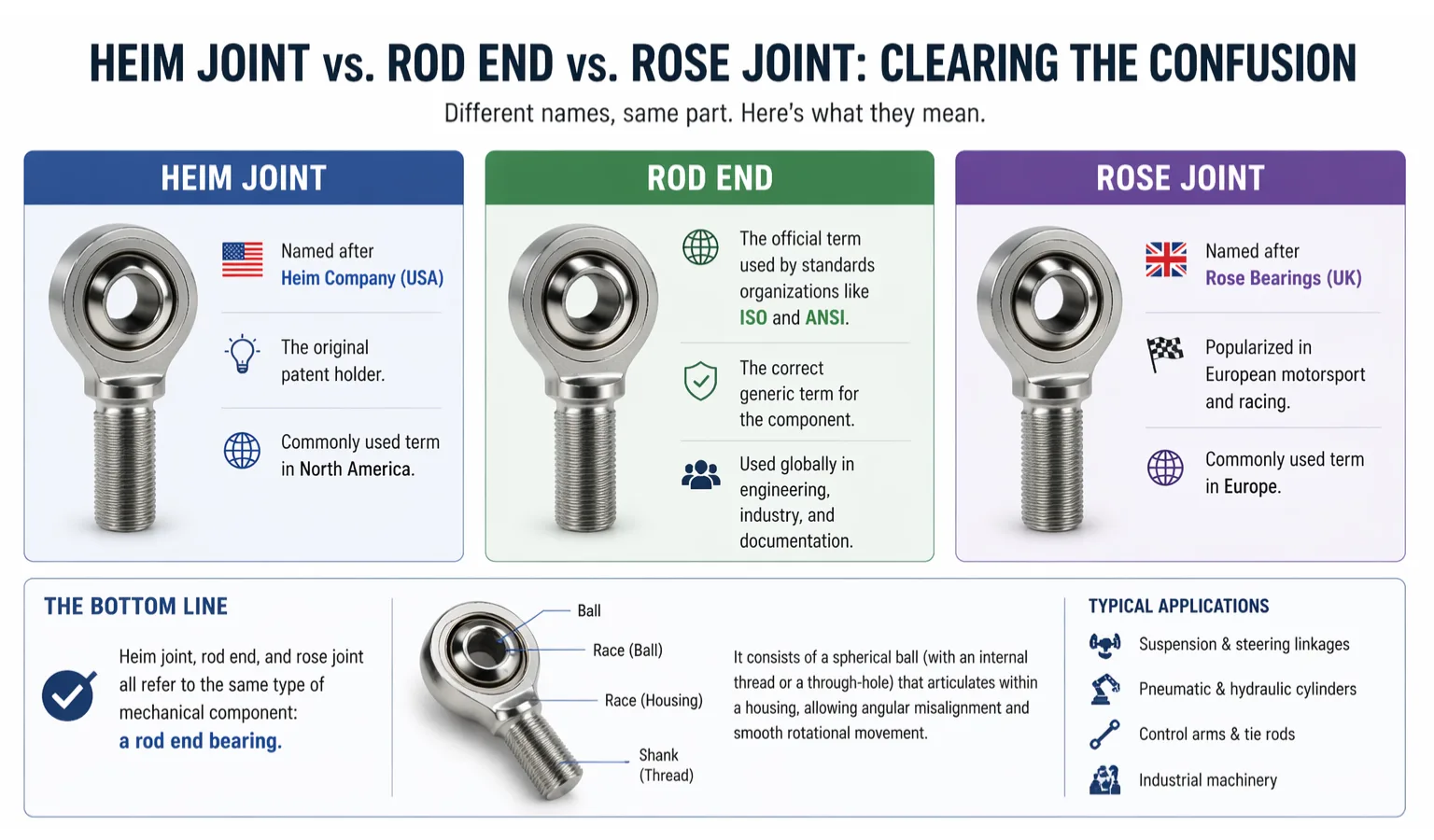

Heim joint vs. Rod end vs. Rose joint: clearing the confusion

Regional and brand-name origins

The confusion stems from “genericized trademarks”—brand names that became the common name for the part.

1. Heim Joint: Named after the Heim Company (USA), the original patent holder.
2. Rose Joint: Named after Rose Bearings (UK), which popularized the component in European motorsport.
3. Rod End: The official term used by organizations like ISO (International Organization for Standardization) and ANSI.

Sourcing the correct part

When ordering, it is more important to specify the thread type and material than the name.

• Metric vs. Inch: “Rose joint” often implies metric threads (ISO standards), while “Heim joint” usually refers to UNF/UNC inch sizes (SAE standards).
• Specifications: Regardless of the name, the performance is defined by the steel grade (e.g., 4130 Chromoly) and whether it includes a self-lubricating PTFE liner.
