Spherical Bearings

·Direct Manufacturer — No Middlemen

Suspension
Spherical Bearing Manufacturer

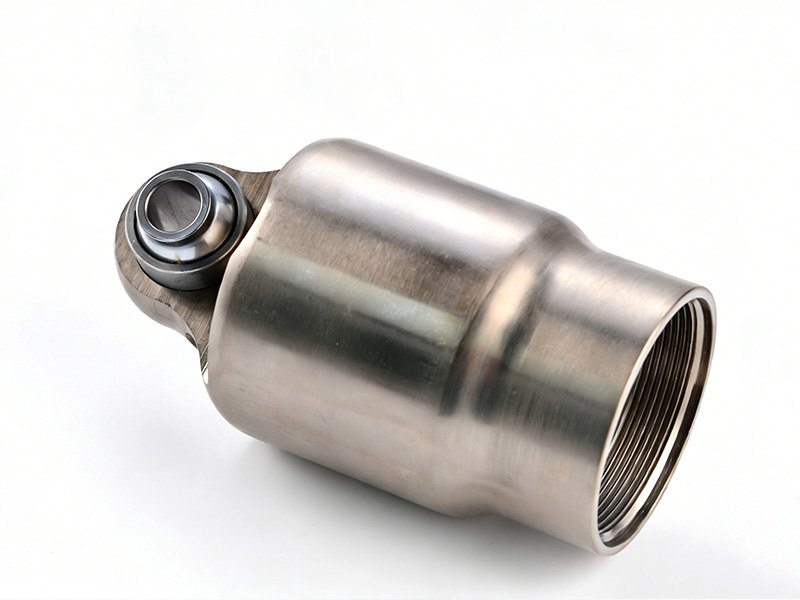

Custom uniball joints engineered for shock absorber mounting points — controlled clearance, high articulation and stable batch consistency.

Common Problems We Solve

  • Noise caused by excessive radial clearance
  • PTFE liner peeling or premature wear
  • Installation tolerance mismatch
  • Binding under high articulation angles
  • Inconsistent quality between batches
35CrMo Outer RingGCr15 Hardened BallF1 / F2 / F3 ClearancePTFE & Steel-on-SteelDrawing-Based Custom
Request Technical Review
Get A Free Quote

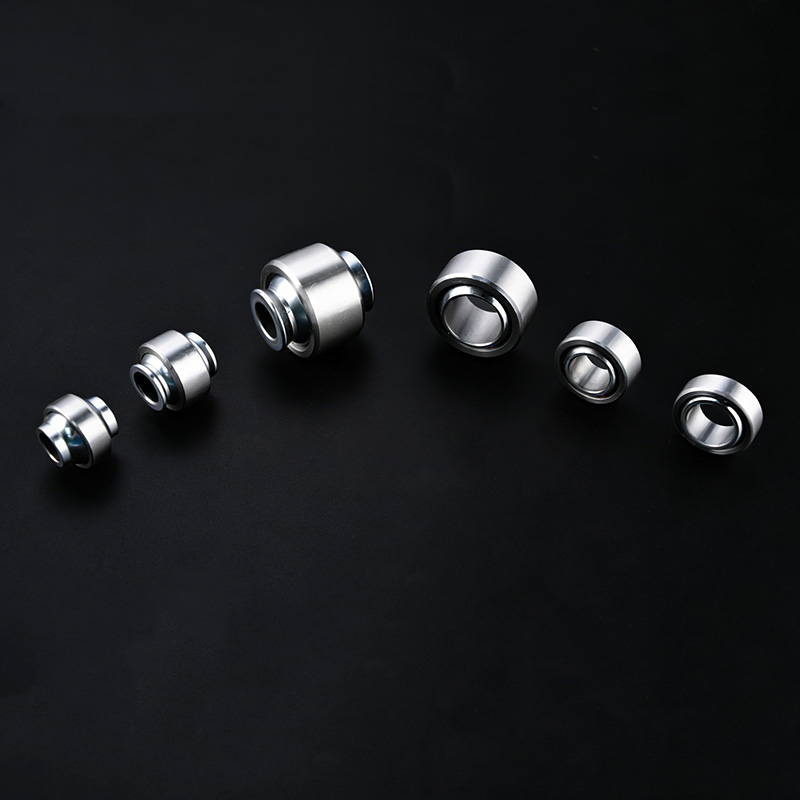

suspension spherical bearings manufacturer
26+Years Manufacturing
3Clearance Grades
100%In-House Production
The Problem

Are Your Suspension Bearings Failing Too Early?

If your spherical bearings cannot maintain precision under load, your entire suspension system performance suffers. We focus on structural strength, clearance control and long-term stability — not just price.
⚡

Excessive Play After Short Mileage

Loose clearance tolerance leads to rapid wear and sloppy handling feel — a common complaint from performance suspension customers that damages your brand.

🔊

Noise & Vibration Under Load

Improper clearance specification or inconsistent liner bonding causes knocking and vibration that creates warranty claims and customer dissatisfaction.

🔧

PTFE Liner Peeling or Premature Wear

Poor liner bonding process leads to delamination under dynamic load — especially in motorsport and off-road applications with high articulation frequency.

📐

Installation Tolerance Mismatch

Outer diameter variation from batch to batch creates press-fit issues during assembly, causing production line downtime and costly rework.

🔄

Binding Under High Articulation

Standard bearings lack sufficient misalignment angle for long-travel suspension, resulting in binding at full droop or compression and premature failure.

📦

Inconsistent Batch Quality

Low-cost suppliers deliver inconsistent clearance and surface finish between batches — creating unpredictable field performance and quality control problems.

Product Definition

What Is a Suspension Spherical Bearing?

A suspension spherical bearing — also known as a uniball joint — is installed at the shock absorber mounting point (eyelet) to replace rubber bushings and provide precise articulation under dynamic load.

Compared to rubber bushings, spherical bearings deliver measurably superior performance in handling precision, load capacity and service life consistency.

1

Allow multi-angle movement while supporting radial and axial loads simultaneously

2

Eliminate elastic deformation that blurs steering and handling feedback

3

Improve handling precision through direct mechanical connection

4

Support high load transmission in motorsport and heavy-duty applications

Spherical Bearings vs. Rubber Bushings

Performance FactorSphericalRubber
Handling FeedbackDirectDamped
Load CapacityHighLimited
DeflectionMinimalSignificant
Temperature RangeWideNarrow
Articulation AngleControlledVariable
Service LifePredictableDegrades
Batch ConsistencyPreciseVariable

Typical Applications

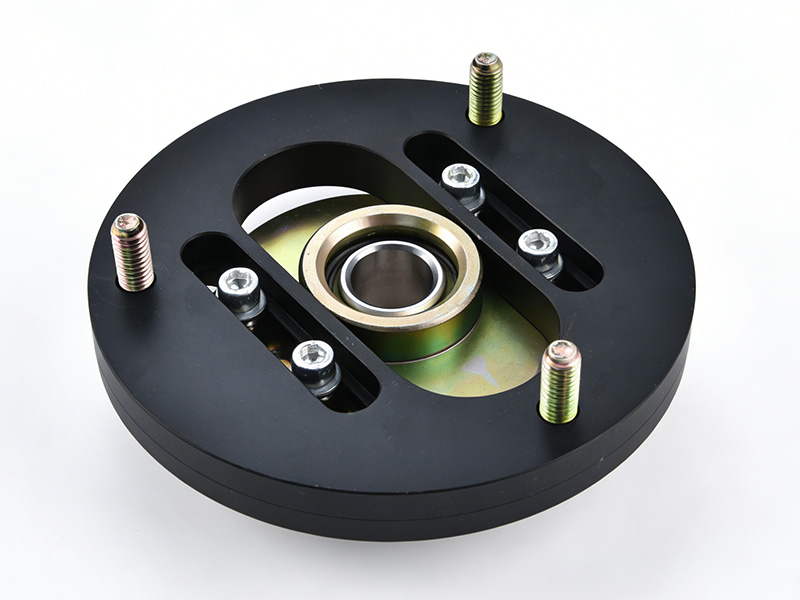

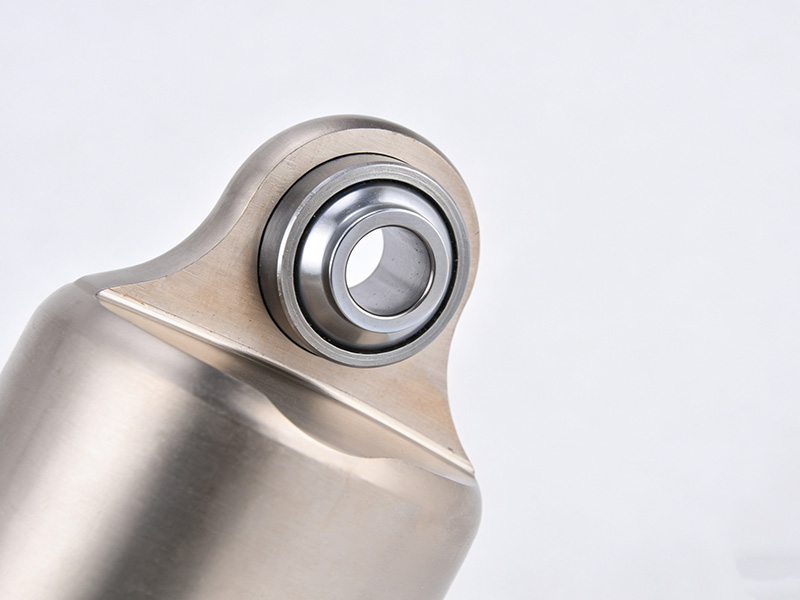

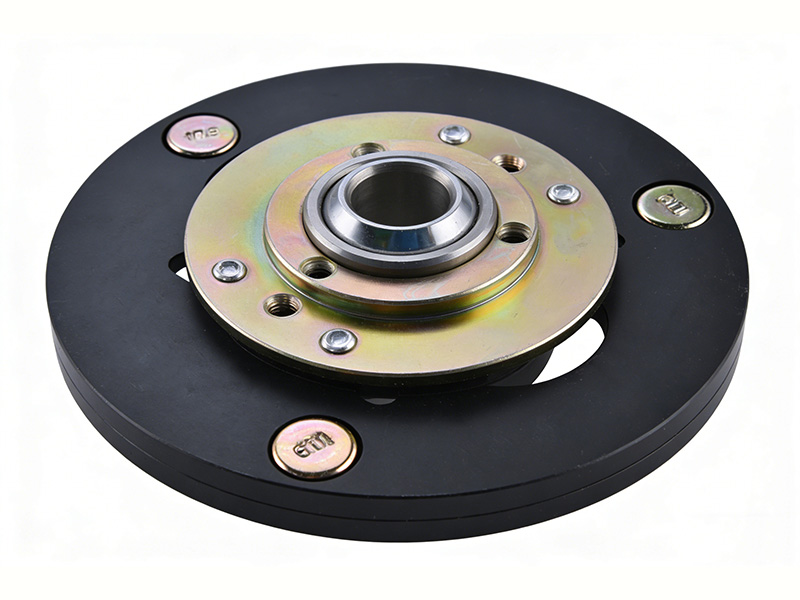

Coilover ShocksMotorcycle SuspensionATV / UTV SystemsOff-Road CoiloversMotorsport AssembliesUpper & Lower Control ArmsAftermarket Kits
Product Range

Common Spherical Bearing Types Used in Suspension

We manufacture bearings compatible with industry-standard series and support custom structural modifications beyond standard specifications.

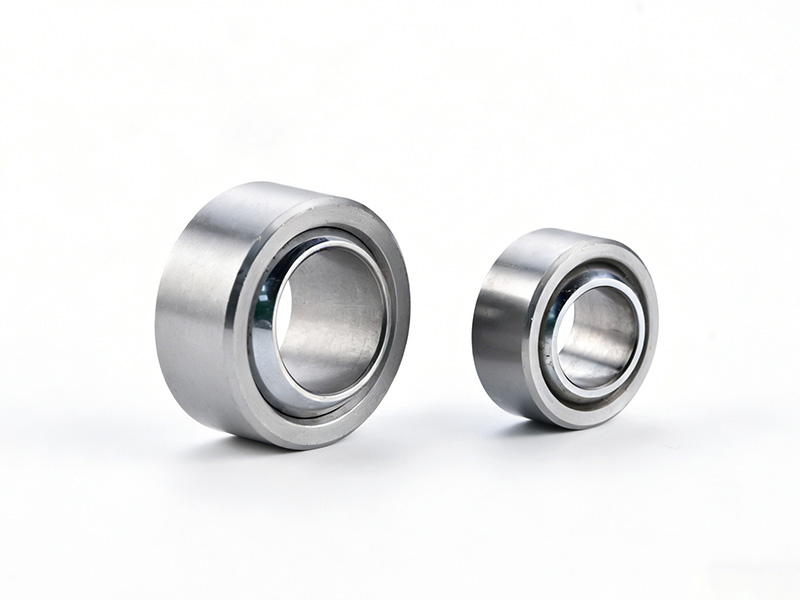

COM-T Series PTFE Lined
Maintenance-Free

COM-T Series — PTFE Lined

Maintenance-free design with precision-bonded PTFE liner. Low friction operation ideal for high-cycle performance and racing suspension systems where re-lubrication is impractical.

  • Bonded PTFE liner — no lubrication required
  • Low friction for high articulation frequency
  • Consistent performance across temperature range
  • Available in controlled F1/F2/F3 clearance
  • TYPICAL APPLICATIONS
  • Coilover Shock MountsMotorsport AssembliesPerformance Upgrades

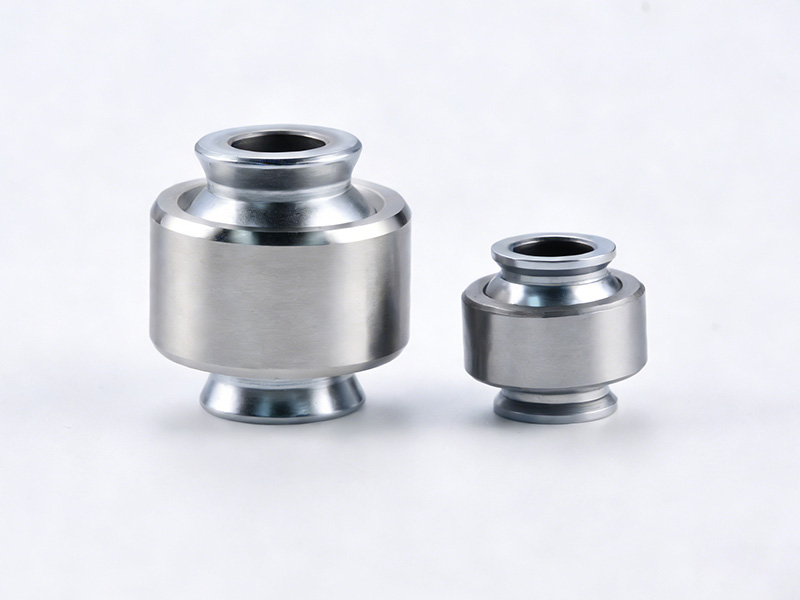

High Misalignment Type
Extended Articulation

High Misalignment Type

Engineered for extended articulation angles beyond standard specifications. Designed for demanding long-travel suspension applications where binding under full droop is unacceptable.

  • Greater misalignment angle than standard COM-T
  • Compatible with misalignment spacers
  • Optimized inner race geometry for full travel
  • PTFE or steel-on-steel liner options
  • TYPICAL APPLICATIONS
  • Off-Road Long-Travel ATV / UTV Shocks Racing Suspension

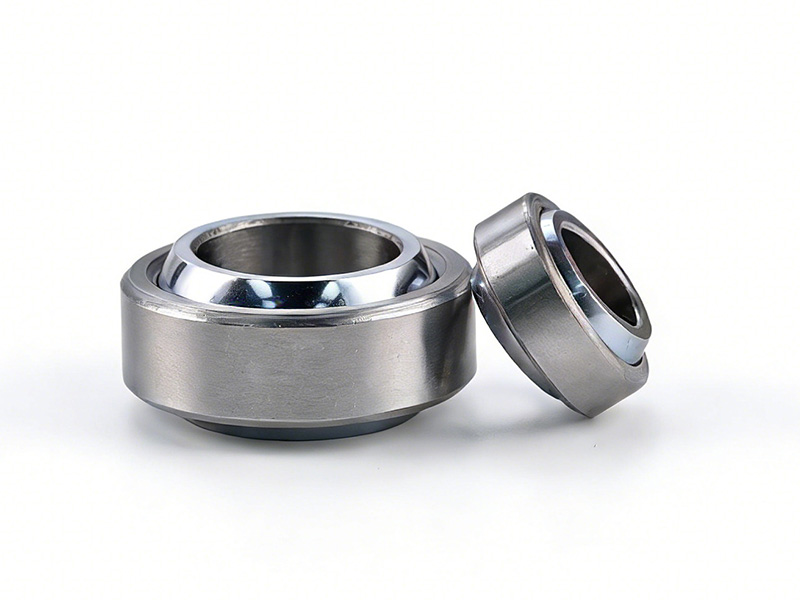

GE Series Steel-on-Steel
Heavy Duty

GE Series — Self-Lubricating or Steel-on-Steel Options

Flexible spherical bearing design with optional PTFE liner or traditional steel-on-steel configuration. Cost-effective solution with strong outer ring structure, suitable for both performance and volume applications.

  • Optional PTFE lined — maintenance-free operation
  • Steel-on-steel available — grease lubricated
  • Carbon steel outer ring — cost-efficient structure
  • Suitable for large-volume production
  • TYPICAL APPLICATIONS
  • Heavy-Duty Suspension Industrial Linkage Shock Mounting Points Mid-Range & Budget Coilover Systems
Core difference

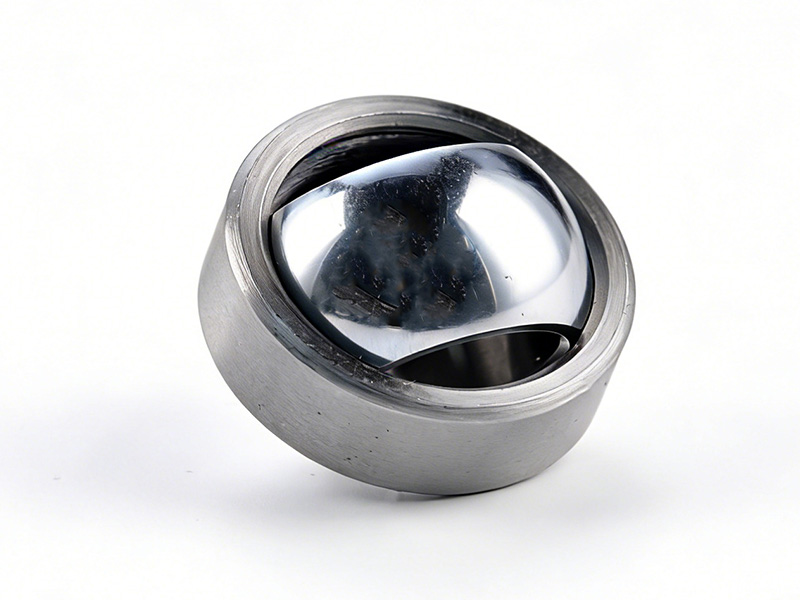

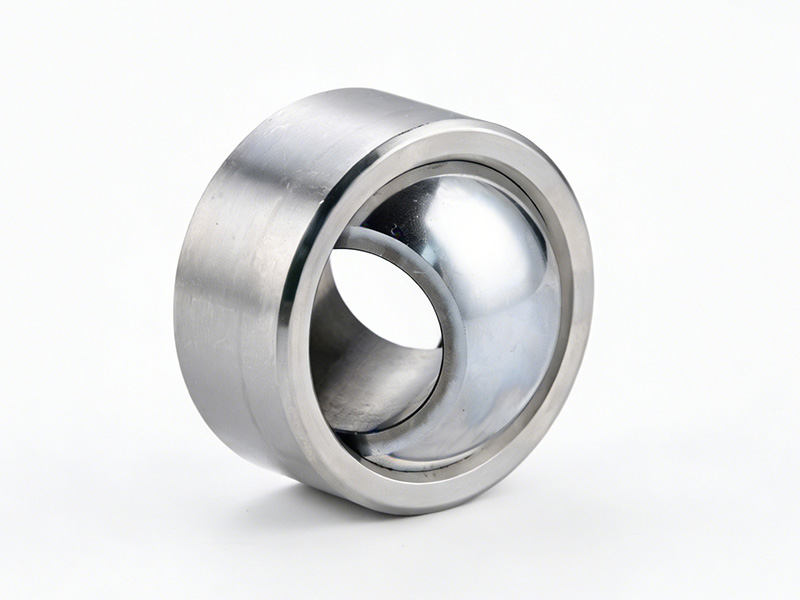

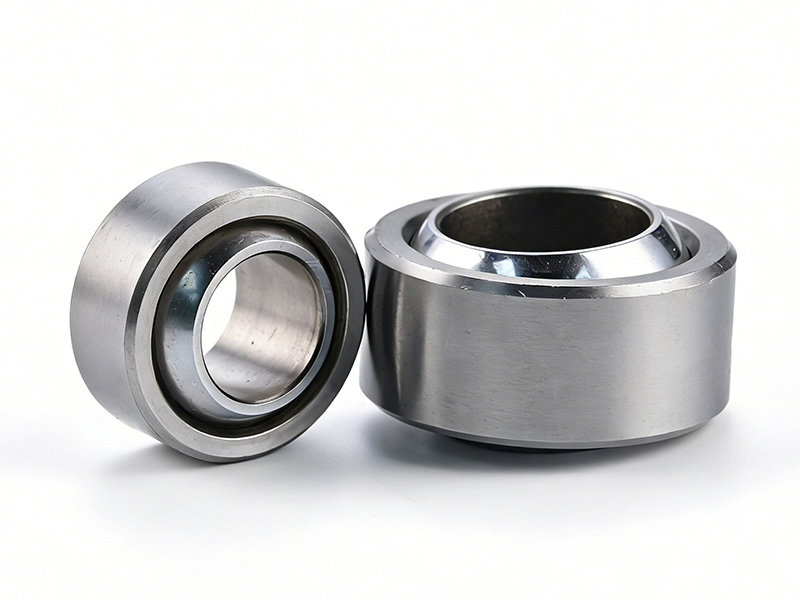

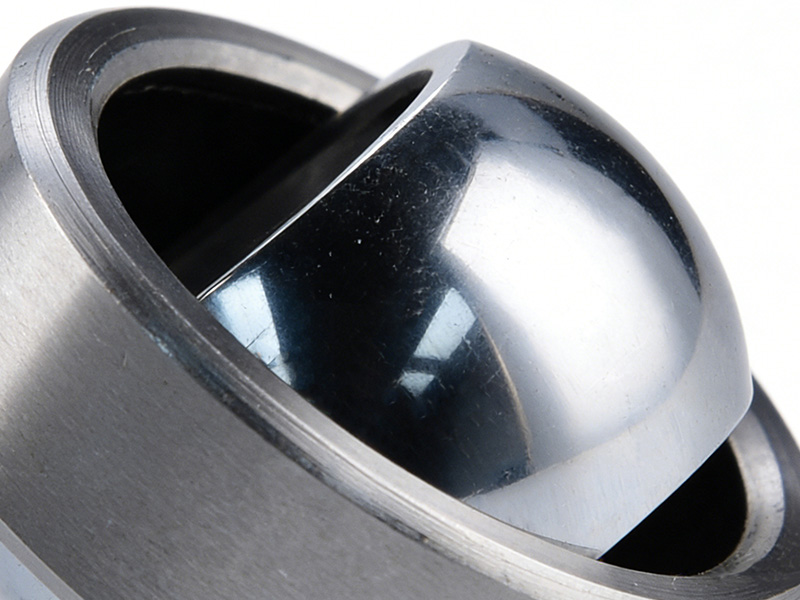

Controlled Radial Clearance - F1/F2/F3

Clearance directly affects handling precision, noise behavior and service life. We offer three precision clearance grades with custom specification available on request.

F1

Tight Clearance — Racing / Low Play

Minimum internal play for maximum steering precision. Designed for competitive motorsport where any deflection reduces driver feedback. Suitable for high-speed, high-load applications.

F2

Standard Precision — Performance Suspension

Balanced clearance optimized for street performance and aftermarket coilover systems. Excellent feedback while maintaining smooth articulation and noise-free operation.

F3

Looser Fit — Heavy-Duty & High Load

Larger clearance designed for heavy-duty off-road applications and high-load industrial use. Accommodates thermal expansion and contamination without binding.

Why Clearance Control Matters

Improper clearance specification directly causes:

Knocking noise under dynamic load
Excessive play and vague handling feel
Accelerated liner and race wear
Installation complaints and warranty claims

Correct clearance control delivers:

Reduced noise and NVH complaints
Improved handling feedback and precision
Extended service life and lower warranty rates
Consistent installation fit across batches

Custom clearance specification available upon request. We support fit tolerance recommendations based on housing dimensions and application requirements.

Material & construction

Built for High Load & Harsh Environment

Every component is selected for structural performance. Heat treatment and surface finishing are controlled in-house at every stage of production.

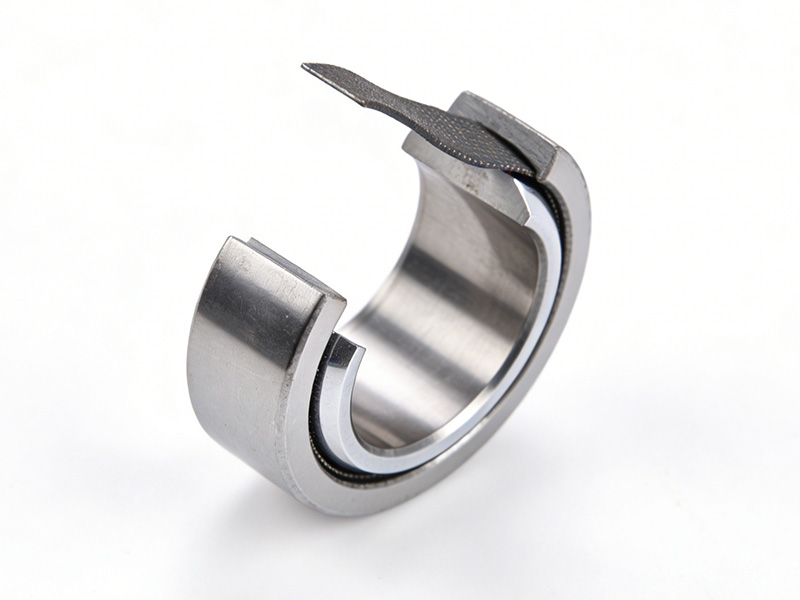

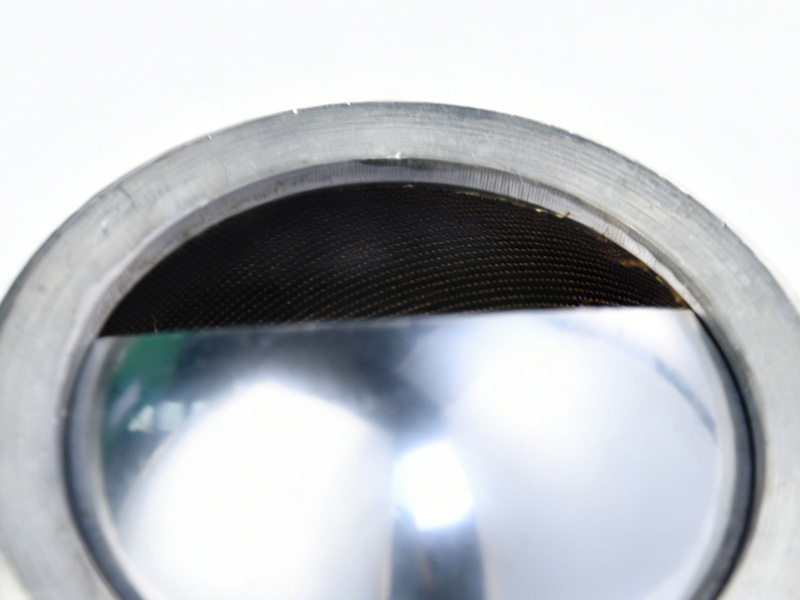

Cross-section view 2
🔩

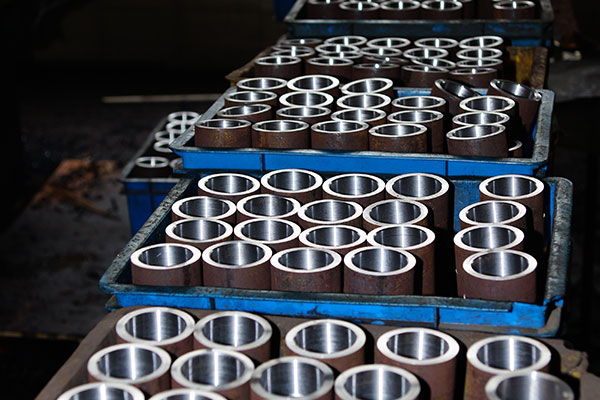

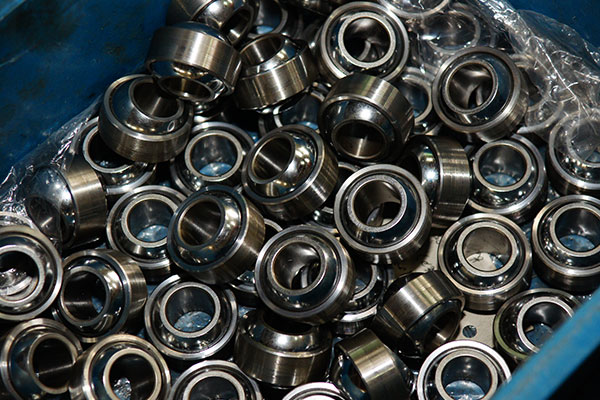

Outer Ring

35CrMo / 40Cr Alloy Steel

Heat-treated alloy steel outer ring provides structural backbone for radial and axial load transfer. Precision ground for dimensional accuracy and consistent press-fit performance.

⚙️

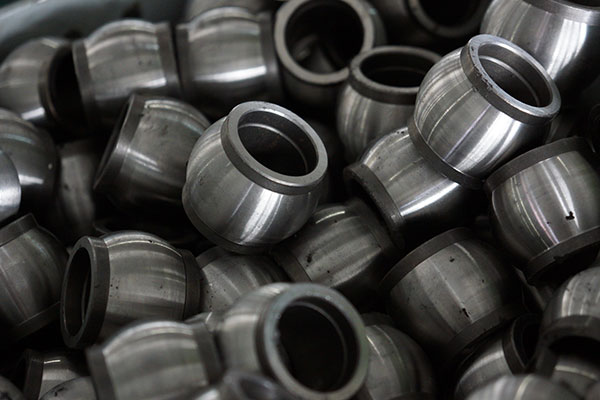

Inner Ball

GCr15 Bearing Steel / Hard Chrome Option

High-strength chrome bearing steel hardened for wear resistance under repeated oscillation. Hard chrome ball option available for extreme load and corrosive environments.

🛡️

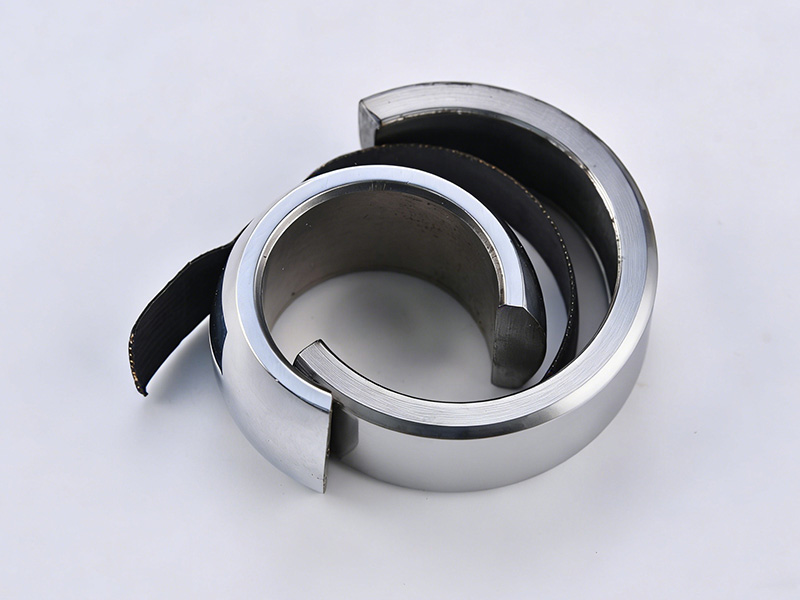

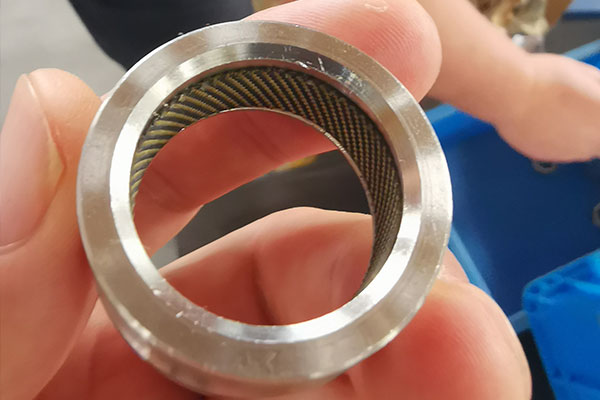

Liner Options

PTFE Bonded / Copper / Steel-on-Steel

Three liner configurations to match application requirements — PTFE for maintenance-free operation, copper for lubricated high-load, steel-on-steel for maximum load capacity.

🌡️

Heat Treatment

In-House Controlled Process

Coordinated heat treatment ensures consistent surface hardness and core toughness. Every batch verified against hardness specification before proceeding to grinding operations.

🎨

Surface Treatment

Phosphate / Zinc / Black Oxide / Custom

Multiple corrosion-resistant surface treatment options available based on application environment, customer specification or export packaging requirements.

⭐

Stainless Steel Option

Marine & Extreme Corrosion Environments

Full stainless steel construction available for marine, chemical, or extreme outdoor applications where standard alloy steel surface treatment is insufficient.

Engineering capability

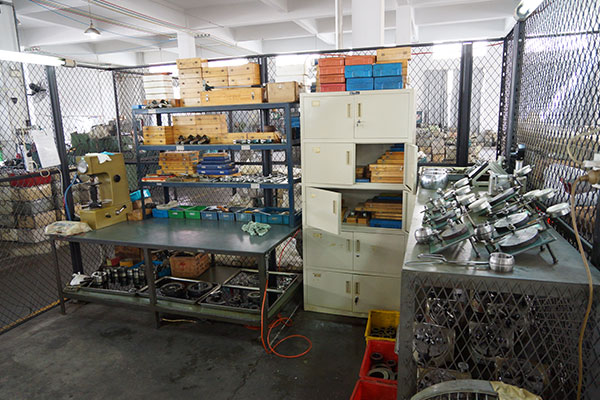

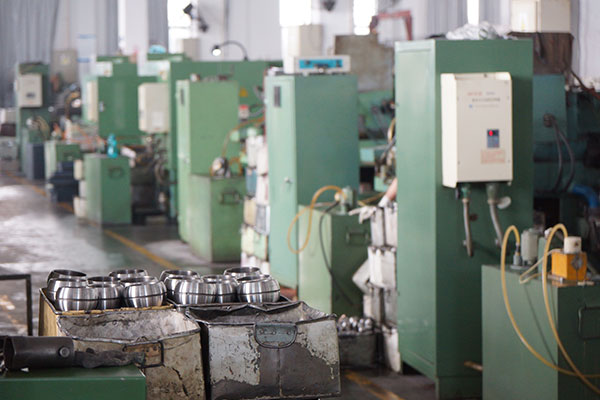

In-House Manufacturing & Quality Control

We control every critical step of production. Consistency is our priority — and we back that with in-house inspection at every stage.

Manufacturing Processes

🔧

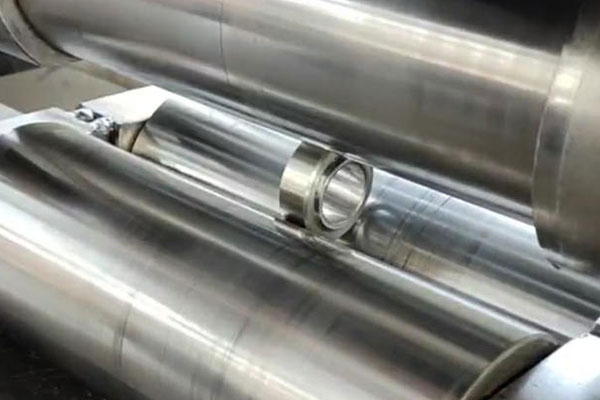

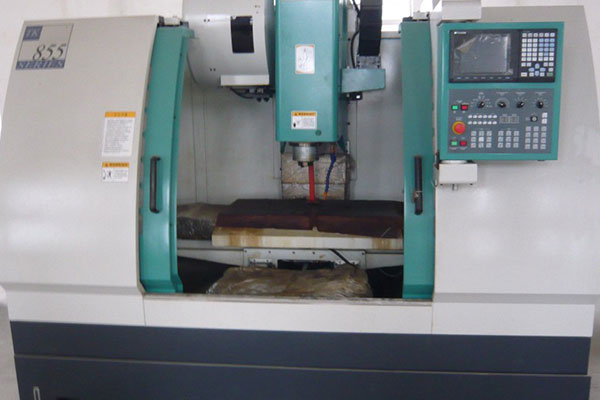

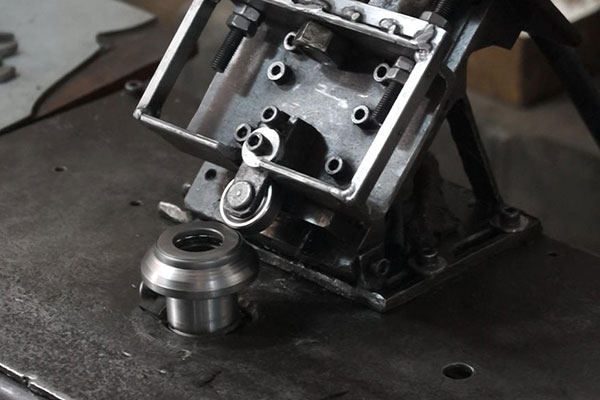

CNC Machining

Precision turning and grinding of outer ring and inner ball to tight dimensional tolerance

🔥

Heat Treatment Coordination

Controlled hardening and tempering for consistent mechanical properties across batches

🧪

PTFE Liner Bonding

Precision bonding process with adhesion testing to prevent liner delamination in service

📐

Clearance Adjustment

Controlled grinding of inner race to achieve specified F1/F2/F3 clearance grades

✅

Batch Consistency Control

Statistical process control to maintain dimensional stability across production runs

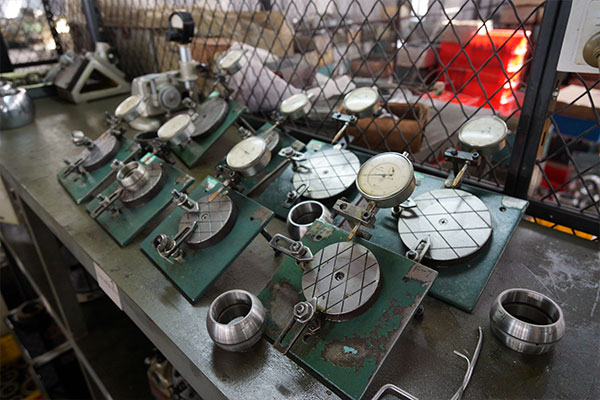

Inspection & Testing

🔬

Bore Gauge Measurement

100% bore diameter inspection for consistent press-fit and housing compatibility

💪

Hardness Testing

Rockwell hardness verification on outer ring and ball after heat treatment process

📏

Clearance Verification

Radial clearance measured against F1/F2/F3 specification before final inspection

📊

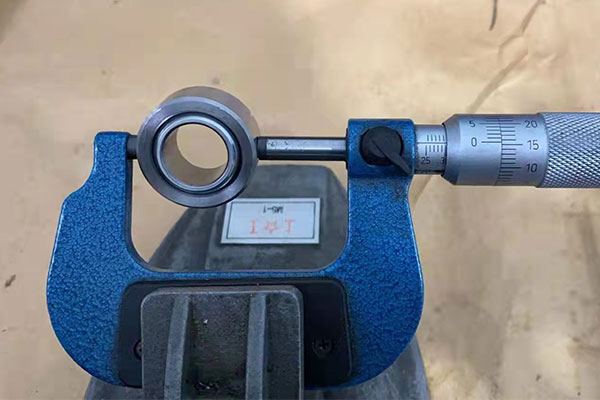

Dimensional Inspection

Full dimensional report — OD, bore, width, clearance values — available upon request

Why SYZ Machine

Why Buyers Choose Our Spherical Bearings

Direct Manufacturer

Manufacturing-focused operation — not a trading company. Every part produced in-house with full process control.

Stable Quality Process

Consistent clearance, hardness and dimensions across batches. Controlled production reduces field variance.

Engineering Support

Technical team reviews your drawings, housing tolerances and application requirements — not just takes orders.

Prototype Capability

Small-batch prototype production supported. Validate fit and function before committing to volume orders.

Long-Term OEM Partner

Built for ongoing OEM cooperation — not spot transactions. We grow with your product line.

Trusted by Performance & OEM Brands

We don’t compete on lowest price. We compete on stability, precision and reliability — and we back that with in-house manufacturing control at every stage.
Years Manufacturing
0 +
In-House Production
0 %
Clearance Grades
0
Engineering Response
0 h
Shock Absorber ManufacturersCoilover BrandsSuspension Kit AssemblersOff-Road Performance BrandsOEM AutomotiveMotorsport TeamsPrivate Label Brands
Start Your Project
Installation support

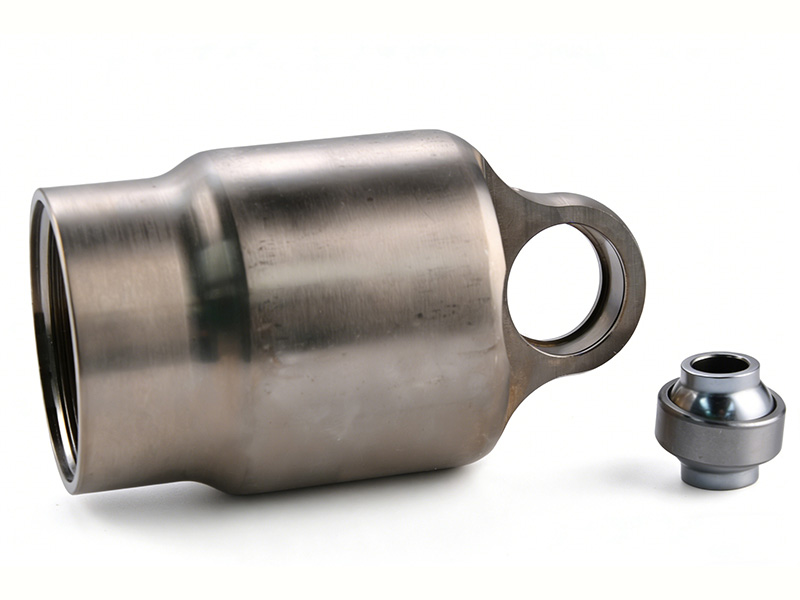

Solving Assembly & Installation Issues

Many suspension brands encounter costly installation problems that damage their reputation with end customers. These issues typically originate in specification mismatches — not defective parts.

Common Installation Problems

  • Press-fit tolerance mismatch — bearing too loose or tight in housing
  • Bearing rotation after installation under dynamic load
  • Excessive play complaints from end customers
  • Misalignment binding under full suspension travel

How We Help

  • Housing tolerance suggestions based on your bore specification
  • Outer diameter adjustment to match your press-fit requirement
  • Clearance grade matching for your application load case
  • Engineering drawing review to identify specification conflicts
  • Prototype evaluation before volume production commitment
Custom Production

Custom Spherical Bearing Solutions

Beyond standard series, we support drawing-based custom production for applications requiring non-standard geometry, special materials or proprietary specifications.
Custom bore size
Custom outer diameter
Special clearance specification
PTFE liner thickness adjustment
Custom surface treatment
Private label packaging
Stainless steel construction
High misalignment geometry
Start Your Project

Dimensional Capability

Bore Diameter Range12mm — 1 inch+
Custom Outer DiameterDrawing Required
Clearance GradesF1 / F2 / F3 / Custom
Inspection ReportAvailable on Request
Prototype BatchSmall Batch Supported
HOW WE WORKS

From Drawing to Delivery

1

Submit Drawings

Share your housing bore, OD requirement, clearance grade and application description

2

Engineering Review

Our team reviews fit tolerance, clearance spec and articulation requirement

3

Sample Confirmation

Sample produced to confirm dimensional and functional requirements

4

Volume Production

Locked specification enters production with batch inspection and consistency control

FAQ

Frequently Asked Questions

Technical Questions & Common Enquiries
What is the difference between COM-T and GE series bearings?
COM-T uses a bonded PTFE liner and is completely maintenance-free — ideal for performance and motorsport suspension where re-lubrication is impractical. GE series is steel-on-steel with grease lubrication, providing higher static load capacity at lower cost. GE is preferred for heavy-duty applications with accessible lubrication points.
Yes. We support full drawing-based custom production. Submit your technical drawing with bore diameter, outer diameter, width, clearance specification and material requirements. Our engineering team responds within 24 hours. Small-batch prototypes are available before volume commitment.
Yes. We assist customers with housing tolerance recommendations, outer diameter adjustment for press-fit specification, and clearance grade selection based on assembly requirements. This engineering support is included as standard OEM cooperation — not an additional service charge.
Yes. We support OEM production with customer-specified part numbers, drawings and packaging requirements. Private label packaging with custom branding is also available. We operate as a long-term manufacturing partner — not a spot supplier — designed to support ongoing product line development.

A high misalignment design features modified inner race geometry that allows greater angular deflection than standard COM-T or GE series. This is critical for long-travel off-road suspension where standard bearings would bind or generate internal stress at full droop or compression. Often used in combination with misalignment spacers.

We offer F1 (tight — racing/low play), F2 (standard — performance suspension) and F3 (looser — heavy-duty/high load). Choice depends on application load, housing tolerance, operating temperature range and noise requirements. We recommend sharing your housing bore specification so our team can recommend the appropriate grade.

Standard outer ring is 35CrMo or 40Cr alloy steel, heat-treated and precision ground. Inner ball is GCr15 bearing steel, with a hard chrome option for higher load and corrosion resistance. Stainless steel construction is available for marine or chemical environments. Surface treatments include phosphate, zinc plating and black oxide.

Yes. Dimensional inspection reports covering bore measurement, hardness values, clearance verification and key dimensional data are available upon request. This documentation supports incoming quality control processes for OEM customers and validates batch-to-batch consistency.

Looking for a Reliable Spherical Bearing Supplier?

Tell us your application requirements or share your technical drawing. Our engineering team will respond within 24 hours with technical feedback and quotation.
Fast response within 24 hours
OEM & bulk orders supported
Global shipping available
Contact us now for pricing & samples
We don’t compete on lowest price. We compete on stability, precision and reliability.
