Custom 4-Link Suspension Kits
From Rock Crawling to Drag Racing – We Engineer & Mass Produce High-End Custom 4-Link Suspension Kits for Your Brand.
4130 Chromoly | Precision CNC Machined | White Label Ready
Customize 4-link suspension kits for your brand
4-link suspensions replace leaf springs to deliver precise axle control, eliminating wheel hop and maximizing traction. Essential for rock crawling and racing, our kits provide the geometry your customers demand.
The 4-link kits all customized on your needs
Including the following:

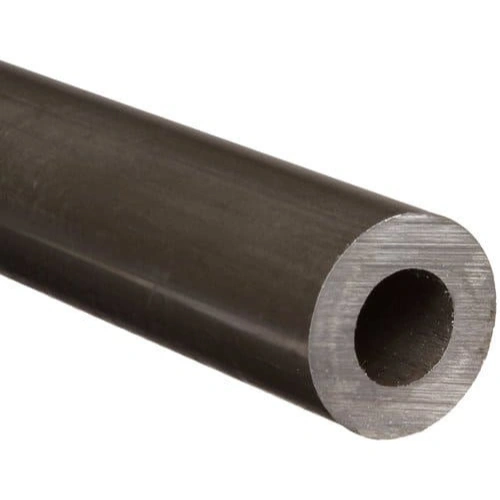

DOM Tubing
Heim Joints
High misalignment spacers

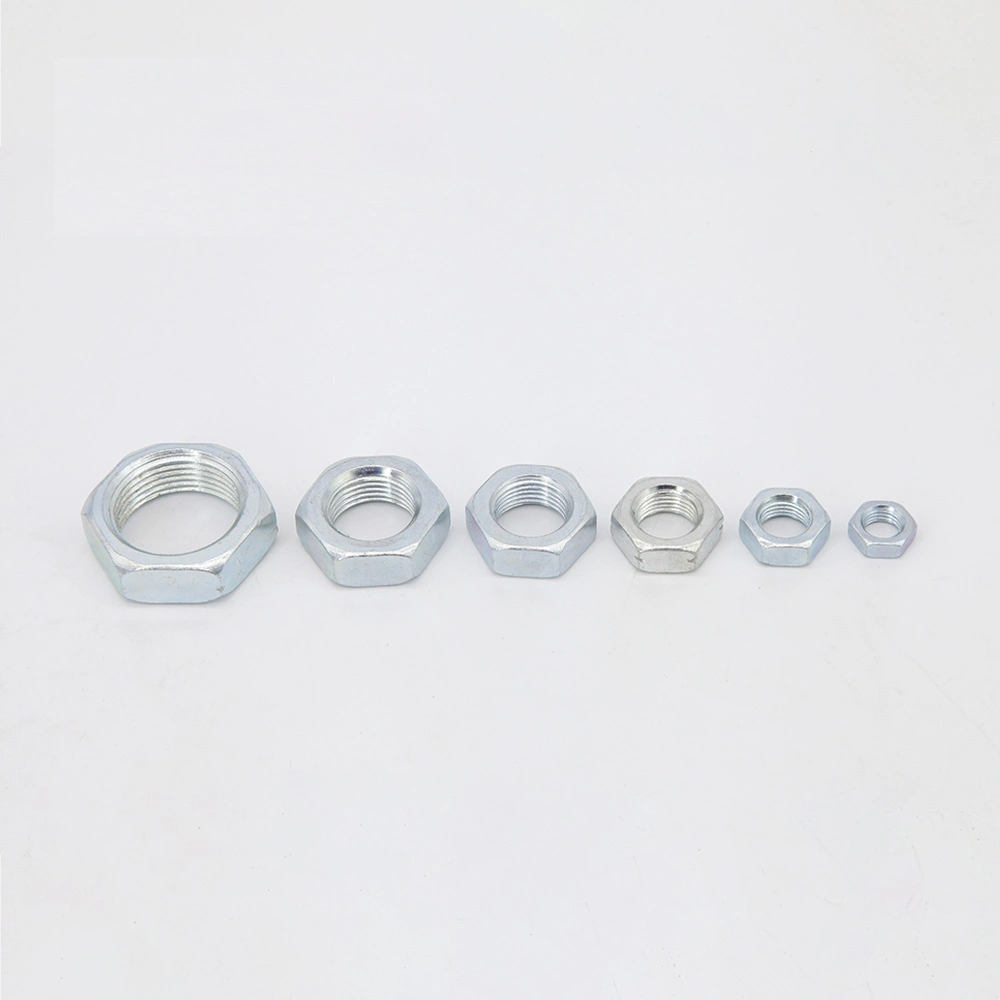

Jam nuts
Tube adapters

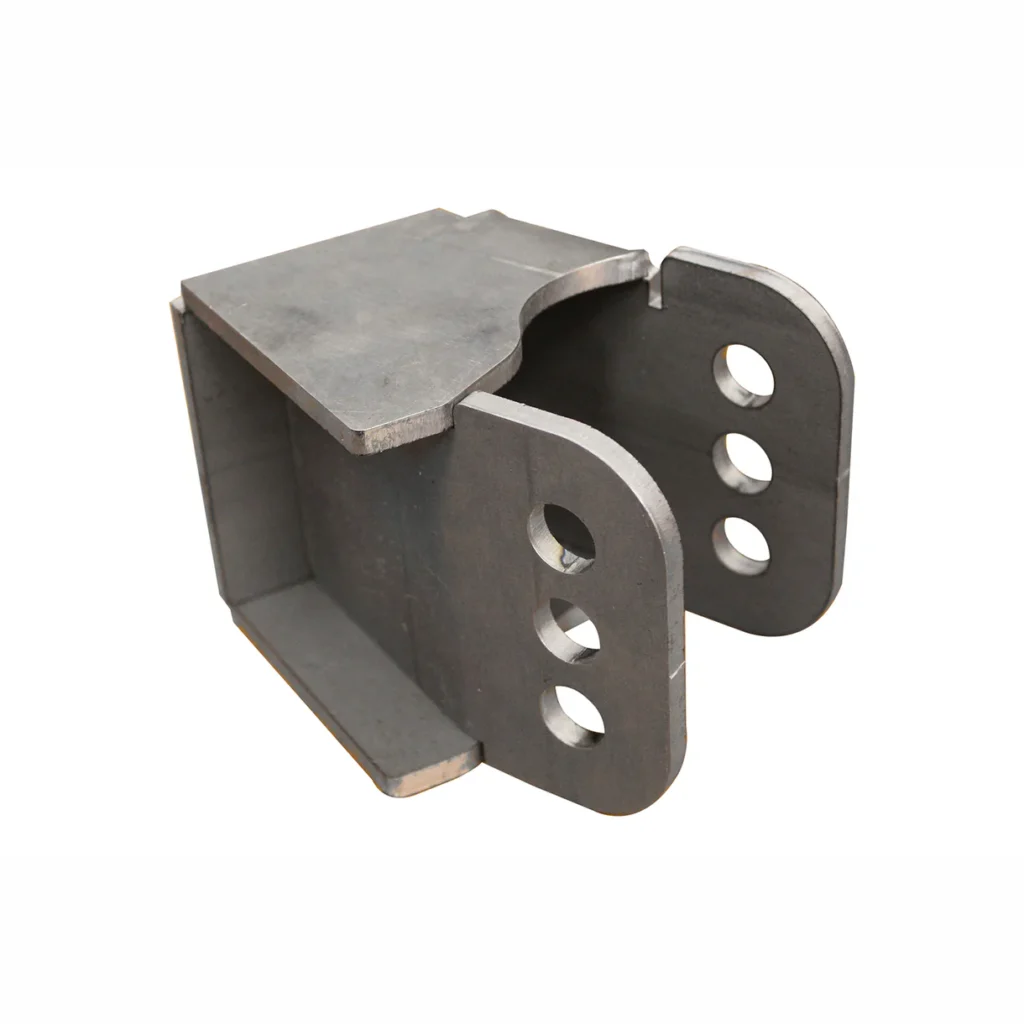

Mounts & brackets
Suspension Solutions We Provide
Double Triangulated 4-Link Suspension
Structure Features
- Both Upper and Lower control arms are angled inward, forming a dual “X” configuration when viewed from above.
- Provides both longitudinal (forward/aft) and lateral (side-to-side) axle positioning simultaneously.
- Eliminates the Panhard Bar: The geometry naturally centers the axle.
Pros
- Superior Lateral Stability: The strongest setup for keeping the axle centered under load.
- Zero Steer: Eliminates “rear steer” during suspension travel, providing predictable handling.
- Maximum Articulation: Allows for extreme suspension flex without binding, making it the gold standard for off-road performance.
Cons
- Packaging Difficulty: Requires significant space for the angled upper links, often interfering with fuel tanks, exhaust systems, or OEM frame rails.
- Complex Tuning: Calculating the correct anti-squat and roll center geometry requires advanced knowledge.
Best Applications
Triangulated Upper 4-Link Suspension
Structure Features
- Upper Links: Angled inward to form a triangle for lateral support.
- Lower Links: Run parallel to the frame rails.
- No Panhard Bar Required: The upper links handle the side-to-side constraints.
Pros
- Packaging Balance: Easier to fit than a double triangulated system; parallel lowers leave room for exhaust and mounting along the frame.
- Versatile Performance: Offers an excellent balance between highway stability and off-road articulation.
- Simplified Installation: Often requires fewer modifications to the main frame rails compared to double triangulated setups.
Cons
- Lateral Limits: Lateral constraint is slightly less rigid than a double triangulated setup (though sufficient for 99% of users).
- Mounting Precision: Requires precise placement of the upper link mounts (truss or crossmember) to avoid binding.
Best Applications
Parallel 4-Link Suspension
Structure Features
- Both Upper and Lower links run parallel to the frame rails (and each other).
- No Inherent Lateral Support: Does not center the axle side-to-side.
- Requires Lateral Constraint: Must be paired with a Panhard Bar or Watts Link.
Pros
- Superior Ride Quality: Maintains a consistent pinion angle throughout travel, eliminating vibration for a smooth, car-like ride.
- Compact & Flexible: Ideal for tight spaces, such as under a pickup truck bed or inside narrow frame rails.
- Easy to Tune: Geometry is straightforward and intuitive.
Cons
- Lateral Shift: Using a Panhard bar creates a slight side-to-side arc movement during travel.
- Limited Articulation: The binding nature of parallel links + Panhard bar limits extreme off-road flex compared to triangulated systems.
Best Applications
Satchell Link Suspension
Structure Features
- “Inverted” Triangulation: Essentially a reverse of the Triangulated Upper system.
- Lower Links: Angled inward to form a triangle (converging under the differential).
- Upper Links: Run parallel.
- No Panhard Bar Required: The triangulated lowers handle lateral constraints.
Pros
- Ultra-Low Roll Center: The geometry places the roll center very low, significantly reducing jacking forces and body roll.
- Cornering Precision: Provides exceptional lateral grip and stability, making it superior for high-speed turns.
- Reduced Lateral Shift: More stable than a parallel 4-link with a Panhard bar.
Cons
- Poor Ground Clearance: The lower links converge under the axle center, creating a low hang point that is vulnerable to rocks (Not for off-road).
- Complex Geometry: Harder to design and retrofit than standard setups.
Best Applications

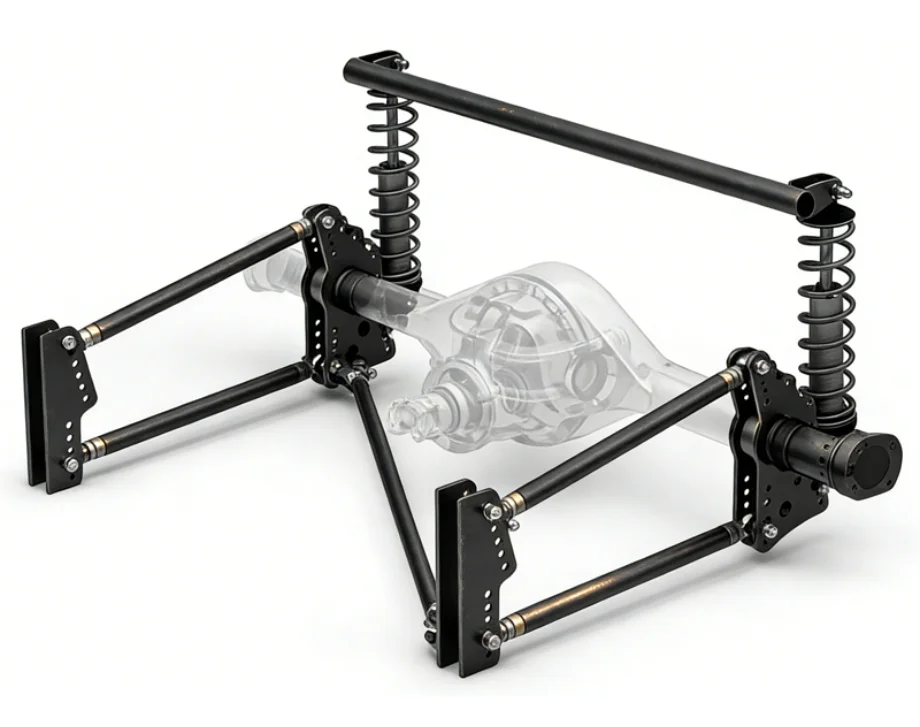

Drag Race 4-Link Suspension
Structure Features
- Designed specifically for straight-line traction and launch control.
- High Adjustability: Features brackets with multiple mounting holes (“Swiss cheese” style) to alter link angles.
- Adjustable Geometry: Allows precise tuning of Anti-Squat and Instant Center (IC).
- Requires a Panhard Bar or Diagonal Link.
Pros
- Maximum Launch Grip: Optimizes weight transfer to plant the rear tires instantly upon acceleration.
- Track Tunable: Can be adjusted quickly for different track conditions (prep) or power levels.
- Rigidity: Built to withstand massive torque loads without flexing.
Cons
- Harsh Ride: Using Heim joints and aggressive geometry results in a rough experience on the street.
- Roll Steer: Geometry optimized for launching often creates “Roll Steer” (axle steering) during cornering, making it unsafe for circuit racing.
- Invasive Installation: Usually requires cutting the floor or “back-halving” the vehicle.
Best Applications
Joint choices: Heim vs. flex joints
Options 1: JMX Series Chromoly Heim Joints (PTFE Lined)
A high-strength spherical bearing constructed from heat-treated 4130 Chromoly steel, featuring a self-lubricating PTFE (Teflon) liner.
Options 2: Rebuildable Flex Joints (Johnny Joint Style)
A heavy-duty joint featuring an internal high-density polyurethane bushing encased in a forged or machined housing.
Why choose SYZ MACHINE?
| Feature | SYZ MACHINE | Competitors |
|---|---|---|
| Material Quality | 4130 Chromoly / Certified Steel | Standard Mild Steel |
| Customization | 100% Tailored Geometry | Generic Universal Kits |
| Joint Options | Heim or Rebuildable Flex | Limited Selection |
| Engineering Support | Expert Consultation Included | Box Shipping Only |
FAQ
What materials are available for custom 4-link suspension kits?
We offer a wide range of high-performance materials to match your specific engineering requirements, including 4130 Chromoly Steel, 52100 Bearing Steel, Carbon Steel, Stainless Steel, and Aluminum Alloy. We can fully customize the material specifications of your 4-link kits to ensure they meet your strength and weight targets.
What is your Minimum Order Quantity (MOQ)?
For kits using standard materials, our typical MOQ starts at 50 sets. However, for projects requiring specialized custom materials (such as specific Chromoly steel tubing sizes), the MOQ may vary based on raw material supplier requirements. Please contact us directly or submit a request form with your specifications, and our sales engineers will provide a detailed assessment and quote.
Do you offer partial shipment services?
Yes, we can arrange partial shipments to align with your inventory or sales schedule. In most cases, we are happy to provide this flexibility without charging additional warehousing fees.
Do you provide custom packaging services?
Yes, we offer full OEM packaging solutions. Simply provide us with your packaging design files and material specifications, and we will produce custom boxes or labels that perfectly match your brand identity.
Quick Response
Send Us a Message
Build Your Suspension Today
Ready to expand your 4-link kits products line? Fill out the form to discuss your specific needs with our engineering team. We’ll help you select the perfect geometry and components.
