How to measure a rod end like a pro

Measuring a rod end accurately requires a digital caliper and a thread pitch gauge to check seven critical dimensions: Bore Diameter, Thread Size/Pitch, Ball Width, Housing OD, Housing Body Width, Head Radial Height, and Misalignment Angle. Relying solely on the thread size is a common mistake; a professional measurement ensures the joint fits your brackets, clears your chassis, and handles your suspension’s full range of motion.

Metric vs. Inch: which sizing system should you choose?

The choice between metric and inch sizing usually depends on your vehicle’s origin or your existing hardware. North American off-road and racing builds almost exclusively use inch (UNF) sizes due to the availability of tube adapters and brackets. Metric sizes (ISO) are standard for European and Asian vehicles, as well as modern industrial robotics.

Heim joint size chart: metric and inch specifications

A Heim joint size chart categorizes rod ends by three primary dimensions: bore diameter, thread size, and housing width. Inch sizes typically range from 3/16″ to 1-1/4″ (UNF/UNC threads), while metric sizes range from M5 to M30. Matching these specs to your linkage diameter and expected load is critical for a safe, bind-free installation.

Rosheim joint and Hyme joint: terminology and misspellings

“Rosheim joint” and “Hyme joint” are common phonetic misspellings of Rose joints and Heim joints. These terms do not refer to different mechanical parts, but rather reflect regional dialects or brand-name confusion. Whether you use the American term “Heim” or the British term “Rose,” the actual component is a spherical rod end.

What is a “slot loading” design in Heim joints?

A slot loading design, or “loader slot,” features a specific notch machined into the housing or race to allow the ball to be inserted and then rotated into position. This construction allows for a high-strength, metal-on-metal fit without deforming the housing during assembly. It is the preferred choice for heavy-duty industrial and agricultural applications requiring maximum radial load capacity.

What is a “self-lubricating” rod end?

A self-lubricating rod end is a maintenance-free joint that uses a low-friction liner—typically PTFE (Teflon)—between the ball and the race. This eliminates the need for external grease. As the joint moves, a microscopic film of PTFE is transferred to the ball, providing a continuous, slick surface that resists debris and operates efficiently from -65°F to +325°F.

2-piece vs. 3-piece rod ends: which design is better?

The primary difference between 2-piece and 3-piece rod ends is the presence of a separate race. 2-piece joints are swaged directly around the ball and are typically used in industrial or budget applications. 3-piece joints utilize a separate race, allowing for tighter tolerances and the inclusion of a PTFE liner, making them the superior choice for high-performance racing and steering.

Single shear vs. double shear mounting explained

Single shear and double shear refer to how the mounting bolt is supported. In single shear, the bolt is supported on one side only, creating a bending force on the fastener. In double shear, the joint is captured between two brackets, supporting the bolt on both sides. Double shear is the gold standard for safety because it eliminates bolt bending and effectively doubles the shear strength.

Understanding articulation and spherical bearing motion

Articulation in a rod end refers to the ball’s ability to rotate and tilt within the housing. While standard bearings only allow for rotation on a single plane, a spherical bearing allows for three degrees of freedom. This multi-axis motion is what prevents a suspension link from binding as the axle moves through its vertical and torsional travel.

The engineer’s guide to right-hand (RH) and left-hand (LH) threads

Right-Hand (RH) and Left-Hand (LH) threads are used on opposite ends of a suspension link to create a “turnbuckle” effect. This allows the user to adjust the link length by simply rotating the center tube, without removing the rod ends from the vehicle. This is the standard method for adjusting toe, centering steering wheels, and setting pinion angles.

Anatomy of a rod end: understanding the housing, ball, and race

Rod end bearing anatomy diagram showing housing ball and race

A high-performance rod end consists of three primary components: a threaded housing (the body), a spherical ball, and an internal race. In 3-piece designs, a PTFE liner is often bonded to the race. The quality of these materials—such as 4130 Chromoly for the housing and 52100 steel for the ball—determines the joint’s total load capacity and fatigue life.

Heim joint vs. Rod end vs. Rose joint: clearing the confusion

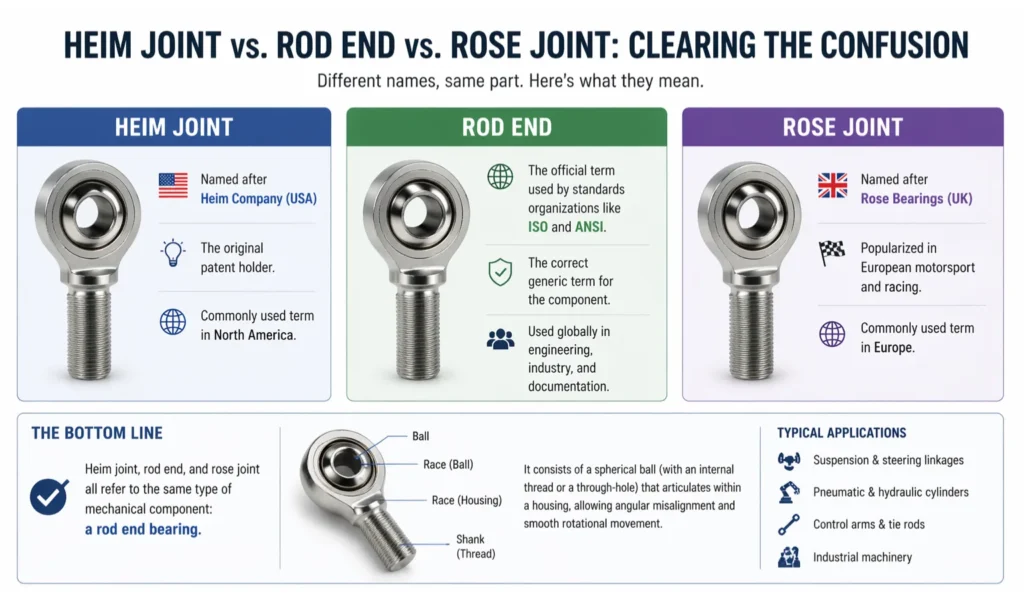

Infographic comparing Heim Joint, Rod End, and Rose Joint bearings. Shows simplified rod-end bearing diagrams, origin (USA, UK, ISO/ANSI), common usage, component labels (ball, race, shank), key function, and typical industrial applications.

There is no mechanical difference between a Heim joint, a Rose joint, and a rod end; they all refer to a spherical bearing housed in a threaded shank. The terms are largely regional: “Heim joint” is the standard term in North America, “Rose joint” is preferred in the UK and Europe, and “rod end” is the universal engineering designation used in technical catalogs.
