We manufacture custom rock crawler suspension and fabrication parts for 4-link builds, trail rigs and aftermarket parts programs. Send your drawing, sample or build specification for 4130 chromoly tubing, heim joints, high-misalignment spacers, tube adapters, jam nuts, limit straps and CNC-machined link brackets matched to your chassis and target geometry.
The rule in rock crawling is simple: keep all four tyres on the ground as much as possible, because the moment one lifts you lose traction. The terrain makes that hard. A front right tyre hitting a two-foot boulder has to compress to the extreme while the front left extends downwards until it finds something to grip.
The solid axle is the foundation. Think of it as a rigid barbell connecting left and right wheels — when the left wheel is forced up by a rock, leverage naturally presses the right wheel down into the ground.
The triangulated 4-link manages axle location. In many crawler layouts, triangulated upper links control lateral axle movement through geometry instead of relying on a Panhard bar. That gives the suspension more freedom to use available travel while keeping the axle located under load.
Then the joints and spacers decide the usable range. Rubber bushings can bind or tear at severe angles. Properly sized heim joints rotate through multiple degrees of freedom, and high-misalignment spacers can support 60°+ setups depending on joint size, bore and mounting width.
Technical references: our rock crawler build guide walks through suspension, steering, drivetrain, armour and wheels in order. The triangulated 4-link guide explains the layout, and the Wrangler 3-link, 4-link or 5-link article helps compare link-count options.
Most inquiries come from builders working around body-on-frame chassis, low-range transfer cases, solid axles, proven aftermarket geometry and manageable vehicle weight. These examples help us identify the suspension package, joint size and bracket requirements faster.
A frequent platform for link conversions and replacement hardware. Body-on-frame construction, solid axles, short wheelbase options and mature aftermarket geometry make it straightforward to quote joints, spacers and link hardware.
Common for lighter custom builds where packaging freedom matters. Lower weight, fewer electronics and deep customization make XJ and older Jeep platforms suitable for 4-link hardware, custom axles and long-travel suspension components.
Durable frames and drivetrains suit low-speed, high-load trail work. We quote these programs around vehicle weight, axle choice, link length and steering layout rather than assuming a universal kit.
Lightweight platforms can use smaller component packages when the tire size, axle swap and target travel are clear. Short wheelbase and low mass reduce load, but joint sizing still needs to follow the finished build.
Narrow track, manageable wheelbase and strong axle-swap support make these common in crawler programs. For IFS-to-solid-axle conversions, send the bracket spacing and link layout before quoting.
Compact truck frames and older Bronco layouts can support link and steering upgrades when the axle, tire size and suspension travel are defined. We quote from chassis measurements rather than platform name alone.
Usually not the first choice for heavy rock-crawling fabrication. Unibody structure, independent suspension and electronic assistance often limit travel and mounting freedom, so these inquiries need more measurement detail.
Designed around stability and suspension performance at speed. When they are adapted for crawling, the parts package changes significantly, so we quote by suspension layout, steering geometry and intended terrain.
For a deeper platform comparison, read which vehicles actually make sense for a rock crawler build. For quotation, the most useful details are chassis, axle type, tire size, target travel and current bracket dimensions.
Use this as a quotation checklist for a double triangulated 4-link rear axle. It separates catalogue parts we manufacture in-house from items listed for build planning, so your RFQ can be priced as a realistic component package instead of a generic kit request.
| Qty | Component | What It Does | We Make It |
|---|---|---|---|
| 4× | DOM Chromoly Tubing | The skeleton of the link system, cut to the required length and matched to the tube adapter size | Yes 4130, cut to length |
| 8× | Heim Joints | Factory rubber bushings bind or tear at extreme angles; heim joints rotate freely in multiple degrees | Yes 3/8″–1.75″ |
| 16× | High Misalignment Spacers | Specified spacers increase usable angle and help prevent metal-on-metal binding at full articulation | Yes stock & custom |
| 8× | Jam Nuts | Freeze your settings — without them, crawling vibration loosens links and throws off geometry | Yes |
| 8× | Tube Adapters | The bridge between hollow tubing and precision joint: weld one end, thread the other | Yes LH & RH |
| 1× | Lower Link Chassis / Crossmember Mounts | Mount the lower links to the chassis or crossmember while preserving ground clearance and link separation | To drawing — CNC |
| 1× | Axle-Side Lower Link Mounts | Weld to the axle tube or truss and locate the lower links at the required mounting width and angle | To drawing — CNC |
| 1× | Upper Link Truss / Crossmember Mounts | Provide the upper-link pickup points on the axle truss or crossmember for triangulated link geometry | To drawing — CNC |
| 2× | Frame-Side Upper Link Mounts | Set the upper-link frame pickup points; multi-hole designs can support anti-squat and roll-center tuning | To drawing — CNC |
Both upper and lower links triangulate, locking lateral axle location into the structure itself. Used to control lateral axle location through the link geometry itself. The parts list above is structured around this common rear-axle layout.
Engine, oil pan and driveshaft clearance usually force a single triangulated setup up front: lower links run parallel to the frame, uppers stay triangulated. Remove the flush mount lower bracket and the 20° axle link mount pair; add 2× outer frame link mounts and 1× axle link mount pair at 0° vertical.
On the mounts and brackets: 4-link setups commonly need frame-side and axle-side link mounts, plus upper-link truss or crossmember mounts depending on layout. We make these to drawing through CNC machining. Send a drawing, sample or photo with reference dimensions. Multi-hole frame mounts can support anti-squat tuning; what anti-squat actually is explains the geometry behind that adjustment.
For adjustable links, specify left-hand and right-hand threads at the RFQ stage so the finished assembly can work as a turnbuckle.
For an 8-joint link system, split the order:
With one end right-hand and the other left-hand, the link becomes a turnbuckle. Rotating the tube retracts or extends both joints together, allowing controlled link-length adjustment during setup.
That helps adjust pinion angle, caster and wheelbase without removing the link from the vehicle. If both ends use the same thread direction, adjustment normally requires disassembly. The engineer’s guide to RH and LH threads covers the detail.
The same principle solves pinion angle: when droop gets deep enough that the driveshaft-to-differential angle threatens the U-joints, rotating the upper links extends them, pushing the top of the axle back and clocking the housing so the pinion points at the transfer case. That is a five-minute adjustment on a turnbuckle link system and a workshop job on a fixed one.
Nine families across tubing, joints, hardware and fabrication. All machined or prepared through our own 35,000 m² workshop, so a component package can be quoted with one shipment plan and one set of paperwork.
4130 chromoly tubing cut to length for link assemblies, with special sizes available. Match tube OD and wall thickness to the tube adapter, joint size, vehicle weight and intended use. Send tube OD, wall, finished length and quantity for quotation.
Heat-treated 4130 chromoly housings with 52100 bearing steel balls, hard chrome plated, with PTFE liners for self-lubrication and longevity. The 1.25″, 1.5″ and 1.75″ series carry 4-link and monster truck loads; component packages can include rod end spacers, tube adapters and jam nuts. Why the liner matters as much as the housing.
Forged 4130 chromoly housing with 52100 bearing steel, zinc plated, and rebuildable rather than replaceable — which is the whole argument for running them in control arms that live in mud. Tube adapters and jam nuts included. For rebuildable control-arm programs, the serviceable design can reduce replacement frequency compared with a non-rebuildable joint.
4130 chromoly as the baseline, with 4340 and 300M available where the tyre size and torque justify the material. CNC machined, finished in yellow or silver zinc, in adjustable and fixed versions. Bigger tyres act as a lever — the larger the tyre, the stronger every connection in the chain has to be.
The part that turns a joint’s rated angle into a usable assembly angle, supporting 60°+ setups on suitable joint and mounting combinations while helping keep the link off metal-on-metal contact at full droop. Stainless 303/304 is the crawler-grade choice — hard enough, and rust-proof so the spacer never seizes to the ball in mud. Cone spacers and misalignment washers in stock and custom sizes. Why misalignment angle decides where a joint binds.
Weld-in adapters in round, hex and heavy-wall sizes, with 4130 chromoly as the main specification and mild steel optional. Match the adapter material and tube size to the link tubing to keep the welded assembly consistent in high-load link systems. How bung adjuster nuts work.
Right-hand and left-hand jam nuts for rod ends and tube adapters, with steel sizes from 10-32 through 1 1/4-12 and metric sizes available. Left-hand versions can be grooved or yellow zinc identified for assembly control.
Typically specified slightly shorter than the shock’s maximum extension so the strap takes load before the suspension reaches full droop, helping protect shocks, brake lines and heim joints from over-extension. 4130 chromoly end tabs heat-treated to HRC35–38 to stop hole distortion, with a stainless guard spreading load and cutting friction.

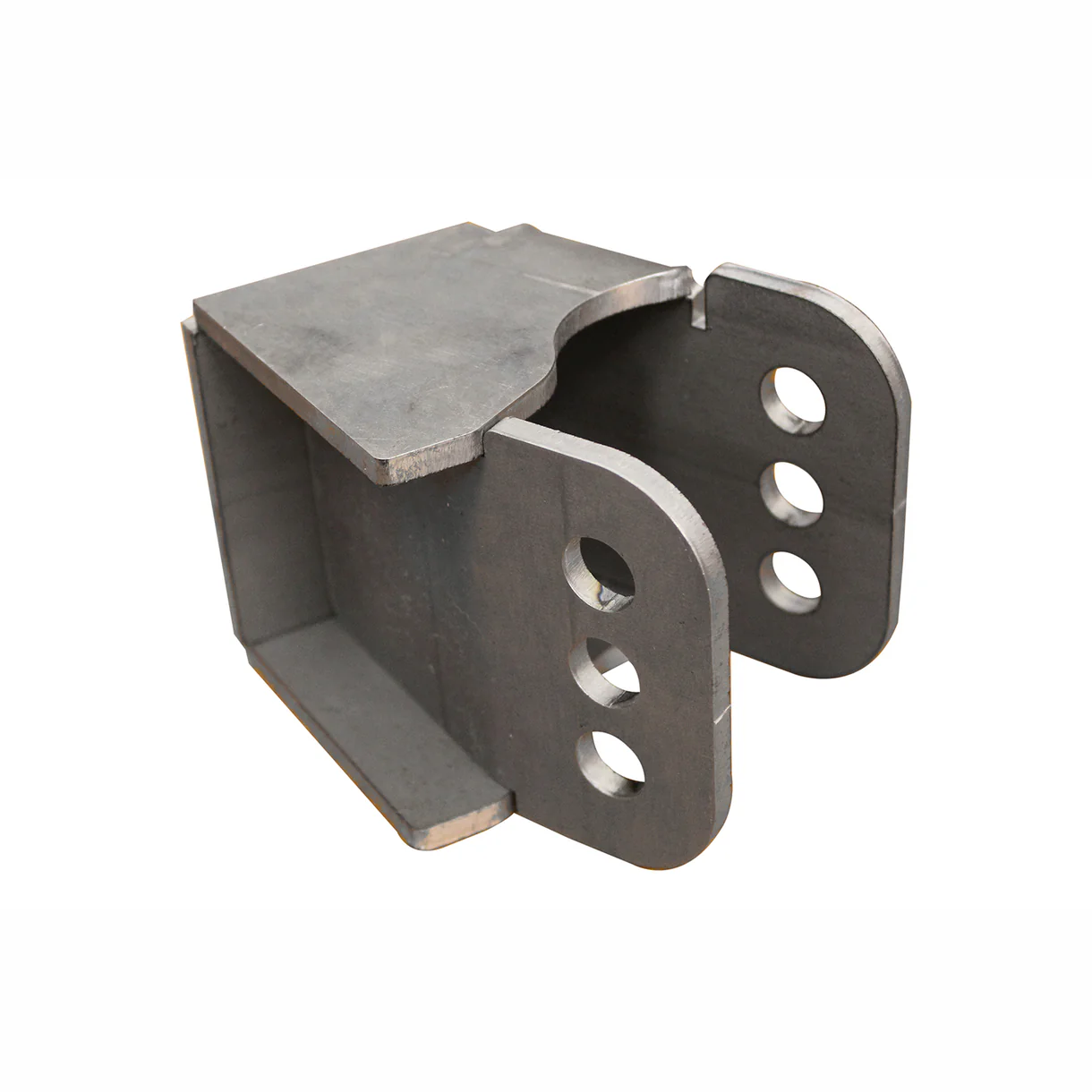

Frame-side link mounts, axle-side link mounts, upper-link truss or crossmember mounts and custom suspension tabs, machined to your drawing rather than pulled from a catalogue. Adjustable and fixed control arms and flex arms are an established product family; brackets are a drawing-to-part job. Send a drawing, a sample, or a photo with a measurement reference.
Rock crawler builds combine 4-link suspension parts, travel-limiting hardware, knuckle components and steering support. This table separates each component’s role so the material notes do not imply every part is required in every 4-link setup.
For link tubing, tube adapters and many suspension mounts, 4130 chromoly is preferred because it combines high yield strength with good weldability when specified correctly. On a crawler that lands on rocks and loads links at awkward angles, this helps the suspension package hold geometry under repeated impact.
The material logic has to carry through the whole assembly: tubing, weld-in adapters, joints, spacers, jam nuts and mounts should be specified together rather than selected as isolated parts.
| Component | Role in Build | Material Standard | Why |
|---|---|---|---|
| 4130 Link Tubing | 4-link core | 4130 Chromoly, cut to length; 4140 / 4340 available by requirement | Forms the main link body and must match the adapter size and welding specification |
| Tube Adapters | 4-link core | 4130 Chromoly, mild steel optional | Welds into the tubing and carries the threaded joint; material should be specified with the tube |
| Heim Joints / Rod Ends | 4-link core | Heat-treated 4130 chromoly housing + 52100 bearing steel ball + PTFE liner | Provides the articulation point; housing strength, ball hardness and liner quality all affect service life |
| Johnny Joints | 4-link / control-arm option | Forged 4130 chromoly housing + 52100 bearing steel, zinc plated | Rebuildable joint option for control arms and link programs where serviceability matters |
| High Misalignment Spacers | 4-link core | Stainless 303 / 304, carbon steel or chromoly by requirement | Increases usable joint angle and helps prevent metal-on-metal contact at full articulation |
| Jam Nuts | 4-link core | Zinc-plated carbon steel; aluminum option available | Locks the threaded adjustment and helps identify left-hand / right-hand assemblies |
| Link Mounts & Brackets | Mounting / fabrication | Steel, chromoly or customer-specified plate material | Frame-side, axle-side and truss/crossmember mounts are made to drawing or sample |
| Limit Strap Tabs | Travel limiting | 4130 chromoly, HRC35–38 | Not a 4-link geometry part, but protects shocks, brake lines and joints from over-extension |
| Ball Joints | Knuckle / suspension support | 4130 chromoly, upgrading to 4340 or 300M | Relevant to the wider rock crawler suspension package, especially where tire size and torque increase |
| High Steer Arms | Optional steering support | 6061-T6 / 7075-T6 billet or steel by requirement | Not required for a 4-link suspension setup, but often quoted with solid-axle rock crawler steering geometry |
One thing the material list cannot fix: geometry. When a long-travel suspension droops, a fixed-length drag link can steer the wheel through suspension movement, creating bump steer. Correct it with geometry and adjustable ends: how to avoid bump steer and our bump steer kits cover the fix. Worth reading with how to prevent off-road rollovers.
A rock crawler parts program depends on consistent materials, thread direction, bore fit, spacer geometry and documentation across every component in the assembly.
Tubing, joints, spacers, adapters, jam nuts, straps and custom brackets are machined or prepared in the same 35,000 m² factory on 19 CNC machines and 12 lathes. A component package can be quoted with one set of paperwork and one point of contact instead of coordinating joints, spacers, adapters and hardware across separate suppliers.
Left- and right-hand thread is available across the joint, jam nut and tube adapter range, so you can order a turnbuckle-adjustable system rather than discovering after delivery that every adjustment means dismantling a link.
4130 chromoly housings, 52100 bearing steel balls, stainless 303/304 spacers, heat-treated strap tabs. Material certificates, hardness reports and dimensional records are available on request for production and audit files.
Non-standard bores, thread pitches, shank lengths, bracket geometry and misalignment spacers are ordinary work here. Send a drawing, a sample or a failed part; prototypes are typically ready in 4–6 weeks before a production run.
From 50 pieces or $500, with flexibility by product line. For development programs, samples or small trial orders can be discussed before a production batch.
A direct manufacturing team with 26 years of vehicle-parts production, ISO 9001 certification and SGS verification. Technical questions can be reviewed with the people responsible for machining and inspection.
The commercial details builders, distributors and aftermarket brands usually need before sending a drawing or sample.
Our standard minimum is 50 pieces or a $500 order value, flexing by line — some catalogue items go down to a single piece. Tell us the product family and target volume so we can quote a specific MOQ for the program.
A 30% deposit with the 70% balance before shipment, by wire transfer or PayPal. Flexible terms can be discussed for long-term partners once there is an ordering history behind the account.
Samples are available so you can check thread fit, bore and misalignment on the actual build before committing. On custom development the sample cost is negotiable and typically refunded once the production order lands.
Bore, thread pitch, shank length, ball width, spacer geometry, material and finish are all yours to specify, with laser engraving or stamping for logos, part numbers and batch codes on branded programmes.
Incoming material inspection, in-process control during production, and final inspection before packing, with pull testing in-house. Material certificates, hardness reports and dimensional records available on request.
We ship to more than 20 countries and handle export documentation ourselves. Packaging can be neutral, branded or retail-ready, for component packages sold under your own brand.
Certified and audited: our factory holds ISO 9001 certification with SGS verification and RoHS compliance. For chassis and suspension components, documentation can be prepared with the quotation or production file instead of being treated as an afterthought.
Send the information below and we will return a build-specific component quote for your rock crawler suspension or fabrication program.
The platform, the link layout, and the sizes if you have them. If you do not, send the tube OD and wall, the bracket spacing and the travel you are targeting — that is enough for us to specify joints and spacers.
We come back with joints, spacers, adapters and jam nuts as a complete component list, split left- and right-hand where required, plus material and finish options for the intended load.
Sample approval, production under three-stage inspection, branded packaging and export documentation. Before or after the sale, the same engineering and sales team stays with the program.
Send your link layout and get a build-specific 4-link component quote.
What builders, distributors and aftermarket brands ask most often before ordering rock crawler suspension parts.
For a double triangulated rear axle: 4 lengths of DOM chromoly tubing, 8 heim joints, 16 high-misalignment spacers, 8 jam nuts, 8 tube adapters, 1 flush-mount lower triangulated bracket, 1 axle link mount pair at 20°, 1 set of truss link mount brackets, and 2 adjustable inner frame link mounts at 20°. A single triangulated front setup drops the flush-mount lower bracket and the 20° axle link mount pair, and adds 2 outer frame link mounts plus an axle link mount pair at 0° vertical. The full table is above.
It turns each link into a turnbuckle. With right-hand thread at one end and left-hand at the other, rotating the tube retracts or extends both joints together, so link length, pinion angle and caster can be adjusted during setup without removing the link. For an 8-joint system, split 8 heim joints, 8 jam nuts and 8 tube adapters into 4 left-hand and 4 right-hand each.
It scales with vehicle weight, power, tire diameter, link length and mounting width. Our heim joint range runs from 3/8″ through to 1.75″, with larger 1.25″, 1.5″ and 1.75″ series commonly used for heavy crawler, off-road and extreme-duty link applications. Send the vehicle weight, tire size and link tube dimensions and we will specify the suitable size.
On most crawler link systems, yes. A standard rod end has limited angular range, and at full articulation the link can reach metal-on-metal contact. High-misalignment spacers increase usable angle and can support 60°+ setups depending on joint size and mounting width. Stainless 303/304 is often specified for corrosion resistance in mud and water exposure.
Yes. Frame-side link mounts, axle-side link mounts, upper-link truss or crossmember mounts and related suspension tabs are made to drawing or sample through our CNC machining service. Send a drawing, sample or photo with reference dimensions. Tubing, joints, spacers, adapters, jam nuts and straps can usually be quoted faster because they are established product families; brackets and mounts quote from the drawing or sample.
To keep the welded assembly consistent. Welding a mild steel adapter into 4130 DOM tubing can create a weaker point in a high-load link. Matching adapter material to the tubing helps keep strength continuous through the joint and reduces one common specification risk in incoming drawings.
Limit strap length is typically specified slightly shorter than the shock’s maximum extension, so the strap takes load before the suspension reaches full droop. That helps protect shocks, brake lines and joints from over-extension. We supply 8″ to 44″ in 2-inch increments, with 4130 chromoly end tabs heat-treated to HRC35–38.
Standard MOQ is 50 pieces or a $500 order value, with flexibility by product line. Some catalogue items can support sample or single-piece orders, which helps verify the design before committing to a batch. Custom sample costs depend on development work and can be discussed during quotation.
Yes. Laser engraving or stamping for logos, part numbers and batch codes, custom finishes, and neutral, branded or retail-ready packaging are available for OEM and aftermarket programs. MOQ on customized items may differ from catalogue lines; send the requirement and we will quote it specifically.
Send your chassis, axle, link layout, target quantity and any drawing or sample photos. Our team will review the rock crawler suspension parts and return a build-specific quotation. Rm.701, No.23, Lane 466, YinDu Rd. SH, CN · 0086-21-34689886 · [email protected]
