Why Is the Satchell Link So Powerful Yet So Rare?

From SCCA champions to FSAE labs, the Satchell Link offers unrivaled roll center control. Dissect the engineering genius, fatal flaws, and raw physics behind this legendary yet elusive racing suspension.
Satchel link in FSAE

Why Is the Satchell Link So Powerful Yet So Rare?

If you’ve ever watched SCCA Solo (autocross) events, you’ve probably been amazed by Jeff Kiesel’s adorably compact yet impossibly fast Bugeye Sprite. This “monster” that has dominated 10 consecutive SCCA Solo National Championships hides a secret deep in its chassis—one that fascinates mechanical engineers but gives shop owners headaches: the Satchell Link suspension system.

In the eyes of keyboard racers and casual enthusiasts, four-link or three-link setups are the mainstream. But why is the Satchell Link considered the “holy grail” of chassis geometry in top-tier professional racing and hardcore engineering competitions, while remaining virtually invisible on 99% of modified cars and even high-performance production vehicles?

What Is a Satchell Link?

The Satchell Link was popularized by renowned chassis engineer Terry Satchell. Terry Satchell worked for Ford Motorsports, Penske Racing (helping Al Unser Jr. win the Indy 500), and multiple NASCAR teams—his designs carry a distinct racing DNA. Simply put, the Satchell Link is a highly evolved “triangulated four-link”.

Conventional triangulated four-links (like those on 1960s GM A-bodies) typically angle the upper links inward in a V-shape to laterally locate the axle. The Satchell Link flips this arrangement: it keeps the upper links parallel while angling the lower links at 20-45 degrees (specific angle depends on design goals) toward the vehicle’s centerline.

This design, through extremely precise geometric interference, completely eliminates the need for a Panhard bar or Watts link. In theory, it can provide an extremely low roll center and perfect anti-squat characteristics—a solution practically born for the racetrack.

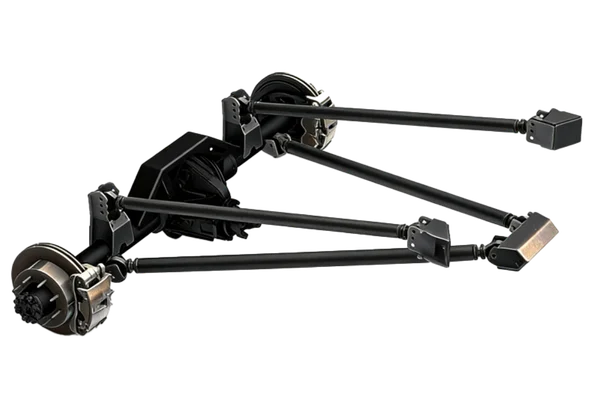

Satchel link suspension system

Five Major Flaws of the Satchell Link

If it performs so well, why hasn’t it conquered the streets? Because in practical applications, it’s one of the most “exclusive” designs out there.

(1) The Conflict with Exhaust Routing

This is the biggest barrier preventing the Satchell Link from entering street car applications. Most rear-wheel-drive cars need exhaust pipes routed past the rear axle toward the tail. When modifying a Fox Body Mustang (1979-2004), you’ll find that the Satchell Link’s lower links occupy almost all available space on both sides of the driveshaft. You can’t run traditional dual exhaust unless you accept loud side pipes or route the exhaust into the former rear seat area like a race car.

(2) The Battle with Fuel Tanks and Chassis Structure

Muscle cars and classic cars typically mount fuel tanks at the rear center, behind the axle. To achieve the ideal convergence angle, Satchell Link lower links must invade space originally occupied by the fuel tank. This forces owners to cut the subframe and install expensive racing fuel cells. For Pro-Touring enthusiasts who just want a daily driver, this adds enormous modification costs and practicality losses.

(3) Installation Precision Requirements

The Satchell Link is extremely sensitive to tolerances. The system demands absolute symmetry between left and right lower links, and the convergence point height must be calculated through complex 3D kinematic simulation. If welding positions deviate by more than 2mm, the roll center will shift violently during cornering, causing unpredictable rear steer and making the vehicle extremely dangerous.

(4) High Manufacturing Costs and Commercial Desert

Due to extensive chassis modifications required, virtually no “bolt-on” kits exist for mainstream vehicles. This means every Satchell Link setup is fully custom-fabricated. From selecting precision rod ends to machining chassis reinforcement brackets, the total cost is typically 1.8-2.2 times that of standard four-link kits (custom Satchell Link runs $1500-2500, while standard four-link kits cost $800-1200).

(5) The Binding Problem

This is the final nail in the coffin for Satchell Link’s civilian adoption. If you use traditional rubber bushings, the suspension will experience severe physical interference (binding) during large suspension movements. For smooth operation, you must use metal rod ends (Heim joints), but these transmit every road vibration and metallic impact directly into the cabin.

**Note** Binding is not an inherent design flaw of the Satchell Link, but rather a compromise when using rubber bushings. With rod end connections (Heim joints), the suspension moves completely freely without any binding. The 1979-2004 Fox Body Mustang used similar geometry but with rubber bushings, suffering severe binding issues; race versions using rod ends had no such problems. The tradeoff is the noise mentioned earlier—rod ends transmit every road vibration directly into the cabin.

Three Advantages of the Satchell Link

Is it really all drawbacks? No—quite the opposite. When practicality is abandoned, the Satchell Link demonstrates almost terrifying dominance on a pure physics level.

(1) Ultimate Packaging Compactness

While it displaces exhaust and fuel tanks, the system itself is very “flat.” Compared to a Watts link that occupies vertical space above or below the rear axle, the Satchell Link tucks all links forward and below the axle. For compact cars like the Bugeye Sprite with extremely limited rear space, it’s the only solution that provides world-class axle location without increasing rear overhang.

(2) Unparalleled Tuning Flexibility

By changing the mounting height of the lower links on the chassis, engineers can adjust the roll center almost at will. More importantly, it can achieve extremely high “anti-squat percentages.” During full-throttle launches, this geometric structure acts like an invisible hand, pinning the rear wheels firmly to the ground.

(3) Inherent Structural Strength

Because the lower links handle primary thrust loads and lateral location, overall rear axle support stiffness is extremely high. Under lateral G-forces, its deflection is much less than systems using Panhard bars.

Who’s Using The Satchel Link?

The Satchell Link always appears where “performance trumps everything.”

SCCA Autocross / Solo Champions

  • Jeff Kiesel’s Bugeye Sprite: This 10-time championship car uses a Satchell Link with a De Dion rear axle. On tight courses requiring frequent, aggressive direction changes, the Satchell Link’s ultra-low roll center makes this little car corner like it’s on rails.
  • Factory Five Cobra Replicas: While street versions use traditional four-links for cost reasons, hardcore race versions frequently feature Satchell Links. These cars share common traits: short wheelbases (80-90 inches), extreme light weight, and complete disregard for noise.

FSAE (Formula SAE) Engineering Labs

If you’ve been to FSAE competitions, you’ll find it’s a Satchell Link stronghold. At the 2019 FSAE Michigan competition, at least 3 teams used Satchell Link variants—all from top engineering schools. They have powerful 3D geometry optimization capabilities to avoid all interference risks and extract that last 1% of handling performance.

Professional Racing

  • Terry Satchell Himself: In the 1990s, when designing race cars for the Newman/Haas IMSA Le Mans team, he incorporated his geometric philosophy.
  • Desert Racing and Saleen: Whether it’s Walker Evans’ desert race trucks facing high-impact scenarios or certain Steve Saleen premium projects, traces of this mechanism can be found.

Street Car

  • Jensen Healey’s Waterloo: It’s one of the rare production cars that attempted a Satchell Link from the factory. However, for comfort, the factory used extensive rubber bushings, leading to severe suspension binding and extremely weird handling. This proved that: Satchell Link is too potent for cost-conscious production cars.
  • HDR’s Commercial Attempt: In the 2000s, Highland Daytona Racing offered conversion kits for Mustangs and Camaros priced at $2000-3000 (about 50% more than mainstream competitors like the Chris Alston G-bar). Ultimately, due to extensive chassis modifications required, severe noise from rod end connections, and tuning complexity, sales fell far below expectations, losing to cheaper, easier-to-install competitors.

Comparison with Standard Triangulated Four-Links

For clearer understanding, here’s a simple comparison table:

CharacteristicStandard Triangulated 4-LinkSatchell Link
TriangulationUpper links (angled inward)Lower links (heavily angled inward)
Roll CenterTypically 150-300mm above groundCan be lowered to 50-150mm above ground
Exhaust CompatibilityGoodVery Poor
Rear Seat SpaceCan be retainedMust usually be sacrificed
Primary ApplicationStreet cars, mainstream performanceHardcore track, custom chassis, engineering competitions

Conclusion

The Satchell Link is like a hand-forged katana in the chassis world: extremely sharp, exquisitely beautiful, but with extremely high maintenance costs and only unleashing its full potential in specific hands.

For the vast majority of muscle car enthusiasts, it’s probably too “hardcore.” But when you stand trackside watching short-wheelbase race cars carve corners at impossible angles and speeds, remember: beneath that roaring exhaust and compact chassis likely beats a Satchell Link “mechanical heart.”
