Why Do Most Overland Vehicles Use Parallel 4-Link Suspension?

Most overland vehicles run parallel 4-link suspension—not because it's superior on paper, but because it solves real packaging constraints while delivering predictable performance across thousands of miles.

Last month, a customer rolled into our shop with his Ford F-350. He wanted to build this truck into a proper overland rig—something that could handle crossing the Americas without breaking a sweat. He’d been doing his research online and was dead-set on a triangulated 4-link setup. “All the rock crawlers run them,” he said. “Must be the way to go.”

We started the mock-up, and that’s when reality hit: those angled upper links ran straight through where he’d just installed a 60-gallon auxiliary fuel tank. Now he had two choices—relocate the tank (adding $1,500 to the bill plus messing with his center of gravity), or scrap the triangulated plan. He went with parallel 4-link, and we finished the build on time and on budget.

This same conversation happens in our shop at least once a month. So let’s talk about something I see getting misunderstood all the time: why most overland vehicles end up running parallel 4-link suspension. This isn’t about which setup is “better”—it’s about picking the right tool for the job.

The Real Story: Your Fuel Tank Calls the Shots

Here’s the thing about building an overland truck—your fuel tank placement is going to make a lot of decisions for you, whether you like it or not.

A serious overland setup needs at least 40-60 gallons in the main tank, and most folks add an auxiliary to push total capacity up to 80-100 gallons. This isn’t about being fancy. When you’re in Baja or deep in Patagonia, you might go 300 miles between gas stations. That big fuel tank is survival gear, plain and simple.

And here’s the kicker: these tanks almost always live in the same spot—12-18 inches forward of the rear axle, tucked inboard of the frame rails. That location balances center of gravity, crash protection, and service access. Problem is, it’s right in the path of where triangulated upper links want to go.

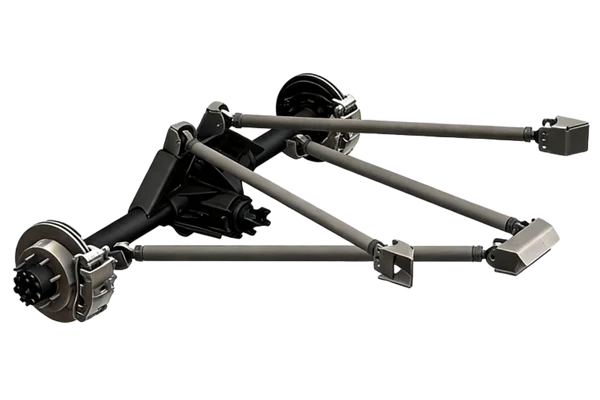

Here’s how triangulated setups work: the upper links angle outward from the axle centerline—usually 15 to 25 degrees—and run about 30-40 inches to the frame mounts. No Panhard bar needed, which sounds great on paper. But in the real world, those angled links are heading straight for your fuel tank.

I’ve run the numbers more times than I can count. Take a typical triangulated upper link at 20 degrees over 36 inches—that gives you about 12 inches of lateral offset (36 × sin(20°) ≈ 12.3 inches, if you want to get precise). Most fuel tanks run 20-24 inches wide. Do the math, and you’ve got a serious clearance problem with both links.

You’ve got two options at that point: move the tank (expensive and throws off your weight distribution), or go with parallel 4-link instead.

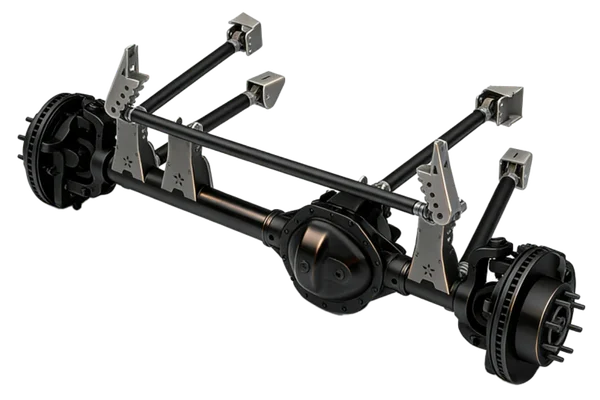

With parallel, all your links run straight along the vehicle centerline. Upper links sit outboard of the axle tubes, track alongside the frame rails, and clear right over or in front of the fuel tank. The only extra piece you need is a Panhard bar—basically a straight tube running across the chassis for lateral location. Simple and effective.

That’s why if you spend any time on overland forums, you’ll notice over 80% of full-size truck builds run parallel. Not because it’s inherently superior, but because it actually fits the real-world packaging you’re dealing with.

Overland Rigs Aren't Rock Crawlers—Different Game Entirely

Here’s where a lot of builders get tripped up: they spec suspension for an overland truck like they’re building a dedicated rock crawler.

Rock crawlers need wild articulation—we’re talking 20-30 inches of wheel travel. They need geometry you can dial in for climbing near-vertical obstacles. Anti-squat might run as high as 110-150%, and you’re making adjustments trailside all the time. Triangulated 4-links shine in that world because they deliver aggressive geometry with minimal lateral movement.

But that’s not what an overland truck does most of its life.

Here’s what your typical overland trip actually looks like: 80% paved and gravel roads, 15% forest service roads and desert tracks, maybe 5% truly technical terrain. And here’s the part people forget—your weight swings massively. You might be 8,000-8,500 lbs empty, then push up to 10,500-11,000 lbs when you’re loaded with gear, water, and a full fuel load.

For that kind of duty cycle, what you really need is:

Moderate travel (8-12 inches does the job—you don’t need extreme numbers)
Behavior that stays predictable whether you’re empty or maxed out
Anti-squat somewhere in the 80-120% range for comfort across mixed terrain
Reliability you can count on—not something you’re constantly tuning in the middle of nowhere

Parallel 4-link hits all those marks perfectly.

Here’s one of the key things about parallel 4-link: in top view, all your links run parallel—that’s where the name comes from. But in side view, you’re still angling the upper and lower links to set your instant center, which is what controls anti-squat. Sounds abstract, right? Here’s what it means in practice:

The geometry stays relatively stable and predictable. Once you’ve dialed in your anti-squat value, it doesn’t shift around much as your load changes. When you hit a bump or compress the suspension, your suspension behavior stays relatively consistent.

Why does this matter for overland? Load variability.

Your overland truck (using a Ford F-250/350 as an example) weighs approximately 8,000-8,500 lbs empty. Fully loaded with gear, water, and fuel, you’re pushing 10,500-11,000 lbs. That 2,000-2,500 lb weight swing has a real impact on suspension behavior. Parallel configuration doesn’t get too worked up about these weight changes because the underlying geometry is stable.

In my 10 years building overland rigs, I’ve seen this pattern over and over. Customer comes in wanting triangulated because it sounds more hardcore. I’ll ask: “How often are you planning to adjust your anti-squat? You going to be tuning link angles on the trail?” Answer’s always no. So why pick a system that needs constant fiddling to work its best?

What makes overland traveling work long-term isn’t extreme capability—it’s reliability and predictability. Parallel 4-link delivers that “set it and forget it” confidence you need when you’re 500 miles from the nearest town.

Installation Simplicity Matters More Than You Think

If you’re doing this yourself or running a fab shop, installation complexity hits you right in the wallet and the schedule.

Parallel 4-link is just plain easier to install:

Fewer mounting points: You need 2 combined brackets on the frame and axle—that’s it. Triangulated needs 4 separate mount points you’ve got to locate and fixture
Easier to visualize: Everything’s parallel. Tape measure and level—you’re golden. No angle calculations, no converging points to plot out
Less time under the hood: With an experienced fabricator running proper jigs, parallel takes 4-6 hours of welding. Triangulated? More like 8-10. And if you’re DIY, double those numbers
Simpler mock-up process: You don’t need to calculate where your links converge—just keep them parallel and you’re done

For a fab shop, that time difference translates to $400-600 in labor costs (at typical $100/hr rates). For a DIY builder, it’s the difference between a successful weekend project and a frustrating month-long ordeal.

From our perspective at SYZ Machine, the manufacturing side tells the same story. Combined brackets for parallel setups run about 25% cheaper than separate triangulated brackets. Fewer CNC setups, simpler fixturing, less quality control overhead. It all adds up.

And Panhard bars? Dead simple to make—straight DOM tube, two rod ends, done. Any shop with basic machining capability can knock one out. You can find compatible parts anywhere in the world. Triangulated upper links, on the other hand, need precise angle cuts and custom brackets. You’re looking at higher skill requirements and more specialized tooling.

That simplicity pays dividends down the road too. Need to make changes or repairs? Parallel systems are way more forgiving. I had a customer back in 2020 who budgeted $8,000 for an overland conversion. He insisted on triangulated, and by the time we dealt with fuel tank relocation and the extra fab work, he was at $11,500. If he’d gone parallel from day one, we’d have stayed right on budget.

The Panhard Bar "Problem" That Really Isn't

Source: YouTube Creator KruseBuilt

Every single time parallel 4-link comes up, someone jumps in with: “Yeah, but Panhard bars have that lateral movement issue. Plus they eat up exhaust space and you’ve got another part to maintain.”

Let me put some real numbers to this so-called problem.

Lateral movement: Sure, a Panhard bar moves in an arc as the suspension cycles. How much are we actually talking about? A typical 36-inch Panhard bar (mounted roughly horizontal) gives you maybe 1.0-1.4 inches of lateral movement through 10 inches of suspension travel.

Your overland truck typically runs 2-3 inches of tire-to-fender clearance. Even at 1.4 inches of movement, you’re nowhere close to a problem. This only becomes a real concern when you’re rock crawling with razor-thin clearances. Overland rigs don’t work in that territory.

Exhaust routing: Full-size overland trucks have plenty of room under the bed. Route your exhaust over the Panhard bar, under it, or use some mandrel bends to work around it. Diesel trucks—which a lot of serious overland rigs are running—give you even more flexibility with exhaust placement.

In all my years doing this, exhaust routing has never killed a parallel 4-link build. You just plan for it upfront. Not rocket science.

Cost: A quality Panhard bar runs $200-300. Sounds steep until you compare it to the alternatives. Relocating a fuel tank to make triangulated work? That’s $500-800. Extra fab time from more complex installation? Another $400-600 in labor.

From a total ownership perspective, spending $200-300 on a Panhard bar is money well spent.

Maintenance: Yeah, a Panhard bar has 2 rod ends you need to grease every 5,000 miles or so. But here’s the thing—triangulated setups have 4 upper link rod ends that need the same treatment. The maintenance burden is basically a wash. And if your lower links run bushings instead of rod ends, parallel might actually be less work overall.

Plus, Panhard bar rod ends come in standard sizes—1.25″ shank is super common. If you’re stuck in some remote location and need a replacement, odds are decent a local ag shop will have something that works. That kind of parts availability is huge when you’re doing serious overland travel.

Why 80-120% Anti-Squat Is the Sweet Spot

Let me get a bit technical for a minute, but I’ll keep it grounded in what actually matters.

Why does this matter for overland? Load variability.

Research backs this up: 80-120% anti-squat works well for “almost every off-road application excluding desert racing” (pulled straight from Crawlpedia’s technical docs). That range is perfect for what overland rigs actually do:

Forest roads: You want compliance and comfort (80-100% anti-squat)
Desert washboard: You need more control (100-120% anti-squat)
Loaded highway cruising: Stability matters (90-110% anti-squat)

Parallel 4-link lets you dial in anywhere in that range by adjusting your link angles in side view—the convergence between upper and lower links. Once you’ve got it set, it delivers consistent performance whether you’re empty or fully loaded, pavement or dirt.

Compare that to drag racing (140-180% anti-squat for maximum traction) or extreme rock crawling (110-150% for precise control). Those aren’t overland requirements.

Here’s something that doesn’t get talked about enough: where you mount your Panhard bar sets your rear roll center height. For overland rigs—high center of gravity, weight swinging from empty to maxed out—this actually matters.

The beauty of parallel setups? Roll center location is dead simple to predict. It’s basically where your Panhard bar crosses the axle centerline. So when you go from 8,000 lbs empty to 10,500 lbs loaded, your roll center’s relative position stays pretty stable. That means your body roll behavior stays predictable. You won’t get that sketchy “drives great empty but feels totally different loaded” phenomenon.

Triangulated 4-links? Roll center calculation gets way more complicated—upper link angles, link lengths, all kinds of variables feeding into it. If you’re a suspension engineer with a calculator and time to burn, no problem. But for most folks building overland rigs, that straightforward predictability of parallel is a genuine practical win.

When we’re setting up a customer’s truck, we typically shoot for 100% anti-squat as our baseline. That gives neutral behavior—no squat or lift under power, no excessive dive under braking. The driver gets predictable, confidence-inspiring handling, which matters a lot when you’re putting in 8-hour days behind the wheel on rough roads.

Long-Distance Reliability: Simple Wins in Patagonia

Here’s something that doesn’t get talked about enough: long-distance reliability in remote locations.

When you’re overland traveling for real, you’re often hundreds of miles from anyone who knows what a 4-link suspension even is. Something breaks, and you’re relying on hand tools, whatever spare parts you brought, and maybe a local welder in some tiny town who’s never seen your rig before.

That’s where simple engineering shows its value.

Proven tech: Parallel 4-link with a Panhard bar has been around for 60-plus years. NASCAR ran versions of this setup way back. It’s a globally understood design. Whether you’re in rural Argentina, outback Australia, or somewhere in southern Africa, there’s a decent chance the local mechanic has at least seen something similar.

Standard parts: A Panhard bar is just a straight tube with standard rod ends—usually 1.25″ or 1.5″ shank. If it breaks in the middle of nowhere, a local fabricator can weld up a replacement using common materials. Rod ends are way easier to source as generic parts.

No complex geometry: If you need field repairs on a parallel setup, you don’t need to recalculate angles or worry about precise convergence points. Keep the links parallel, and you’re 90% there. The basic geometry is forgiving.

I remember a customer who had a rod end fail in Chilean Patagonia back in 2018. Because he was running standard 1.25″ shank rod ends, he found a compatible part at a local farm equipment shop. Three hours of work, $60 out of pocket, back on the road.

If he’d been running custom triangulated brackets with oddball-sized rod ends, he’d have been looking at air freight from the States, a week of waiting, and hundreds of dollars in shipping alone.

That peace of mind—knowing you can get back on the trail with local resources—is worth its weight in gold when you’re traveling seriously remote areas.

Making the Call That's Right for Your Build

Look, I’m not here to tell you parallel 4-link is always the answer. Engineering is all about trade-offs, and there’s no one-size-fits-all solution.

But if you’re building an overland truck, here’s how I’d approach it:

Go with parallel if:

You’re working with a full-size truck that has an inboard fuel tank (most do)
Long-distance reliability matters more than extreme rock-crawling capability
You value straightforward installation and easy long-term service
Your rig’s going to see big weight swings between empty and loaded
You want predictable, consistent behavior without constant tuning

Consider triangulated if:

You’ve got a custom chassis where fuel tank placement is totally flexible
Rock crawling is genuinely your primary mission
You have solid fab skills and the right equipment to do it properly
You need absolutely zero lateral movement for extreme clearance situations

For most overland builds—and I mean the vast majority—parallel 4-link brings the right mix of packaging flexibility, installation simplicity, cost-effectiveness, and long-distance reliability. It’s not the most extreme option on paper. It’s the most practical option in reality.

Here’s what I tell customers: In overland traveling, a suspension that’ll take you 10,000 miles without drama beats one that can climb 5 degrees steeper but leaves you stranded halfway to nowhere.

Build smart. Build reliable. And when in doubt, keep it simple.
