How to Choose the Right Radius Rods?

Choosing the right radius rods requires understanding terrain, lift, material, and rod end quality. From chromoly to aluminum, arched to straight, each decision impacts off-road handling, durability, and suspension performance.
Honda Talon UTV radius rods

Bent radius rods are one of the more predictable failures in off-road builds. Predictable because they usually follow the same sequence: someone lifts the truck, runs bigger tires, keeps the factory rods. Three months later, they’re chasing an alignment problem that won’t stay fixed. The shop re-aligns the wheels. Problem comes back. They replace the rod end bushings. Problem still comes back.

It’s rarely the bushing. It’s the rod itself, and the geometry decisions that got made without it in mind.

Radius rods don’t get the attention that control arms, coilovers, or sway bar links do. They’re often treated as fixed hardware—leave them alone unless they visibly bend. But on solid-axle platforms especially, they’re one of the primary controls for caster angle and pinion angle. Get those wrong and you’re dealing with driveline vibration and handling inconsistency that’s nearly impossible to trace without accounting for the rods.

What follows is a practical breakdown: what radius rods actually do, how to pick the right material for your use case, when adjustability actually matters, and the one component most buyers skip over.

What radius rods do (and what breaks when they're wrong)

The function is simple enough. Radius rods control wheel movement along the vehicle’s longitudinal axis—fore and aft. One end mounts to the axle housing or wheel carrier; the other mounts to the chassis. As the suspension travels, the rod defines the arc the axle follows.

On a solid-axle platform, that arc determines caster angle. On independent suspension setups, radius rods work differently—they resist longitudinal forces without carrying the same steering geometry responsibility—but precision and build quality still affect ride consistency.

Lift is where things start to fall apart. Adding a suspension lift changes the effective geometry of the radius rod relative to both the chassis and axle. The rod angles differently than it was designed to, shifting caster and pinion angle. Taller tires add to that by changing the rolling radius and how the drivetrain loads at ride height.

The threshold most suspension manufacturers reference is 2 inches or more of suspension lift. That’s what changes rod geometry enough to require correction. Tire diameter is a secondary factor—taller tires affect scrub radius and speedometer calibration, but they don’t shift caster and pinion angle the way a lift does. The practical rule: if you’re lifting more than 2 inches, plan for adjustable rods. If you’re running bigger tires on a stock-height vehicle, check whether the geometry actually changed before adding adjustability for its own sake.

Bump steer is worth understanding too. On radius arm designs—where a single rod per side handles both longitudinal and lateral positioning—there’s inherent torsion in the axle as it articulates. This causes the axle to yaw slightly through its travel range, which shows up as unpredictable steering inputs over rough terrain. It’s one of the main reasons four-link setups have replaced radius arm designs in serious off-road builds, even though radius arms are simpler and more space-efficient.

Material selection: chromoly, DOM steel, or billet aluminum

Most buyers start here. And this is genuinely where most of the meaningful differences between products live.

Chromoly steel (4130/4140)

Chromoly is the default in racing applications, and not because it sounds impressive—because its strength-to-weight ratio actually justifies the cost. The chromium and molybdenum alloying elements push tensile strength to 95,000–110,000 psi in normalized condition (higher when heat-treated), which lets manufacturers use thinner tubing walls than mild steel without giving up load capacity. Performance radius rod tubing typically runs 0.120″ to 0.188″ wall; chromoly’s strength advantage means you can work toward the lower end of that range where mild steel applications need more material to compensate.

The practical durability point: chromoly doesn’t fatigue under repeated loading as long as it stays below its yield point. For most off-road applications, properly built chromoly rods outlast everything around them. The tradeoff is moderate corrosion resistance. In wet, muddy environments, maintaining the powder coat matters.

DOM steel (Drawn-Over-Mandrel)

DOM starts as welded tubing, then gets annealed and drawn over a mandrel—a process that eliminates the weld seam and produces tighter dimensional tolerances and more consistent surface finish than standard ERW tubing. The mandrel process can be applied to mild steel (SAE 1020/1026) or chromoly depending on what the manufacturer specifies.

Because mild steel DOM carries lower tensile strength than chromoly, it needs more wall thickness to hit equivalent load ratings—typically around 0.120″ or more. The precision is the selling point here. Consistent concentricity and wall thickness mean the finished rod behaves predictably under load. For most off-road radius rods, this precision matters most at the threaded ends and bearing pockets rather than the tube itself.

Billet aluminum

RZR Turbo S Radius Rod Kit

Aluminum rods are lighter—typically 1.5 lbs per pair compared to steel equivalents, sometimes more depending on rod length and section size. That matters both for overall weight and specifically for unsprung weight. Less unsprung mass means the suspension responds faster to terrain changes. At high speeds over whoops or desert terrain, that difference shows up in handling.

The limitations are real and worth understanding before choosing aluminum. Tensile strength varies significantly by alloy: 6061-T6 runs about 45,000 psi (310 MPa), while 7075-T6 reaches closer to 83,000 psi (572 MPa). Either way, that’s well below chromoly’s range. More importantly, aluminum has a finite fatigue life—it will eventually crack under repeated cyclic stress even if individual loads stay within spec. Steel doesn’t work that way; it can handle indefinite cycling below its endurance limit. Aluminum’s higher thermal expansion also means that in engine-adjacent mounting locations, preload changes as the rod heats and cools.

For UTV applications, recreational rock crawling, and desert pre-running, aluminum makes sense. For builds where the rod is likely to take direct rock impacts, chromoly is the safer call.

Quick material reference

  • Rock crawling (high impact): Chromoly
  • Desert pre-running/high speed: Billet aluminum
  • Rally or track: Chromoly
  • UTV recreational: Billet aluminum (6061-T6 or 7075-T6)

Profile shape: straight, arched, or high-clearance

This decision is almost entirely driven by terrain.

Straight rods

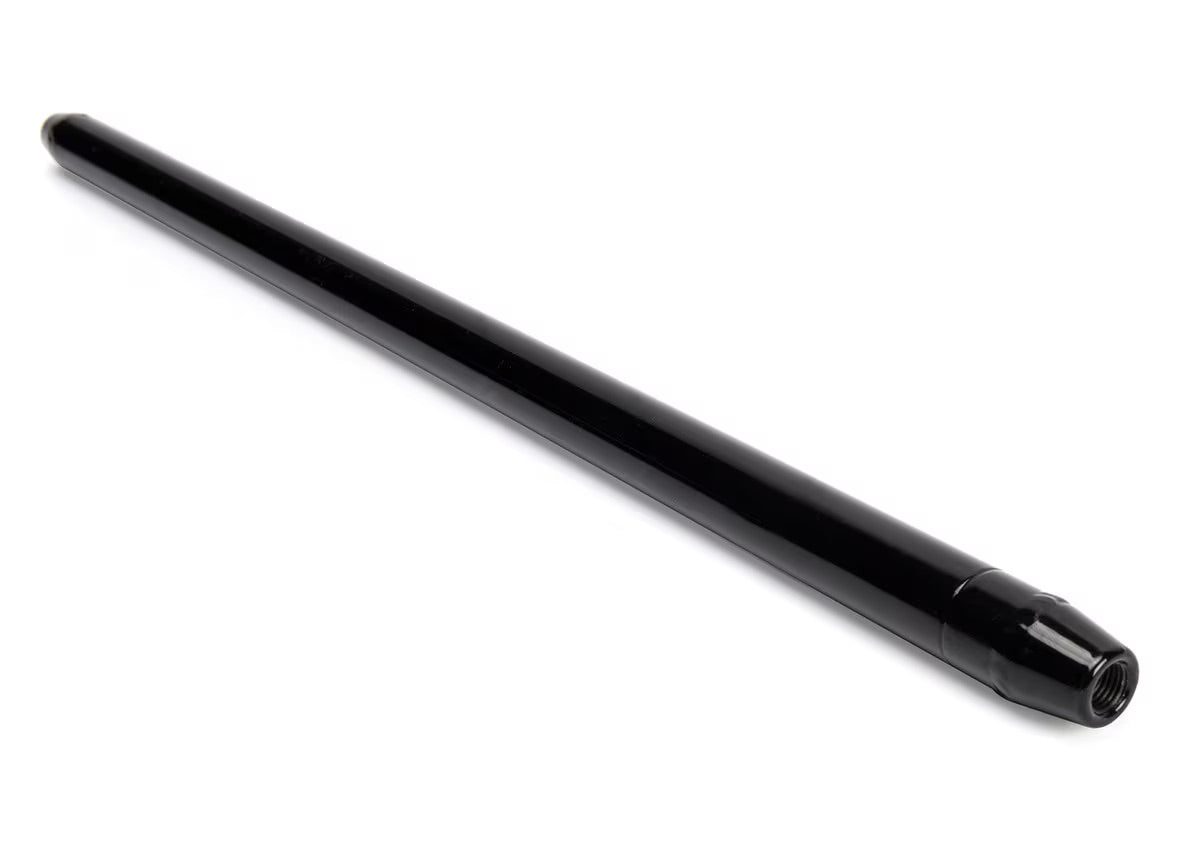

custom tubed radius rods

Straight radius rods cost less to produce, package cleanly in tight chassis configurations, and work fine for any application where ground clearance isn’t a concern. On a high-speed desert course, the rod profile matters far less than material and geometry setup. For street use or mild off-road, straight rods are the obvious choice.

Arched and high-clearance profiles

Maverick X3 Radius Rod Kit 72inches

When rocks are involved, a straight rod is a liability. A direct hit on the rod body will bend it—often without obvious visual deformation. The rod looks intact, but it’s no longer tracking straight. The resulting geometry error causes tire wear and handling inconsistency that’s hard to diagnose without actually pulling the rod and inspecting it.

High-clearance designs use an arched or bent profile to move the functional portion of the rod away from the likely contact zone. Most quality aftermarket designs add 2 to 2.5 inches of additional clearance over stock. The load path becomes slightly less linear compared to a straight rod, but well-engineered high-clearance rods handle this without structural compromise.

For any build running meaningful lift on rocky terrain, the arched profile is a requirement, not an upgrade.

Fixed vs. adjustable: when does it actually matter

Fixed rods are simpler, cheaper, and right for a lot of builds. The deciding factor is modification level, not product marketing.

If your lift is under 2 inches and you haven’t significantly altered the suspension geometry, quality fixed rods are the correct choice. Adjustable rods add more joints, more potential wear points, and more cost—none of which is worth it if the geometry isn’t changing.

Once you cross the 2-inch lift threshold, adjustability earns its place. It lets you set caster and pinion angle independently rather than accepting whatever the geometry defaults to after the lift. On solid-axle trucks, correcting pinion angle is a longevity issue for the u-joints. A pinion angle that’s too far off under load accelerates wear, and you’ll notice it as vibration at specific vehicle speeds—often mistaken for a driveshaft balance problem.

Modern adjustable radius rods are considerably simpler than older heim joint designs. Most use a threaded sleeve or barrel adjuster that doesn’t require specialized tooling. The maintenance consideration is rod end count—some designs use up to eight rod ends per set. Rod ends wear out and need replacement. When comparing adjustable options, the initial price is only part of the story; factor in how long the rod ends typically last and what replacement costs.

The thing most buyers don't think about: rod end quality

5/8" Heim joint for Can-Am Maverick X3 radius rod, designed for improved suspension performance.

The rod end is the spherical bearing at each mounting point. It determines more about how long the system lasts than the tube material does. A quality rod body with cheap rod ends will fail prematurely. Across suspension builds, the rod ends are almost always the first thing to go, not the tube.

The distinctions that matter:

PTFE-lined bearings are standard in motorsport applications. The PTFE liner cuts friction and removes the need for regular greasing. Worth noting: over-greasing PTFE bearings damages the liner. They’re the right choice for any application where maintenance access is limited or inconvenient. Most quality aftermarket radius rod sets spec a 3-piece chromoly Heim joint with a Teflon-lined race.

Steel-on-steel bearings need regular lubrication and wear faster in abrasive environments. They’re fine in controlled settings but require more discipline to maintain properly in muddy, gritty off-road use.

Load orientation is a frequently misunderstood installation issue. Rod ends handle radial loads well; axial loads—forces along the bolt axis—are rated at roughly 5 to 10% of the radial capacity. Misorienting the bearing so primary loads run axially causes premature failure regardless of bearing quality or price.

Bore tolerance at the housing is the manufacturing detail that separates good parts from cheap ones. Radius rods typically use 5/8″, 3/4″, or 7/8″ rod ends, and the housing bore has to hold tight tolerances (typically +0.000/-0.0005″ for a press-fit outer race). An oversized bore lets the outer race spin in the housing, which destroys the bearing quickly. This is the specific place where CNC machining precision has a direct and measurable impact on field performance. Parts without dimensional control on the bearing pockets will fail early, and that failure mode is hard to diagnose without disassembly.

According to QA1’s rod end and heim joint technical documentation, correct installation—including proper preload and avoiding side loading—matters as much as the bearing specification when it comes to actual service life.

A practical selection framework

Most radius rod decisions come down to three questions: What’s the terrain? What’s the modification level? What’s the priority—weight, cost, or longevity?

Rock crawling builds: chromoly material, arched or high-clearance profile, adjustable if you’re lifting more than 2 inches. The ground clearance from the profile design matters more here than in any other application. Invest in PTFE-lined rod ends and don’t compromise on bearing seat tolerances.

Desert pre-running and high-speed off-road: aluminum pays off through unsprung weight reduction, straight or lightly arched profile, adjustable if the suspension has been modified significantly. High-speed terrain puts repeated dynamic loads through the joints, so rod end quality matters as much as tube material.

Rally and track: chromoly, straight profile, adjustable to allow geometry tuning as setup evolves. Weight savings matter less than consistency and durability across long events.

Street and mild off-road: fixed rods with quality DOM construction work well. Put the budget into rod end quality rather than premium tube materials.

One point on manufacturing that’s worth raising directly: radius rods look straightforward, but dimensional accuracy at the rod end pockets and threading is exactly where cheap parts cut corners. A poorly machined rod end seat makes the bearing run off-axis, which accelerates wear in a way that’s genuinely difficult to trace without pulling the rod. Speedway Engineering’s suspension link technical resources identify tolerance control on threaded inserts and end fittings as one of the primary differentiators between production-grade and competition-grade components. For shops sourcing in volume, suppliers who can provide material certifications and dimensional documentation are worth prioritizing—not just for quality assurance, but because traceability matters when something does fail.

At SYZ Machine, suspension links and radius rods are CNC machined to tight tolerances with material certifications available on request, which is the kind of documentation that matters when you’re building a product line and need consistent quality across every unit.
