How Radius Rods Are Made?

A radius rod snaps at 60 mph. Not because the driver pushed too hard, because the wall thickness was specced for show, not for load. Failures like that usually start much earlier, in decisions about material grade, tube production method, bearing pocket tolerance, and welding technique. The manufacturing process is not a background detail. It defines the part.

Here’s how radius rods are made, from raw material to finished component, and what those steps mean for performance and durability in real applications.

Where It Starts: Material Selection

The choice of material sets the ceiling for everything that follows. Three primary options dominate the market: chromoly steel, DOM steel, and aluminum alloys. Each has a clear purpose. Using the wrong one for the application remains one of the most common, and most expensive, mistakes in suspension builds.

Chromoly (SAE 4130/4140) is the standard choice for high-performance and competition applications. The chromium-molybdenum alloying elements give it tensile strength in the 95,000–110,000 psi range in normalized condition, significantly above mild steel, along with strong fatigue resistance under repeated directional loading. That fatigue resistance matters more than peak tensile strength in suspension components, where the rod flexes and rebounds thousands of times per session.

DOM steel (Drawn-Over-Mandrel) is often misunderstood. DOM isn’t a material. It’s a process. The base material can be mild steel, chromoly, or SAE 1020/1026. What DOM describes is how the tube is formed: a welded blank is annealed and drawn over a tapered mandrel, which closes the weld seam, works the metal cold, and produces a tube with tighter dimensional tolerances than standard ERW. For radius rod production, that means more consistent wall thickness and better concentricity, both of which matter when machining bearing pockets.

Aluminum alloys, primarily 6061-T6 and 7075-T6, solve one specific problem: unsprung weight. A pair of aluminum radius rods can save roughly 1.5 lbs compared to chromoly equivalents of the same geometry. In high-speed desert and pre-running applications, where suspension responsiveness matters more than ultimate load capacity, that weight reduction has measurable impact. The trade-off is strength. 6061-T6 tops out around 45,000 psi tensile (yield ~40,000 psi), and even 7075-T6 at approximately 83,000 psi tensile (yield ~73,000 psi) falls short of chromoly for peak load applications. Yield strength, the point where the material permanently deforms rather than springs back, is the more useful figure for suspension components. Aluminum rods are also billet-machined rather than tube-based, which changes the manufacturing process entirely.

How the Tube Is Produced

For steel radius rods, the tube goes through two distinct production paths before it reaches a machine shop.

ERW (Electric Resistance Welding) starts with flat steel strip, which is rolled into a tube profile and welded along the seam using high-frequency electrical current. No filler metal is added. The heat and pressure from the current fuse the edges together. ERW is cost-effective and produces consistent results for standard applications, but the weld seam remains a structural variable. In lower-stress applications, that may not matter. In competition or high-load builds, it does.

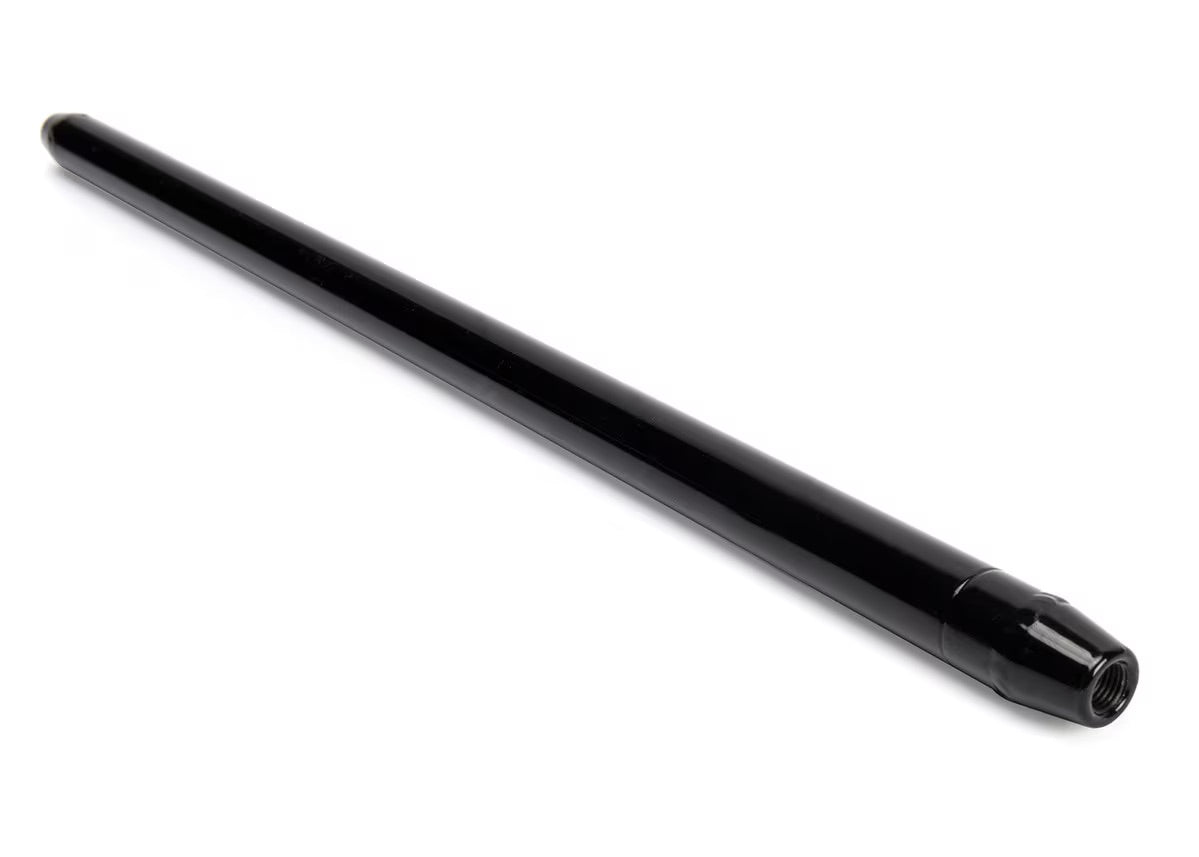

DOM production takes ERW tube as its starting point. The welded tube is annealed to soften it, then drawn over a mandrel that forces the tube to conform to tighter dimensional tolerances. This cold-working process closes any voids in the weld seam, increases hardness slightly through work hardening, and produces a tube with more uniform wall thickness around the circumference. For radius rod production specifically, DOM tube gives machinists a better starting point, especially for the bearing pocket machining that follows.

The practical difference appears in quality control. DOM tube can be held to tighter diameter tolerances than standard ERW, which matters when downstream machining operations depend on consistent stock dimensions.

CNC Machining: Where Tolerances Become Critical

The tube is only as good as what happens next. The machining operations on a radius rod, primarily the bearing pocket bores and the threaded sections, determine whether the rod end sits correctly, preloads correctly, and stays put under load.

The bearing pocket is where precision matters most. For press-fit outer races, bore tolerance is typically held at +0.000/-0.0005 inches. That’s half a thousandth of an inch on the minus side, with no tolerance on the plus side. A bore that’s even slightly oversized allows the outer race to spin in the pocket under load. That failure mode develops slowly, then ends badly. The bearing runs off-axis, wears asymmetrically, and eventually fails in a way that looks random but was built in at the machining stage.

Threading operations follow the same logic. The pitch and diameter of the threads receiving the rod end determine how that end behaves under torsional and compressive loads. Inconsistent threading creates stress concentrations at the thread roots, exactly where fatigue cracks initiate in adjustable-length rods.

For aluminum billet rods, the machining process is more extensive. The entire rod body is turned from solid stock, which requires more setup time and cutting passes but eliminates the weld variable entirely. Aluminum machines faster than steel but requires careful coolant management to avoid built-up edge on cutting tools, which shows up as surface finish degradation that can affect dimensional accuracy.

Welding and Assembly

For tube-based rods, welding is the step that ties the machined ends to the tube body. The choice between TIG and MIG has real consequences at this scale.

TIG welding (Gas Tungsten Arc Welding) uses a non-consumable tungsten electrode with a separately fed filler wire, giving the welder precise control over heat input. For safety-critical components like suspension links, TIG is the preferred method in motorsport and high-performance production. The slower process allows better management of heat-affected zones, the area around the weld where the base metal’s properties are altered by thermal cycling. In chromoly specifically, an overly large heat-affected zone can reduce the material’s toughness at exactly the wrong location.

MIG welding (Gas Metal Arc Welding) feeds a consumable wire electrode continuously, which makes it faster and better suited to higher-volume production. On thicker-wall tube, MIG achieves good penetration, but the higher heat input and less precise control compared to TIG make it less suitable for thin-wall chromoly applications.

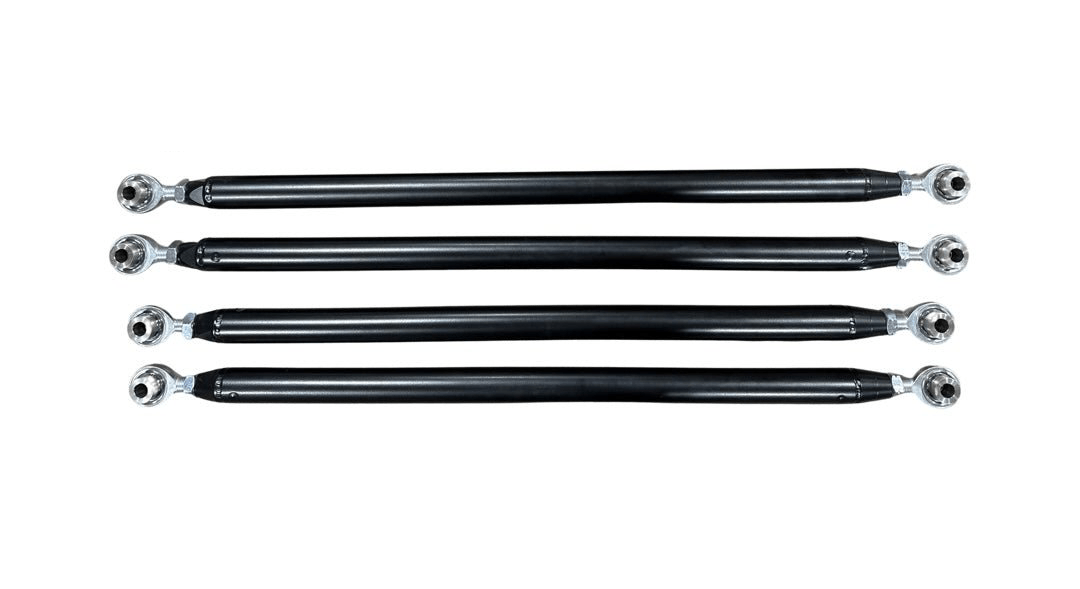

Bearing end installation follows welding. Spherical rod ends, the heim joints that allow the suspension to articulate, are pressed into the machined pockets to the specified interference fit. Standard bearing bores run 5/8″, 3/4″, or 7/8″ diameter depending on the application’s load requirements. A “top hat” style spacer bushing, welded into the mount rather than the rod, increases the bearing surface area and substantially strengthens the mount point. That kind of detail separates well-engineered assemblies from commodity parts.

For adjustable-length rods, the left/right-hand thread system is where manufacturing precision adds up. The rod body accepts right-hand threads on one end and left-hand on the other. Rotating the tube body lengthens or shortens the assembly. If the threads are cut inconsistently, the adjustment increments become unreliable, which defeats the purpose in a geometry-critical application like caster correction.

Quality Control and Testing

Finished radius rods go through several verification steps before reaching the market. The specifics vary by manufacturer, but the relevant standards provide a useful frame of reference.

Tensile testing per ISO 6892-1 or ASTM E8 verifies that the base material meets its specified strength. This matters because material certification does not automatically mean the specific batch delivered to a shop hit the numbers on the datasheet. Mechanical testing closes that gap.

Hardness testing using Brinell or Rockwell methods confirms heat treatment results for any components that undergo post-machining thermal processing. For chromoly that’s been TIG-welded, spot hardness testing around the heat-affected zone can detect unintended softening. High-load 4130 assemblies often also specify post-weld heat treatment (PWHT), typically stress-relieving at 1,100–1,200°F or full normalizing, to restore toughness in the HAZ and reduce residual stress that would otherwise become a fatigue initiation site.

Non-Destructive Testing (NDT) methods, dye penetrant inspection, magnetic particle testing, or ultrasonic methods depending on the material, detect surface and subsurface defects without destroying the part. In production environments, this is typically applied to welds and the transition zones between machined sections and tube body.

Dimensional inspection of bore tolerances and thread engagement is often the last step before parts ship. Given that the +0.000/-0.0005″ bore specification is the kind of tolerance that requires consistent process control to maintain, spot-checking finished parts catches drift before it reaches the customer.

Per ISO 6892-1 and ASTM E8 protocols, commonly performed on equipment like ZwickRoell testing systems, tensile and hardness testing procedures are well-established across the industry. The real question is whether a given manufacturer applies them consistently, or treats them as optional overhead.

What This Means When You’re Buying

The manufacturing process is not visible in a product photo. But it leaves clues if you know where to look.

Weight is one signal, though not in the direction most buyers assume. An aluminum rod that weighs less than the listed spec for its diameter either has thinner wall than advertised, or was machined from lower-density material. A chromoly rod that’s lighter than a DOM equivalent of the same geometry is probably using thinner wall, which may be appropriate for the application, or may not be.

Bearing pocket fit is another clue. A rod end that can be hand-pressed into its pocket without the correct interference fit, or one that has visible slop at installation, reflects a bore that’s out of tolerance. This is not cosmetic.

Weld bead consistency matters for tube-based rods. TIG welds have a characteristic stacked-dime appearance. MIG welds look smoother and more uniform but carry higher heat input. Neither is automatically better, but a weld that’s inconsistent in profile or shows porosity (small surface pits) is worth questioning regardless of method.

The adjustability on adjustable rods should feel deliberate, with consistent resistance across the adjustment range and no binding at the thread engagement points. Binding suggests thread form inconsistency or misalignment in the assembly.

SYZ Machine produces radius rods in both chromoly and aluminum variants across multiple bore sizes, with CNC-machined bearing pockets held to the tolerances that matter for press-fit bearing installation. The manufacturing process is the spec that doesn’t appear on the datasheet, which is why it’s worth understanding before you order.
