Why Do You Need Wheel Spacers?

Wheel spacers aren’t always necessary. But for brake upgrades, lowered suspension, or flush fitment goals, they can be a smart, cost-effective solution when chosen and installed correctly.

Automotive forums regularly host opposing viewpoints: some regard wheel spacers as “false requirements”—pure cosmetic self-indulgence; others recognize them as essential tools addressing genuine problems. Truth lies between extremes. Wheel spacers admittedly represent unnecessary additions for many vehicles, yet in specific scenarios they solve problems with minimal cost that alternative approaches struggle to address efficiently—from post-brake-upgrade clearance conflicts to post-suspension-lowering tire rubbing and handling stability fine-tuning. The critical question becomes not “should I install them?” but rather “does my vehicle genuinely need them?”

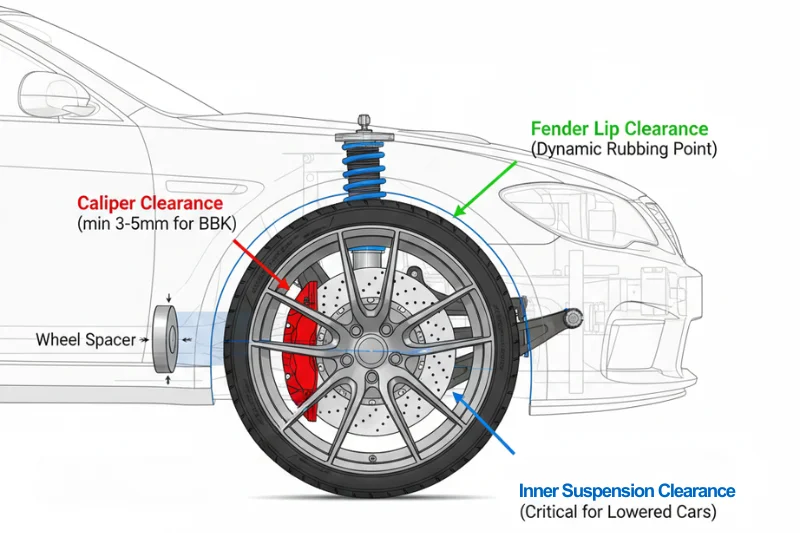

Functional Requirements

Brake Upgrade Clearance Challenges

This likely represents the most common functional necessity. Original brake systems design for daily driving employs conservative caliper dimensions. After upgrading to BBK (Big Brake Kit), larger calipers and disc diameters may interfere with original wheel inner surfaces—with gaps reduced to 3-5mm, wheels simply won’t fit.

This problem proves extremely common in performance vehicle modifications. Examples include upgrading Honda Civic Type R with Brembo six-piston calipers or BMW 3-Series with M Performance brake kits—both frequently encounter wheel-caliper interference. Traditional solutions present two options:

Replace wheels with different inner-spoke geometry ($1,500-3,000)
Install 5-10mm wheel spacers ($150-250)

Data indicates 75% of BBK installation users ultimately selected spacer solutions due to dramatic cost differences. Assuming appropriate spacer thickness selection (typically 5-12mm suffices), the solution addresses clearance issues without producing noticeable handling effects.

Suspension Lowering-Induced Tire Rubbing

Vehicle lowering represents classic modification, yet it alters tire-to-fender positional relationships. Original designs incorporate adequate dynamic clearance (accounting for suspension compression and steering angles), but after lowering 50-80mm, this safety margin disappears.

Typical symptoms: straight-line travel remains problem-free, but full steering lock or suspension compression (speed bump transit, emergency braking) creates tire-to-fender interior rubbing with characteristic shrill noise. Prolonged rubbing damages tire sidewalls and plastic trim.

Suspension Limit-Compression Dynamic Interference

Widening track width solves tire-to-interior-suspension clearance issues but increases tire-to-fender-lip collision probability. During suspension limit compression states, tires may not only contact interior trim but directly “cut” fender exterior edges. Post-installation testing requires simulating full-compression scenarios—examples include driving over curbs or emergency braking while observing minimum tire-fender gaps.

Solutions include:

Fender rolling: physically expanding clearance, but irreversible
Wheel replacement with larger offset: positions wheels inward; cost-intensive
10-15mm spacer installation: pushes wheels outward, avoiding interference

From modification shop feedback, spacer plus minor fender rolling represents the most common approach—solving interference while retaining original wheels.

Wheel Adapter Alternative Functions

Certain scenarios involve installing differently-patterned wheels. For example, BMW originally uses 5×120, yet a desirable wheel set features 5×114.3. Specialized wheel adapters (technically spacer variants) enable bolt-pattern conversion.

While not mainstream demand, secondhand wheel markets and cross-brand transplant scenarios do present this requirement. Note that adapters typically employ larger thickness (20-30mm), producing more pronounced suspension geometry effects; regular street long-term use isn’t recommended.

Performance Optimization

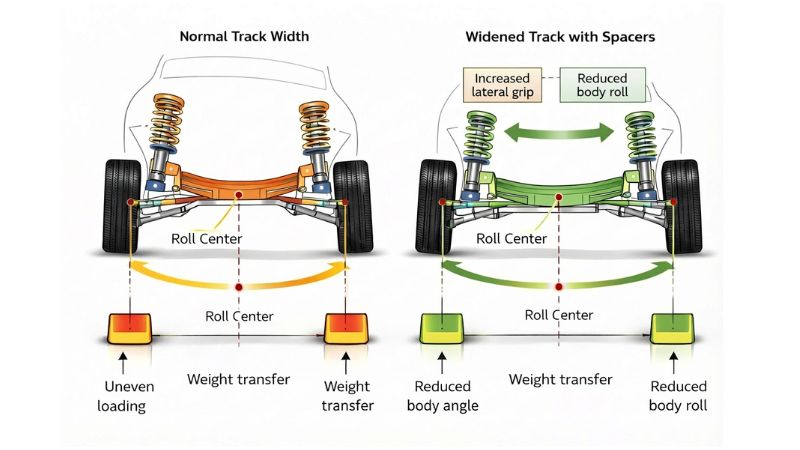

Track Width and Cornering Stability

Widening track width represents a classic race-car engineering tuning method. Physics proves straightforward: vehicle turning produces centrifugal force causing weight transfer toward the outer wheel. Wider track creates longer anti-roll moment arm, enhancing roll-resistance capability.

Engineering analysis demonstrates that every 30mm track increase (15mm spacers each side) theoretically improves limit cornering speed approximately 3-5%. Actual effectiveness depends on suspension stiffness, tire performance, and other variables, yet the trend proves definitive.

From track day enthusiast feedback, post-15-20mm spacer installation, the most noticeable improvement involves high-speed lane changes and continuous cornering stability—vehicles demonstrate increased resistance to lateral disturbances (such as crosswinds, uneven pavement), with reduced correction magnitude requirements.

This improvement doesn’t prove cost-free. The price involves wheel bearings and suspension ball joints experiencing increased lever torque, theoretically reducing lifespan 10-15%.

Bearing Life Realistic Assessment

From a mechanical standpoint, spacers increase the effective cantilever length acting on the hub assembly, which raises radial and moment loads on the bearing. This relationship follows standard wheel bearing load calculation principles used in motorsport and automotive engineering.

In practical terms, the effect of a spacer on bearing load is comparable to running wheels with a lower offset (ET). Provided spacer thickness remains within 20 mm, bearing stress variations typically stay within original design safety margins—unless the bearing is already near the end of its fatigue life. For street driving, the additional wear generally remains acceptable; however, frequent track use may justify shortened service intervals.

Cornering Grip Subtle Changes

Theoretically, track widening reduces vehicle roll center, increasing body roll angle. This sounds negative? Reality proves more complex.

Increased roll means exterior-side suspension compression increases, raising exterior tire load. If loads remain within rated capacity, this enhances grip (greater normal force equals greater friction). Yet excessive load transfer, reducing interior tire loads, can actually decrease total grip.

Where’s the balance point? According to suspension engineer field test data, for vehicles with factory soft suspension tuning, 10-15mm spacers typically deliver positive effects; already-tuned sport suspensions show diminishing returns or potential negative effects.

Simple assessment: if vehicles experience interior-wheel slip or lift during aggressive driving, track widening may help; if four-wheel grip already proves balanced, spacer performance benefits prove limited.

Scrub Radius and Steering Feel

Scrub radius represents the horizontal distance between kingpin centerline and tire contact point. Spacer installation increases scrub radius—if original design measures 15mm, adding 20mm spacers increases it to 35mm.

This produces noticeable steering-feel transformation:

Steering effort increases (requiring greater force rotating the steering wheel)
Road feel becomes more direct (surface irregularities provide stronger feedback)
Torque steer sensitivity increases (especially pronounced in high-horsepower front-drive vehicles)

Steering Positive Effects

Increased scrub radius, while making steering heavier, provides improved cornering self-recovery force and steering feedback during high-speed cornering, allowing drivers to perceive front-wheel limits more clearly. This precisely matches what performance-oriented drivers seek as “road feel.” For driving enthusiasts pursuing dynamic involvement, this change typically proves positive.

Overall, steering characteristic modifications represent benefits or drawbacks depending on personal preference and driving style. Sport-driving enthusiasts likely value increased road feel and improved self-recovery; daily-commute users might find it fatiguing. Understanding this characteristic change proves important rather than discovering post-installation that “the steering wheel became heavy.”

Visual Enhancement

Flush Fitment Aesthetic Logic

“Flush fitment” describes achieving wheel external edge alignment with fender external edge. Within modification aesthetics, this represents the most harmonious proportion—neither wheels deeply recessed within fenders (appearing inadequate) nor exaggeratedly protruding (appearing uncoordinated).

Original manufacturers employ conservative offsets for cost and universal compatibility, resulting in pronounced wheel recession. Volkswagen Golf examples with original ET45 wheels, without lowering, accommodate a fist between fender and wheel face.

Post-15-20mm spacer installation, wheels shift outward, reducing visual distance between fender and wheel face. Combined with moderate body lowering (30-50mm), achieving flush effect becomes possible. This represents basic visual modification, costing far less than purchasing custom-offset replacement wheels.

Aggressive Stance Measured Pursuit

Beyond flush, certain enthusiasts pursue more aggressive stance: wheels slightly protruding past fenders, creating “poke” effect. Show cars and photography commonly feature this, delivering strong visual impact.

This requires careful consideration. Tire protrusion exceeding fender edges by 10mm+ increases splash, mud, and stone strike risks. Certain regions may enforce regulations (United Kingdom requiring tires not protrude beyond vehicle perimeter). Most importantly, excessive outward extension accelerates suspension and bearing wear.

From balanced perspective, flush or slight inward-recession (wheel face flush or 5mm inboard from fenders) represents optimal choices—delivering visual effect without sacrificing practicality.

Wheel Spacer Necessity Self-Assessment

✅ You may require spacers if:

Brake Clearance: Post-brake upgrade, the gap between wheel and caliper is $< 3$mm.
Rubbing Issues: Lowered ride height leads to tires rubbing against fenders during steering or suspension compression.
Flush Fitment: Seeking a “flush” look without the capital expenditure of new wheels.
Track Performance: Aiming to fine-tune handling characteristics and track width for competitive use.

❌ You may NOT require spacers if:

Stock Configuration: The vehicle remains entirely stock with no future modification plans.
Visual Balance: The objective is purely aesthetic, yet the factory fitment is already visually harmonious.
Direct Replacement: Budget allows for the purchase of aftermarket wheels with the ideal calculated offset.

Cost-Benefit Analysis

Cost Comparison Versus Alternatives

Using “brake caliper clearance resolution” as example, comparing different approaches:

Solution	Cost	Installation Difficulty	Reversibility	Additional Effects
10mm spacer + bolts	$150-250 + $40-60*	Simple (30 min)	Fully reversible	Minimal handling effect
Wheel replacement	$1,500-3,000	Moderate (tire dismount)	Reversible but expensive	No negative effects
Custom caliper bracket	$400-800	Complex (machining)	Reversible	Potential brake geometry impact

**Note: 10mm+ slip-on spacers require matching extended fasteners; this cost should be calculated. Bolt-on designs require confirming original fasteners don’t protrude beyond spacer surface contacting wheel back.

For most users, spacer cost-benefit proves obvious. Unless original wheels require replacement (aging, damage, size upgrade), replacing wheels for clearance issues represents over-investment.

Long-Term Usage Costs

Spacers represent one-time investments; quality-reliable products provide 10+ year service. However, they incur indirect costs:

Bearing wear acceleration: Estimated 10-15% lifespan reduction (roughly 10,000-20,000 kilometer earlier replacement)
Alignment frequency increase: Recommend four-wheel alignment inspection every 20,000 km or one year (original manufacturers might specify 30,000 km)
Tire wear pattern changes: Increased scrub radius may produce slightly faster interior wear; regular rotation becomes necessary

Over ten-year service cycles, comprehensive additional costs approximate $300-500 (including one extra bearing replacement and two extra alignments). Annual amortization yields $30-50—substantially less than wheel replacement costs.

Applicable Scenarios and Contraindications

Most Suitable Spacer-Use Scenarios

Performance modification users: Brake, suspension, tire upgrades requiring clearance and fitment solutions
Track day enthusiasts: Desiring track-width fine-tuning to optimize performance
Visual modification enthusiasts: Pursuing flush stance within budget constraints
Temporary solutions: Interim use with planned long-term wheel replacement addressing current interference

Situations Where Spacers Aren't Recommended

Heavy commercial vehicle long-term use: Additional bearing/suspension stress becomes magnified under heavy loading
Vehicles with existing bearing issues: Spacers accelerate problem deterioration
Extreme thickness (>30mm): Without professional evaluation, risks exceed benefits
Poor-quality spacers: Cast or unbranded products—no savings justify the safety compromise

Do You Truly Need Them?

Clarify Core Needs

Before considering spacers, ask yourself three questions:

Do I encounter physical conflict issues? (brake caliper, tire rubbing)
Do I have clear performance optimization goals? (track lap time improvement, high-speed stability enhancement)
Do I understand alternative solutions’ costs and benefits?

If the first question receives affirmative answer, spacers become almost mandatory. If only questions two or three receive “yes,” more careful evaluation becomes necessary.

Assess Your Usage Scenario

Primarily daily commuting (80%+ urban roads): 5-15mm thickness, prioritizing quality and reliability
Performance driving blend (occasional track days or mountain roads): 10-20mm, selecting premium brands
Pure competition use: Following professional tuner recommendations, potentially requiring 25mm+
Show car purpose: Visual priority maintained while ensuring basic safety

Select Reliable Suppliers

Regardless of timeline pressure, never compromise spacer quality. Substandard spacers might save $50-100, but their risks prove impossible to quantify monetarily.

Critical checkpoints:

Material explicitly specified (6061-T6 or 7075-T6 forged aluminum)
Hub-centric design, CB tolerance ±0.05mm
Vehicle-specific fitment rather than “universal” designs
Minimum 3-year warranty; premium brands provide 10-year
Material test reports and installation guidance availability

Professional wheel spacer suppliers actively inquire about vehicle type, usage, and modification history, then recommend appropriate specifications—not simply answering “how many millimeters?” This professional consultation service itself represents quality assurance.

Tool Value Depends on Proper Use

Wheel spacers represent neither universal solution nor frivolous product. Value depends on three elements: clear requirements, appropriate specifications, reliable quality.

When brake calipers prevent installation by mere 5mm and spacers solve a $2,000 problem with $200 investment—that’s true necessity. When track enthusiasts hope 0.5-second lap improvements come from 15mm track-width adjustments, spacers likely represent most economical tuning. When visual enthusiasts pursue flush stance within budget constraints, spacers provide reversible, cost-effective pathways.

However, blindly installing based on hearsay, or purchasing substandard products to save $50, transforms tools into hazards.

Final recommendation: confirm you genuinely need them, select reliable products, then maintain proper installation and care standards. This transforms wheel spacers into safe, dependable modification assistants rather than potential risk sources.
