How to Choose Wheel Spacer Thickness?

For a flush stance or off-road clearance, even small errors can lead to rubbing or premature bearing wear. This guide shows how to use the Straight Edge and Washer Test methods to protect suspension and steering travel. Learn how to find the exact size your build needs before ordering.

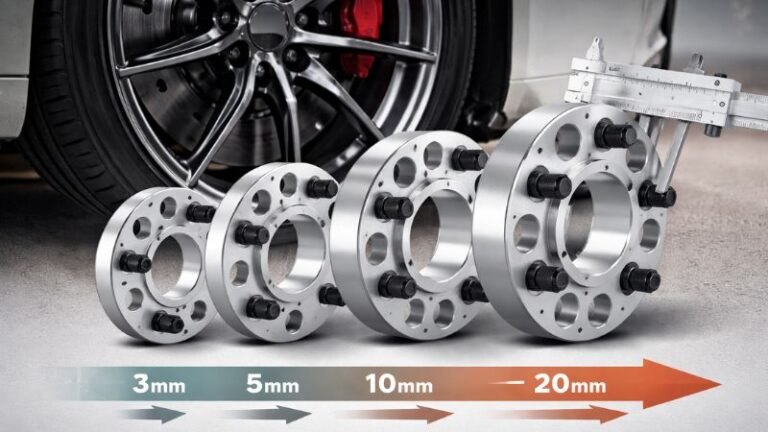

How to Choose Wheel Spacer Thickness

In discussions about wheel spacers, there’s only one question with the highest frequency:

“What thickness should I actually buy?”

Many people either pick a thickness by feel, or see what thickness others installed and buy the same. But the problem is, different vehicle models, different modification levels, different purposes—the appropriate thickness varies greatly. What works for someone at 10mm might rub fenders for you; your perfect 5mm might not achieve the desired effect for someone else.

Why Getting Thickness Wrong Is a Big Problem

Wheel spacer thickness not only determines how far the wheel moves outward, it also directly affects several things:

  • Fender-to-Tire Clearance: Whether the tire rubs the fender depends on this
  • Full lock steering clearance: When steering is turned to maximum, tires occupy the most space—this is when rubbing most easily occurs
  • Suspension Compression Stroke: When suspension compresses to minimum, tires also move upward, changing distance to fender
  • Moment on wheel bearing: Greater thickness means more pronounced lever effect and faster bearing wear

Too thin won’t achieve the effect; too thick causes rubbing at best, affects chassis safety at worst. So measuring data is the first and most important step before buying.

How to Measure—Two Common Methods

Method One: Straight Edge Method

This is the most common method, requiring no special tools. Place a sufficiently long straight edge vertically at the inner fender wall’s lowest point (with suspension under normal static load), then measure the distance between the tire sidewall and the ruler—this distance is how much usable space you currently have.

A few details to note:

  • Must measure with suspension under normal load, not with car lifted or suspension extended
  • Must measure the tire’s most protruding part—usually the sidewall rather than tread, as many tires’ sidewalls are wider than tread
  • Must measure the closest clearance, can’t just look from one angle—fender shape isn’t perfectly circular, different positions have different spacing
  • Watch out for fender liner: Some cars’ fender outer edge looks like there’s space, but liner has protruding plastic pieces or screws—that’s the actual first contact point
  • Pay special attention to front wheels: When measuring front wheels, have someone slowly turn steering wheel from full left to full right, observing the narrowest clearance at each angle—this is the actual usable space

Method Two: Washer Test Method

This method is more intuitive and more accurate than the straight edge method. Specific approach: remove the wheel, place several standard thickness washers on each bolt, then reinstall the wheel—by adding or removing washers to simulate the effect of different thickness spacers.

When you find the number of washers that’s “just right with a bit of margin,” measure the total thickness of those washers—that number is the spacer thickness you need. This method lets you see the actual effect directly on your own car, much more convincing than pure ruler measurement.

⚠️ Severe Warning

Washer test method is for static measurement only, driving is strictly prohibited. Washers aren’t planar structures, uneven force distribution can easily break bolts, causing serious safety accidents. After measurement is complete, washers must be removed and normal installation restored.

Both methods recommend subtracting 3-5mm from the final number as safety margin. Especially for front wheels, because steering travel and suspension dynamics will make actual space occupation larger than static measurement.

Thickness Ranges for Different Scenarios

Based on numerous modification cases and actual experience from professional installers, thickness selection can reference these ranges:

3-5mm: Fine-Tune Stance

Suitable for situations where the gap between tire and fender isn’t large to begin with, only needs slight adjustment. This thickness has virtually no negative impact on chassis, completely fine for daily use. Many European cars, because OEM stance is already quite close, achieve desired effect with just 3-5mm.

5-10mm: Daily Aesthetic Modification

This is the most commonly chosen thickness range for pure aesthetic stance modification. The tire pushes out noticeably, visual effect is good, and impact on bearings and steering is also within acceptable range.

Note: When choosing Slip-On spacers over 5mm, you usually must use extended studs, cannot force use of OEM studs.

10-20mm: Off-Road Practical Modification

The most used range when off-road modifications install larger tires. Space created for fender is obvious, while lever effect hasn’t reached the point of excessively affecting bearing life. This range is the best cost-performance choice for off-road scenarios.

Structural recommendation: Beyond 12-15mm, recommend switching to Bolt-On (self-studded type) spacers rather than simple plate type, to ensure thread engagement depth and overall structural strength.

20mm+: Racing and Aggressive Modification

Spacers over 20mm are mainly used in racing or aggressive modification scenarios. This thickness’s impact on bearing life starts becoming quite significant; if used for daily driving, need to pay increased attention to bearing maintenance intervals.

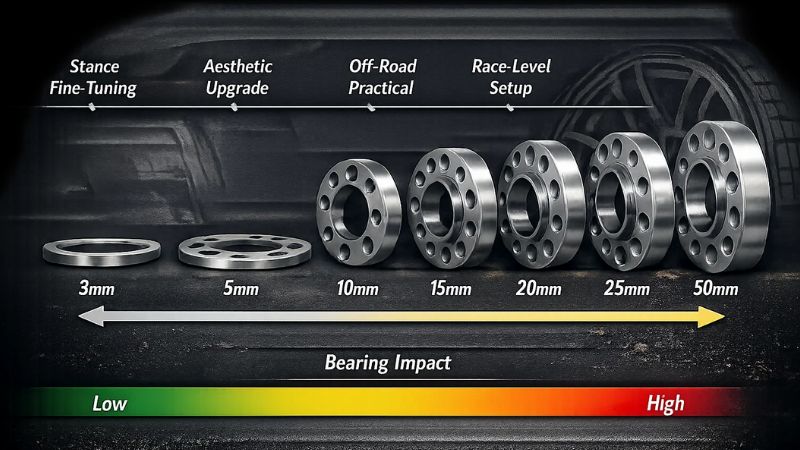

Wheel Spacer Thickness Guide
Wheel Spacer Thickness Guide

Safety Checks Before Installation Can't Be Skipped

After determining thickness, there are several mandatory safety checks. According to professional modification resources and manufacturer installation recommendations, these items must be verified before installation:

Full Lock Steering Check: Turn steering wheel to extreme left and right limit positions, check the spacing between tire and fender at every angle. Especially near limit positions—that narrowest point is the decisive data. If full lock clearance is less than 3mm, this thickness is too thick.

Suspension Compression Check: Let vehicle body bounce slowly up and down (can use jack to slowly lift one side then lower), observe tire and fender position relationship when suspension compresses to minimum. This check is especially important for off-road vehicles—Suspension Compression Stroke is large when crossing ditches and bumps, tire and fender suddenly become very close.

Thread Engagement Confirmation: Whether choosing Slip-On or Bolt-On, after installation must confirm bolt thread engagement turns. According to industry installation standard requirements, must ensure at least 6-7 turns of thread engagement—if OEM studs aren’t long enough after adding spacer, must replace with extended studs, can’t compromise.

Wheel Back Pocket Check (Bolt-On specific): If installing 15mm or 20mm Bolt-On spacers, OEM studs will protrude from the spacer plane. Must confirm your wheel back has sufficiently deep pockets to accommodate these protruding stud heads, otherwise wheel won’t sit flat and load will concentrate at a few points, creating fracture risk.

  • Measure clearance at rest → Final thickness = Measured value – 3~5mm safety margin
  • Front wheels need full lock steering clearance confirmation (check every angle)
  • Confirm no fender interference when suspension compressed to minimum
  • After installation check thread engagement ≥ 6 turns
  • Use torque wrench to tighten bolts, recheck once after driving

After Determining Thickness, What's Next?

After confirming thickness, next step is picking specific products. At this point need to focus on whether several parameters precisely match: center bore diameter (Center Bore) must match hub, bolt pattern (PCD) must match wheel, Hub Standoff Height also needs confirmation.

If you don’t want to check vehicle parameters line by line yourself, or aren’t sure how to determine certain dimensions, SYZ Machine provides professional purchase wheel spacers custom selection service. Matches specifications directly based on your vehicle model, CNC machining precision ensures every dimension is accurate—thickness, center bore, bolt pattern all error-free.
