Heim Joint Vs. Tie Rod End

Heim Joint or Tie Rod End? We compare durability, articulation, and maintenance needs to help you select the best steering option for your specific off-road project.
Heim joint vs. tie rod end

Heim Joint Vs. Tie Rod End

Choosing between a Heim Joint and a Tie Rod End is one of the most common questions in off-road suspension building. There is no single “best” part. It depends entirely on what the vehicle is used for.

Whether you are sourcing parts for a business or fixing a death wobble in your garage, choosing the right steering joint is key. Today, we will look at the real differences between these two components to help you make the right decision.

The Tie Rod End (TRE): The OEM Standard

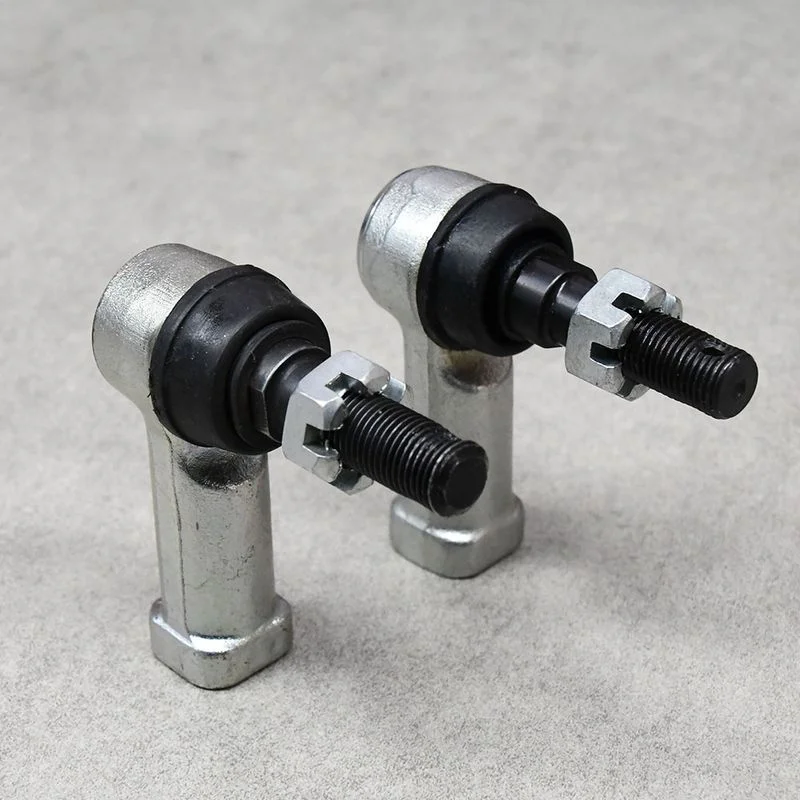

Two tie rod ends standing upright, designed for suspension systems.

The Tie Rod End is what you see on almost every factory vehicle. It is designed for longevity and reliability on the road.

Most TREs use a tapered stud that fits into the steering knuckle. Crucially, they are sealed with a rubber grease boot. This boot keeps grease inside and prevents water, dirt, and salt from getting in.

Why Choose Tie Rod Ends?

  • Low Maintenance: Because they are sealed, you don’t need to clean them constantly. They are excellent for muddy or salty environments.

  • Ride Comfort: TREs are designed to dampen vibrations. They make the steering feel tighter and quieter on the highway.

  • Road Legal: In most places, Tie Rod Ends are the only DOT-compliant option for street-driven cars.

Note on “1-Ton” Upgrades: Many off-roaders upgrade to 1-ton tie rod ends. These are larger, heavy-duty versions originally designed for big trucks (like the GM 1-ton pickup). They offer much higher strength than stock Jeep parts while keeping the benefits of a sealed, maintenance-free joint.

The Heim Joint: The High-Performance Option

The Heim Joint (also called a rod end or spherical bearing) comes from the racing and aviation industries.

It is a simple design: a steel ball rotating inside a metal casing, often with a Teflon liner for lubrication. Unlike a Tie Rod End, it does not have a rubber boot or grease filling. It uses a straight through-bolt instead of a tapered stud.

Why Choose Heim Joints?

  • Maximum Articulation: This is the main reason to use them. When you add high misalignment spacers, a heim joint can pivot much further than a Tie Rod End. If your suspension has long travel, heims prevent binding.

  • Strength: High-quality heims are made from Chromoly steel. They are extremely strong and rigid.

  • Custom Installation: Since they use standard bolts, they are easy to mount anywhere. You can easily move your steering linkage “Over the Knuckle” (OTK) to gain ground clearance without needing special tapered reamers.

Key Differences

Here is how they compare in real-world situations:

1. Maintenance and Durability

  • Tie Rod End: Excellent durability in all weather. The rubber boot protects the joint. It is a “install it and forget it” part.

  • Heim Joint: Requires regular attention. Because they are open, sand and water can get into the bearing. If you don’t clean and lube them, they will wear out faster and start clicking.

2. Steering Feel and Noise (NVH)

  • Tie Rod End: Quiet and smooth. They absorb road shock.

  • Heim Joint: Very direct. Because there is no cushioning, you feel every bump in the steering wheel. As they wear, they can become noisy and loose.

3. Fabrication and Geometry

  • Tie Rod End: Less flexible. You are limited by the tapered hole in your steering knuckle.

  • Heim Joint: Very flexible. You can use them for custom 3-link or 4-link suspensions, hydraulic steering, or custom track bars easily.

4. Quick Comparison Table

FeatureTie Rod End (TRE)Heim Joint
Primary UseDaily Driving / Mixed UseHardcore Off-Road / Racing
MaintenanceLow (Sealed design)High (Open design)
Noise & ComfortQuiet, absorbs vibrationNoisy, direct feel
Articulation AngleLimited (20-30 degrees)High (60+ degrees with spacers)
Weather ResistanceHigh (Good for mud/salt)Low (Prone to wear from grit)
InstallationTapered StudThrough-Bolt
Street LegalYesOften No

Which One Should You Buy?

Stick with Tie Rod Ends (or 1-Ton Upgrades)

  • The vehicle is a daily driver (driven on the street frequently).

  • You live in an area with mud, snow, or road salt.

  • You want a quiet ride with minimal maintenance.

  • You need to pass strict safety inspections.

Switch to Heim Joints

  • The vehicle is a dedicated off-road rig, rock crawler, or UTV.

  • You have a long-travel suspension that binds standard joints.

  • You are building a custom steering setup and need mounting flexibility.

  • You don’t mind performing regular maintenance on your parts.

At SYZ Machine, we provide high-quality components for both types of builds. Whether you need heavy-duty 1-ton tie rod ends for a fleet of trucks or chromoly heim joints for a custom suspension kit, we have the manufacturing capabilities to support you.
