What’s the Difference between ATV and UTV Control Arm?

Discover the key differences between ATV and UTV control arms. From material choices to design, learn how UTV control arms are built to handle tougher terrain, higher loads, and more intense off-road conditions.

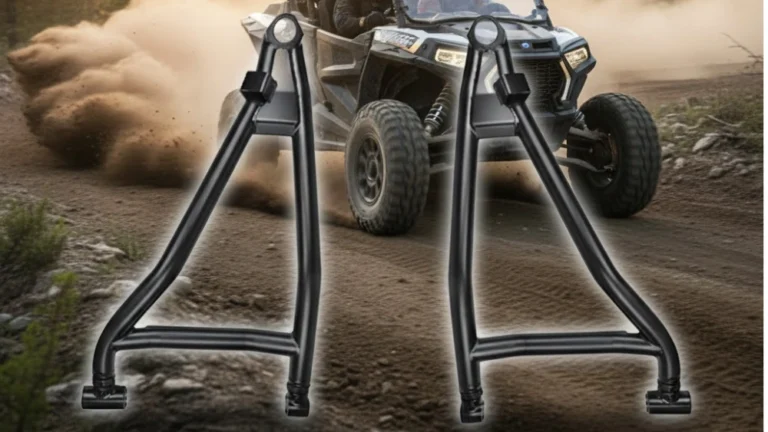

UTV control arm application

What’s the Difference between ATV and UTV Control Arm?

In our previous blog, The Ultimate Guide to ATV Control Arm (A-arm), we covered the functions, materials, types, and components of the ATV control arm. The UTV control arm shares many of these characteristics, but due to design intent, load capacity, and size differences, UTV control arms require significant upgrades. In this post, we’ll dive into these differences in detail.

UTV Control Arm Functions

UTV control arms share many of the same functions as ATV control arms, but due to the UTV’s heavier weight, higher speeds, and more demanding conditions, these functions require more advanced engineering. Here’s a breakdown of the key functions.

1. Controlling Wheel Movement

UTVs have longer suspension travel, so the control arms must guide the wheels through a larger vertical range. This ensures smooth absorption of impacts from high-speed jumps and deep holes.

2. Maintaining Wheel Geometry

UTVs, being heavier and faster, experience more side forces during cornering. The control arms need precise design, often using multi-link systems, to minimize camber changes and maximize tire contact, improving stability.

3. Enhancing Handling and Stability

With their added weight, UTVs experience more body roll at high speeds. The control arms must provide high lateral stiffness, reducing roll and enhancing stability for safer, high-speed off-roading.

4. Providing Off-Road Capability

UTVs tackle more extreme terrain, so control arms must offer greater ground clearance and longer travel to pass over large obstacles while maintaining traction.

5. Absorbing Impact

UTVs face higher impacts due to their weight and speed. Control arms must be made from stronger materials like chromoly steel to efficiently absorb and transfer impact forces to the chassis.

6. Supporting Shocks and Springs

UTVs often use large coil-over shocks. Control arms must offer strong mounting points and optimize the motion ratio to ensure effective damping and a smooth ride on rough terrain.

UTV Control Arm Materials

While ATV control arms are typically made from three materials—carbon steel, 4130 chromoly steel, and aluminum alloy—UTV control arms tend to favor stronger and more specialized materials to handle heavier loads and harsher conditions.

1. 4130 Chromoly Steel

The go-to choice for durability and reliability, chromoly steel is perfect for UTV control arms. It can withstand the heavy loads and intense off-road conditions UTVs face, providing strength and longevity where it’s most needed.

2. Aluminum Alloy

Aluminum is favored when speed and weight savings are a priority. While it sacrifices some durability, it reduces unsprung weight, improving handling and responsiveness. This makes it ideal for those looking to optimize performance without compromising too much on strength.

UTV Control Arm Types

Like ATV control arms, UTV control arms come in three types: Upper and Lower Control Arm, Front and Rear Control Arm, and Adjustable Control Arm. However, UTVs require more robust and precise designs due to their heavy-duty nature and extreme off-road capabilities.

1. Upper and Lower Control Arm

In UTVs, the upper and lower control arms must precisely control wheel geometry throughout the extended suspension travel. The lower control arm (LCA) is particularly crucial—it must be extremely strong to handle vertical and lateral loads while withstanding massive impacts. Additionally, UTV suspensions use the difference in length between the upper and lower arms to control camber changes during compression, maintaining grip during high-speed cornering.

2. Front and Rear Control Arm

The front and rear control arms in UTVs differ more significantly than in ATVs.

Front Control Arm: It must accommodate the complex steering system, including the steering rack and longer tie rods, while optimizing steering precision.

Rear Control Arm: UTVs, typically using rear-wheel or four-wheel drive, require rear control arms to withstand significant driving torque. In high-performance UTVs, the rear suspension often features a multi-link setup, combining a heavy-duty lower control arm (LCA) with multiple radius rods for added strength and control. This makes the rear control arm design much more complex than the front.

3. Adjustable Control Arm

Adjustable control arms are more common and essential in UTVs. As UTV enthusiasts often upgrade to larger tires, install lift kits, or modify their suspensions for long travel, these modifications significantly alter the vehicle’s suspension geometry. Adjustable control arms—typically adjustable-length upper and lower arms or radius rods—allow mechanics and drivers to fine-tune camber and toe angles. This ensures the vehicle maintains proper handling characteristics after modifications and reduces tire wear.

UTV Control Arm Components

Like ATV control arms, UTV control arms consist of key components such as Pivot Blocks, Pivot Bushings, Ball Joints, Shock Mounts, and Sway Bar Mounts. However, due to the higher loads and greater impacts that UTVs face, these components are typically larger and more robust.

Conclusion

UTV control arms are engineered to withstand more extreme demands than ATV control arms. With enhanced strength, precision, and durability, they ensure optimal performance, safety, and stability in demanding off-road conditions, making them a crucial component for any serious UTV enthusiast.

To upgrade your UTV or ATV with high-quality parts, explore our full range of ATV/UTV parts and accessories and enhance your off-road experience.
