Piston Rods

· Direct Manufacturer · No Trading Company

Custom
Piston Rods for Shock & Suspension Systems

Hard chrome plated damper rods and shock shafts engineered for OEM shock absorber manufacturers, coilover brands, and off-road suspension builders. Precision-ground to Ra ≤ 0.2μm. No seal failures, no warranty headaches.

26+
Years Manufacturing
IT6–7
Tolerance Grade
Ra≤0.2
μm Surface Finish
Request Engineering Review
Send your drawings

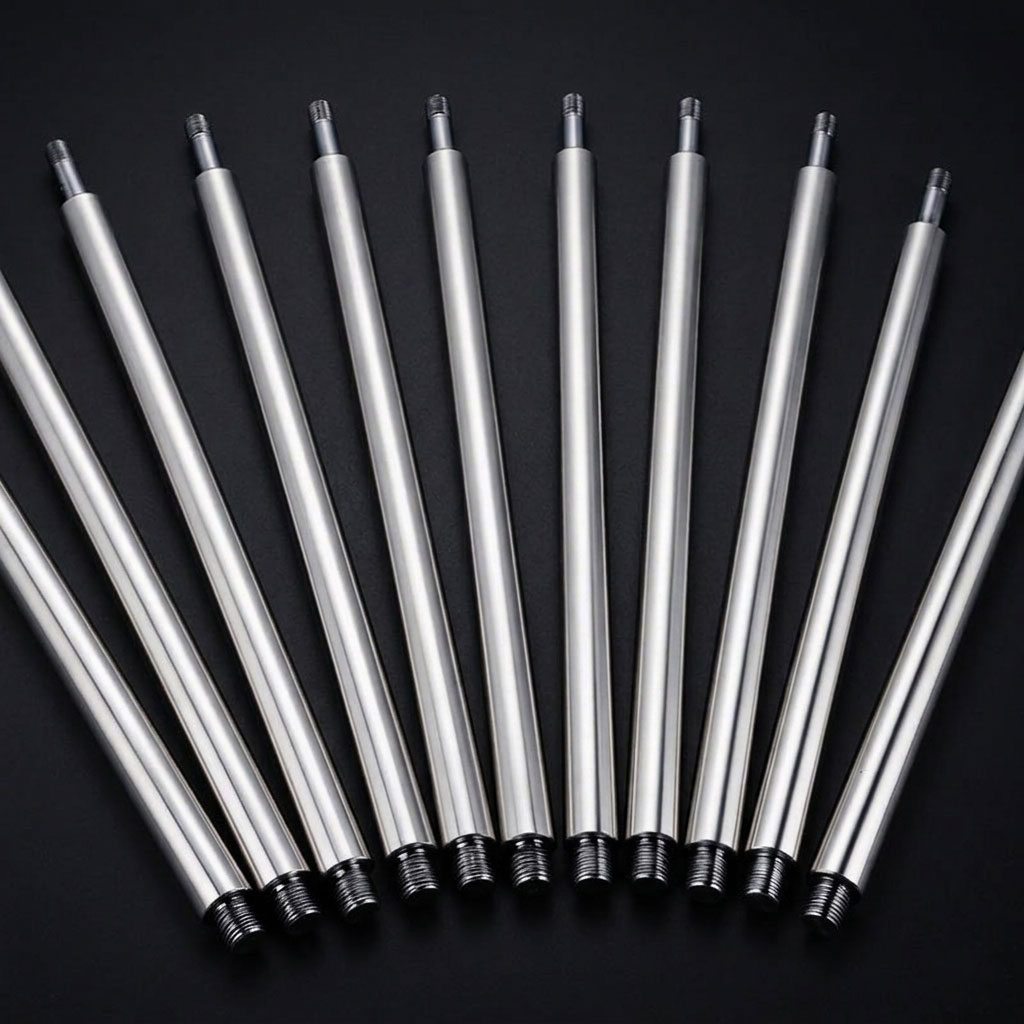

piston-rod-shock-absorbe-component
THE PROBLEM

Are These Quality Problems Killing Your Reputation?

Every piston rod failure traces back to precision gaps in manufacturing. Here’s what happens when you work with the wrong supplier.
💧

Oil Seal Leakage

Rough or uneven chrome surfaces damage dynamic seals prematurely, causing fluid loss and customer complaints within months of installation.

⚠️

Premature Wear

Inadequate chrome adhesion and poor hardness control lead to surface degradation under cyclic load — long before the product’s intended service life.

🔩

Chrome Flaking & Peeling

Without proper chrome thickness control and adhesion testing, plating separates from the substrate and contaminates hydraulic fluid.

📏

Bending Under Load

Incorrect material selection or poor straightness tolerance causes shaft deflection under heavy-duty or off-road conditions.

🔊

Noise & Vibration

Poor concentricity between threads and the seal-contact zone creates micro-misalignment, generating noise and reducing system performance.

📋

Inconsistent Batches

Suppliers without proper in-house grinding and inspection deliver variable quality across batches — making it impossible to maintain assembly consistency.

WHAT WE MAKE

High-Precision Hard Chrome Piston Rods for OEM Suspension

A piston rod — also called a damper rod or shock shaft — is the structural core of every shock absorber. It connects the piston assembly to the upper shock mount, transferring reciprocating motion while maintaining dynamic sealing with oil seals.

Its location inside the shock means every micron of surface finish, every degree of straightness, and every micrometer of chrome thickness directly impacts your product’s performance and longevity.


Stable Chrome Thickness Control15–30μm hard chrome, HV 800–1200, tested for adhesion batch by batch

Ra ≤ 0.2μm Surface FinishPrecision grinding after plating ensures seal compatibility and low-friction operation

Straightness ≤ 0.05mmFixture-verified on every production run to prevent misalignment and noise

OEM Custom Thread & LengthFull drawing-based production — any diameter 12.5–32mm, any thread specification

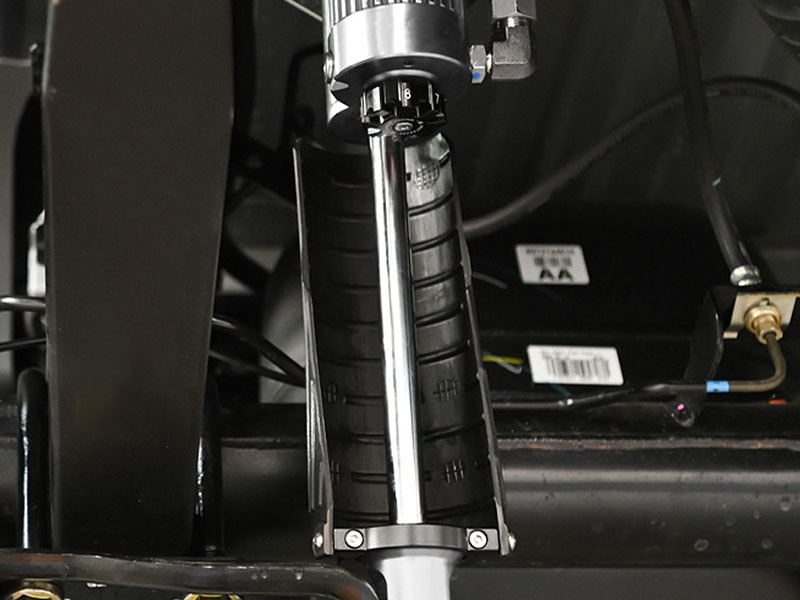

High-Precision Piston Rod

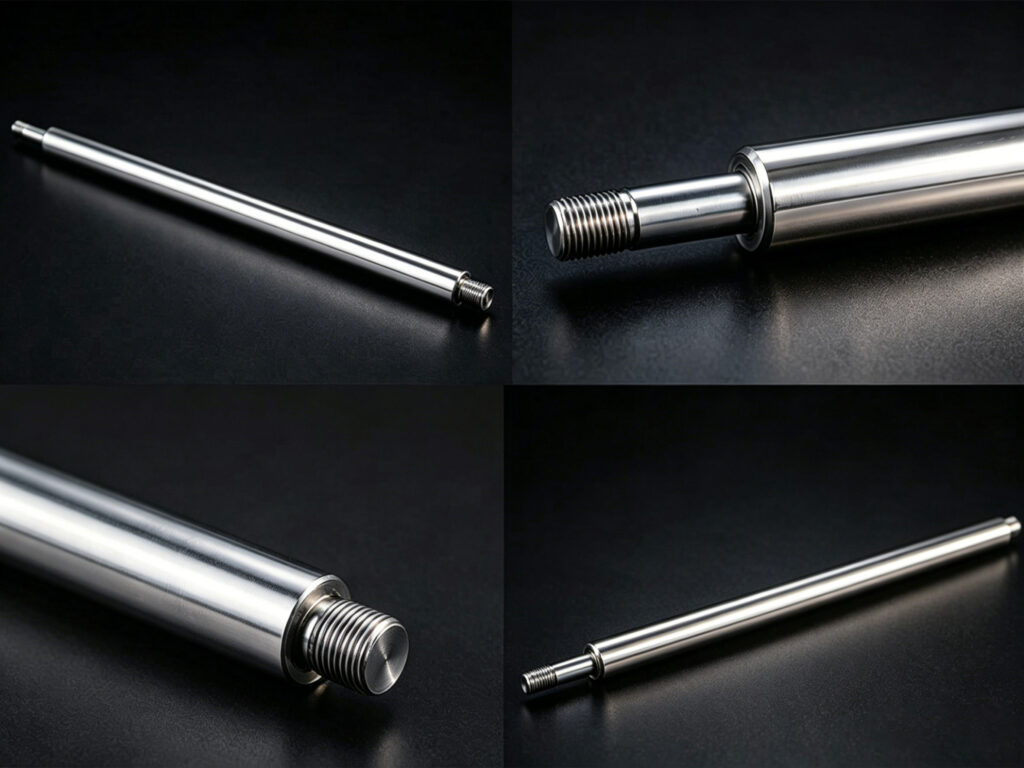

Hard Chrome Piston Rods
SPECIFICATIONS

Technical Specifications & Material Options

Engineering-grade parameters. Material recommendations available based on your load conditions and application environment.
🧱

Material Options

Standard1045 Carbon Steel
Performance4130 Chromoly
CorrosionStainless Steel
Lightweight7075-T6 Aluminum
🔬

Surface Treatment

PrimaryHard Chrome (HV800–1200)
Thickness15–30μm
AlternativeSalt Bath Nitriding
PremiumPVD Coating
📐

Dimensional Controls

Diameter Range12.5 – 32mm
Surface FinishRa ≤ 0.2μm (0.1 available)
Straightness≤ 0.05mm
Tolerance GradeIT6 – IT7
WHY SYZ MACHINE

We Control Performance, Not Just Dimensions

Most suppliers control dimensions. We control functional performance. That’s the difference between a rod that passes inspection and one that never fails in the field.
01

Functional Tolerance Control

Chrome adhesion testing, uniform grinding after plating, thread concentricity control, and seal-contact area optimization — built into every production run, not just inspected at the end.

02

Surface Finish & Seal Compatibility

Rough surface means seal damage means oil leakage. Our controlled grinding process delivers smooth sliding, low friction, and reduced dynamic seal heat — extending seal life by design.

03

High Fatigue Resistance

4130 chromoly material improves structural strength for off-road suspension, heavy-duty ATV, and performance coilovers. Optional salt spray testing validates corrosion resistance.

04

In-House Full Production

CNC turning, precision grinding, surface treatment, thread machining — all coordinated in-house. No outsourced steps that create quality handoff gaps.

05

Batch Inspection Reports

Dimensional report, hardness report, and surface roughness verification available on request. You get the data you need to approve production with confidence.

06

OEM Engineering Support

Send drawings or specifications. Our engineering team reviews material selection, surface treatment, and dimensional requirements — not just passes your order to production.

MANUFACTURING

In-House Production from Bar to Final Grind

We control the entire production process — from raw material selection through CNC turning, plating coordination, and precision grinding. That means no quality gaps, no surprises, and consistent batch results.
  • CNC turning with diameter control to IT6–IT7
  • Precision cylindrical grinding post-plating
  • In-house surface treatment coordination
  • Thread machining with concentricity verification
  • Batch consistency control across production runs
  • Full dimensional & hardness inspection reports on request
📊
Roughness Tester
🔩
Hardness Tester
📏
Straightness Fixture
🔧

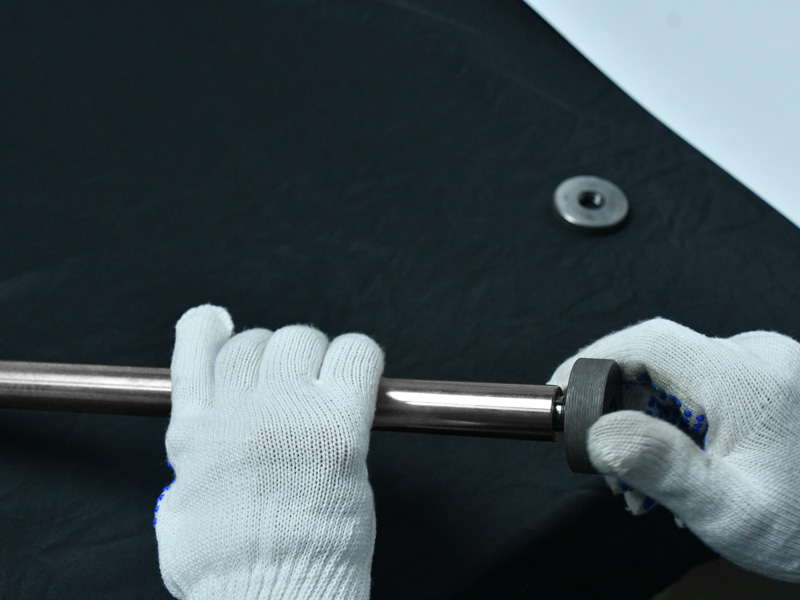

Thread Gauge
🔬
Micrometer & Height Gauge
📋
Batch Reports
Request Technical Quotation
QC-test-report
Industries

Who We Manufacture For

Our piston rods are used across demanding suspension applications worldwide. OEM manufacturing, private label, and drawing-based production supported.

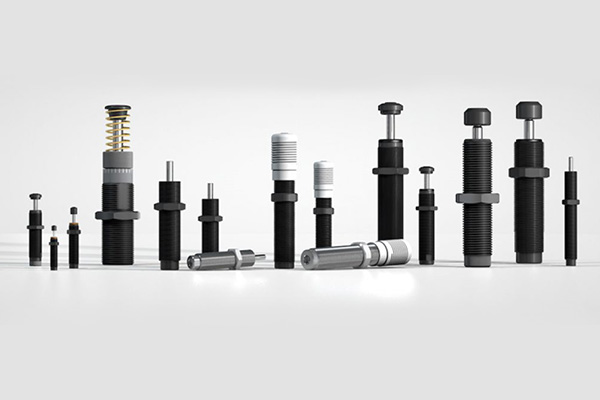

Shock Absorber Manufacturers

Shock Absorber Manufacturers

OEM production runs with consistent chrome quality and dimensional accuracy across large batches.

Coilover System Brands

Coilover System Brands

Performance coilover builders requiring tight surface finish and fatigue resistance for motorsport applications.

Off-Road Suspension Brands

Off-Road Suspension Brands

Heavy-duty shock shafts in 4130 chromoly for off-road conditions requiring maximum bending resistance.

UTV / ATV Manufacturers

Custom diameter and length configurations for UTV and ATV suspension system integration.

Performance Aftermarket Brands

Performance Aftermarket Brands

Private label production for aftermarket suspension brands requiring branded, precision-quality components.

Global OEM Buyers

Global OEM Buyers

Drawing-based production for international procurement teams requiring full inspection documentation.

How We Work

From Drawing to Delivery

A straightforward OEM process built for engineering teams who need fast, accurate responses.

Engineering Review

1

Engineering Review

Our team evaluates material, surface treatment, and dimensional requirements within 24 hours.

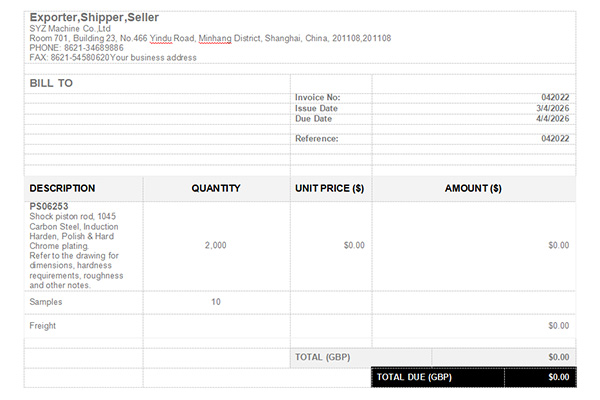

Technical Quotation

2

Technical Quotation

Receive a detailed quotation with MOQ, lead time, and full specification confirmation.

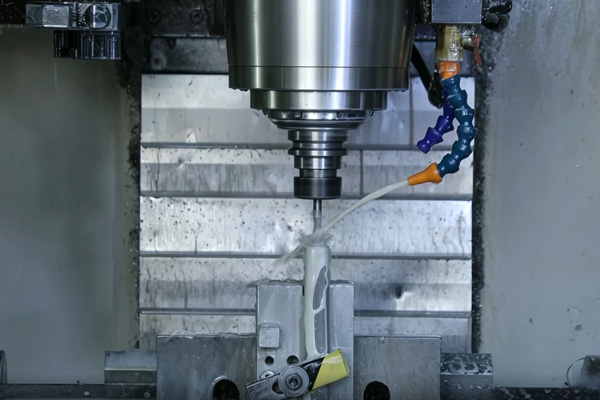

Production Machining​

3

Production & Machining

Precision CNC turning, grinding and thread machining processes ensure dimensional accuracy, straightness control and consistent surface finish for every piston rod.

4

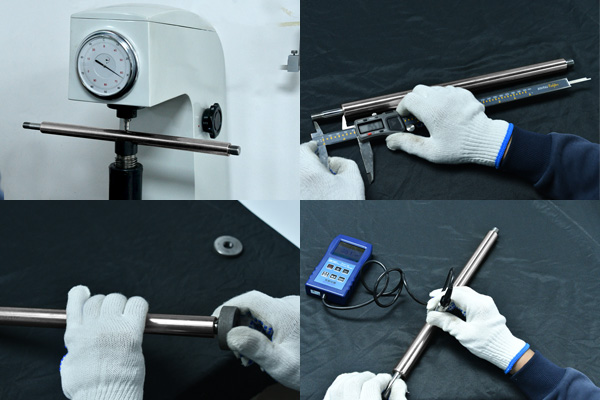

Quality Control (QC)

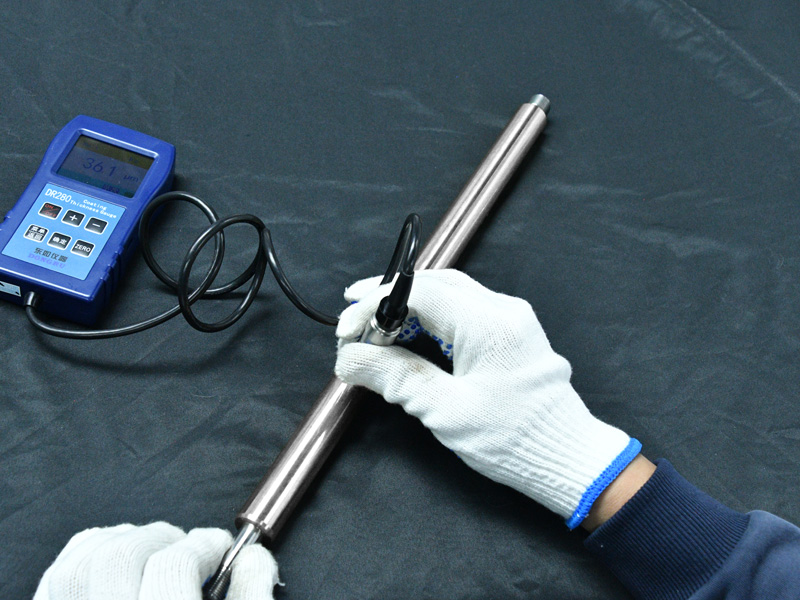

Each piston rod is inspected for surface roughness, hardness, straightness and dimensional accuracy, with inspection reports available before shipment.
FAQ

Frequently Asked Questions

Technical and procurement questions answered directly.
Do you manufacture complete shock absorbers?
No. We specialize in structural and external suspension components only — piston rods, sleeves, bearings, bump stops, mounts, and boots. We do not manufacture hydraulic internal valve systems or assemble complete shock absorber units.
Standard hard chrome plating is controlled at 15–30μm thickness, achieving HV 800–1200 hardness. Chrome adhesion is tested on each production batch. .
Standard production achieves Ra ≤ 0.2μm. A precision version at Ra ≤ 0.1μm is available for applications requiring tighter seal compatibility or lower friction surfaces.
Can you customize thread size and length?
Yes. Production is fully drawing-based. We accept any thread specification, custom length, and diameter within the 12.5–32mm range. Submit your drawings for engineering review.
MOQ depends on the diameter specification and surface treatment process. Contact our engineering team with your drawing for an accurate MOQ and lead time evaluation.
Yes. Dimensional inspection report, hardness report, and surface roughness verification are available upon request for each production batch.
